Electro Voice ZXA1

Description

Electro-Voice engineers have raised the bar for portable sound once again, adding to the award-winning ZX loudspeaker family with the new ZXA1 – the self-powered version of the best-selling ZX1 compact two-way loudspeaker. Launching globally at Winter NAMM 2010, ZXA1 is powered by an 800 watt amplifier module derived from EV’s world-tour-class Tour Grade series – amplifiers with audio quality and reliability proven at the very highest levels.

• Designed for Club Sound, Concert Sound, House of Worship, and other applications.
• Integrated 800 watt power amplifier
• Biamplified design with transducer protection
• EV8L 8” high-output LF transducer
• DH2005 1” exit true compression driver
• 90° x 50° coverage pattern
• Rotatable horn design
• 123 dB maximum SPL
• Selectable high-pass filter for use with subwoofers
• Line and microphone inputs

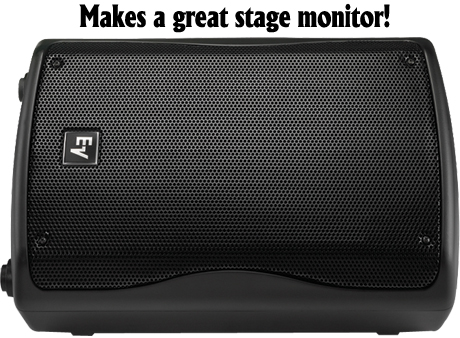

• Integral monitor angle on enclosure
• Built-in pole mount
• Lightweight (< 20 lbs) with integral handle for easy carrying

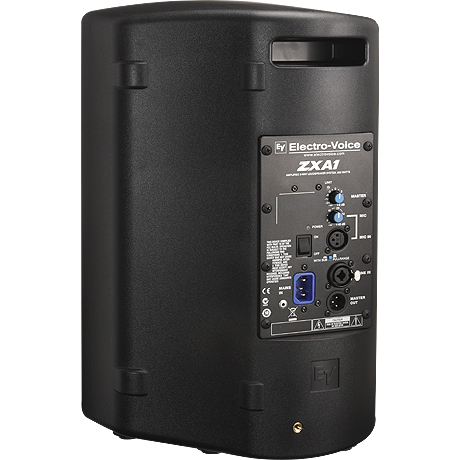

• Input Connections: XLR and TRS Combo; XLR with Independent Gain
• Power Requirement: 120V: 95V - 132V, 50 - 60 Hz, 0.6A; 230V:190V - 264V, 50 - 60 Hz, 0.4A
• Frequency Response: (-3 dB) 60 Hz - 20 kHz Hz Full Range Mode
• Frequency Response: (-10 dB) 48 Hz - 20 kHz Hz Full Range Mode
• Recommended High-Pass Frequency: 100 Hz User Selectable
• Max. SPL/1m: (calc) 123 dB
• LF Transducer: EV8L, 203mm (8 in) Driver
• HF Transducer: DH2005, 25mm (1 in) Exit Compression Driver
• Crossover Frequency: 1800 Hz
• Enclosure Material: High Impact Polystyrene
• Grill: Polyester Powder Coated, 18GA Galvanized Steel
• Height: 457 mm (17.99")
• Width: 282 mm (11.1")
• Depth: 264 mm (10.39")
• Weight Net: 8.62 kg (19 lbs)
• Shipping Weight: 10.3 kg (22.7 lbs)
