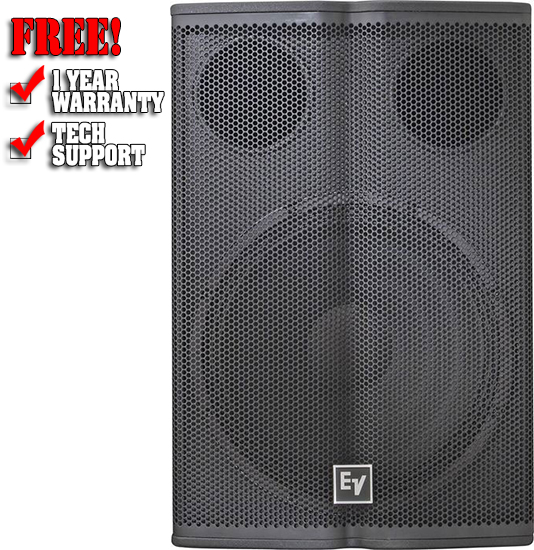

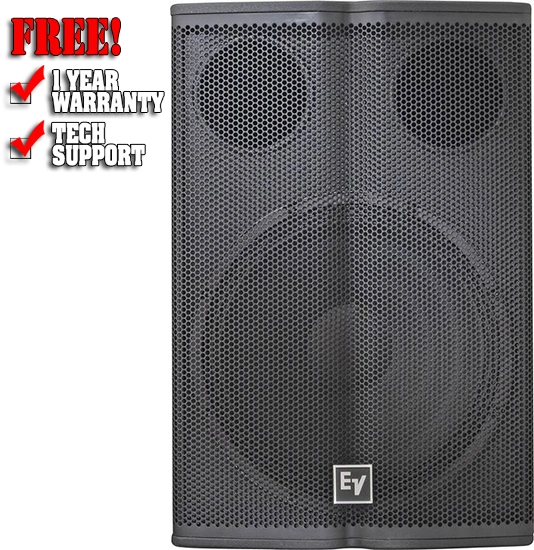

Electro Voice Tour X TX1181

Description

The Electro-Voice TX1181 is a high power subwoofer that can be used to extend the low frequency performance of the TX1122 and TX1152 loudspeaker systems. The TX1181 uses the EVS-18S a high excursion 18" woofer coupled to well-braced enclosure with large low distortion ports to add high-impact bass response to any fullrange loudspeaker. An integrated low pass filter allows the TX1181 to be connected in parallel with a TX1122 or TX1152 on a single amplifier channel eliminating the need for additional amplifier channels and processing. The TX1181 has many features that make it a versatile subwoofer system. The enclosure is constructed out of a combination of MDF and plywood and coated with EVCoat for maximum strength and durability. The unique grille design is very strong dent resistant and features a rotatable logo. Four-way handles allow for gripping the TX1181 in a variety of positions. The recessed input panel with dual NL4 connectors keeps the connectors hidden and allows for closer placement to a wall or other boundary. An integrated pole mount allows for elevating a TX1122 or TX1152 and integrated mounting points on the rear of the enclosure allow the optional TX-W1 wheel kit to be attached for easy portability.

Electro-Voice TX1181 Tour-X Single 18 IN Subwoofer Specifications:

• Freq. response (-3 dB): 50Hz - 160Hz
• Freq. range (-10 dB): 45Hz - 700Hz
• Rec. hi-pass frequency: 30Hz
• Axial sensitivity: 100dB (1W/1m)
• Max. calculated SPL: 132dB
• Horizontal coverage: Omnidirectional
• Vertical coverage: Omnidirectional
• Power handling: 500W continuous 2000W peak
• LF transducer: EVS-18S 18" (457mm) driver
• Nominal impedance: 8 Ohms
• Minimum impedance: 7.5 Ohms
• Connectors: (2) Neutrik Speakon NL4's
• Enclosure material: plywood and MDF with EVCoat
• Grille: 16 GA steel black powdercoat with rotatable logo
• Dimensions (H x W x D): 30.3" x 20.0" x 23.3" (769mm x 508mm x 591mm)
• Net weight: 74.5 lbs (33.8 kg)
• Shipping weight: 88.0 lbs (40.0 kg)

Electro-Voice TX1181 Tour-X Single 18 IN Subwoofer Features:

• Single 18" direct-radiating
• EVS-18S 18" (457mm) LF transducer
• 100dB sensitivity 132dB maximum SPL
• Integrated low pass filter with 6dB/octave slope
• 500W continuous 2000W peak power handling
• Pole mount to elevate a two-way loudspeaker
• Mounting points to attach optional TX-W1 wheel kit
