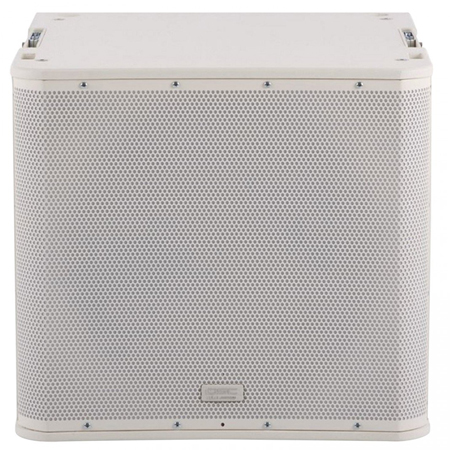

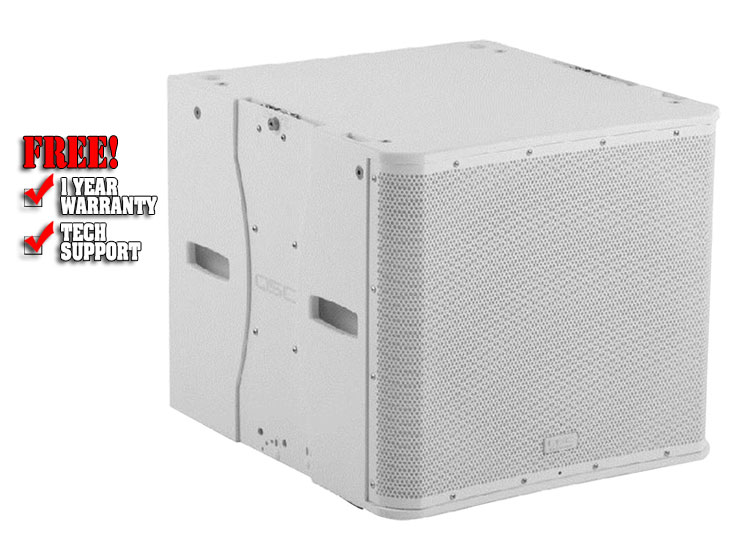

QSC KLA181-WH 18" Active Flying Subwoofer in White

KLA Power Module

The KLA Series is comprised of two models, the KLA12 12-inch, 2-way loudspeaker and the KLA181 18-inch subwoofer. The KLA12 features a highly efficient 500 watt by 500 watt power amp module and the KLA181 offers the same highly efficient power amp module in a 1,000 watt configuration. This efficient design enables up to five KLA models (any combination of KLA12 and KLA181) to be driven off of a single 15 amp, 120 volt electrical circuit.

KLA loudspeakers incorporate QSC's DEEP™ DSP algorithm - providing extended bass response by actively managing potentially damaging low-frequency transients - and GuardRail™ circuitry protection which prevents the amplifier module from unnatural and destructive clipping.

As an energy saving feature, the Auto Standby mode automatically engages after five minutes of inactivity but upon resumption of audio signal, the power module on the KLA will awaken instantly for immediate output.

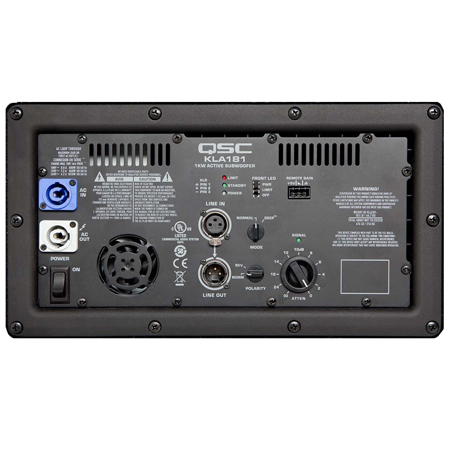

In an installed application, multiple KLA Series loudspeakers can be "daisy-chained" for total gain control from a single remote pot wired to the on-board Phoenix-style connector. Additional power module characteristics on KLA include a balanced, line-level XLR input in parallel with an XLR "Thru" connector, PowerCon™ In and Thru connectors, Attenuation Control and LED indicators for Signal, Limit, Power and Standby status.

KLA181 Features:

• 1,000 watt power module
• 18" vented subwoofer
• High acoustic output (135 dB SPL peak)
• Frequency range down to 33 Hz (-10 dB)
• Extensive DSP further enhances and protects performance
• powerCON® Input and Thru connections
• Threaded pole receptacle for free-standing applications (black models only)
• Suspension made possible via M10 fittings or KLA12AF Array Frame
• Integrated threaded pole mount supports up to two KLA12 enclosures (black models only)

Please note:

The KLA 181-WH / KLA 181 White model does not feature a threaded pole receptacle/Speaker pole mount. This option is only available on Black models

QSC KLA181 Specifications

KLA Series

• SPECIFICATIONS : KLA181
• Configuration : 18" subwoofer
• Transducers, High Frequency, Low Frequency : 18" cone transducer
• Frequency Response (-6 dB) : 38 Hz
• Frequency Range (-10 dB) : 33 Hz
• Nominal Coverage :-
• Maximum SPL (1 meter) : 135 dB peak

Amplifiers

• Power Output : 1000 W Class D continuous
• Input Impedance (ohms) : XLR: 40k balanced / 20k unbalanced
• Controls : Power, Attenuation, LF Mode (Normal/DEEP™), Polarity (Normal/Reverse), Front LED (Pwr/Limit/Off)
• Indicators : Power, Signal, Standby, Limit
• Connectors : Balanced female XLR line level input, Balanced male XLR full range line level out, Remote attenuation control, Locking powerCON power connector AC In, Locking powerCON® power connector AC Out
• Cooling : On demand, 50 mm variable speed fan
• Amplifier Protection : Thermal limiting, output overcurrent, overtemperature muting, GuardRail™
• Transducer Protection : Thermal limiting, excursion limiting
• AC Power Input : Universal power supply 100 - 240 VAC, 50 - 60 Hz
• AC Power Consumption :(1/8 Power) 100 VAC, 2.3 A, 120 VAC, 2.01 A, 230 VAC, 1.13 A

Enclosure

• Material : Painted birch plywood
• Finish : Black or White textured paint
• Grille : Black or White powder coated 16 gauge steel
• Dimensions (HWD) : 21.6" x 23.1" x 25.7", (547mm x 586mm x 633mm)
• Weight (Net) : 100 lb (45.3 kg)
• Available Accessories : KW181 POLE (black models only)

KLA181 Package Contents

• 1.Quick-Start Guide
• 2.Warning Information Sheet
• 3.KLA181 Subwoofer Assembly
• 4.AC powerCON® Power Cord (CEE 7/7), 3.6 Meter
• 5.AC powerCON® Power Cord (NEMA 5-15 - USA style), 12 Foot
• 6.XLR Audio Loop-thru Cable, 3 Foot
• 7.powerCON® Loop-thru Power Cord, 3 Foot
• 8.Hex Key, 6 mm
• 9.Euro-style Connector Plug, 3-pin
