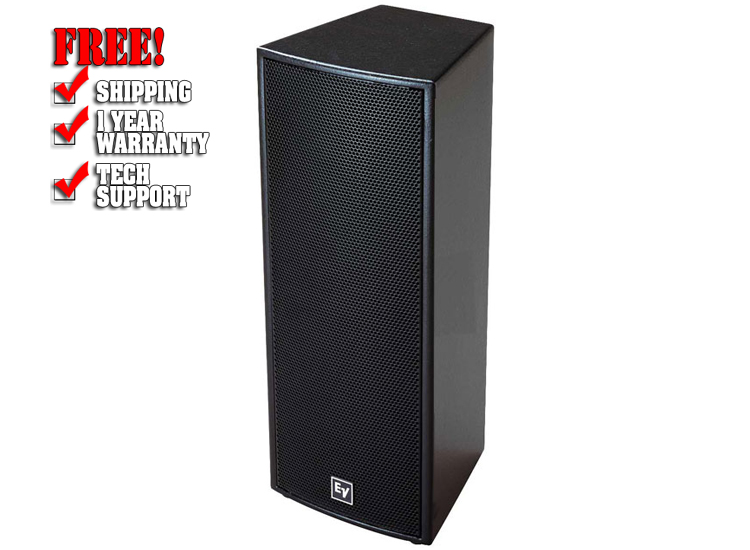

Electro Voice QRx 153/75

Description

The QRx-153/75 is a 15-inch three-way, full-range loudspeaker system requires biamping at 500 Hz and its power handling is 400 -1,600 watts LF and 150 - 600 watts HF. Horn-loaded 8-inch midrange driver is coupled to a asymmetrical 75° x 50° constant-directivity horn and operates from 500 - 1,200 Hz DH7 3-inch voice coil HF compression driver is mounted on an asymmetrical 75° x 50° constant-directivity horn. Concert-proven DL15ST woofer delivers solid bass to 45 Hz in the large vented enclosure Ring-Mode Decoupling delivers pristine vocals and rich, accurate mids and instrument reproduction. The 15 o trapezoidal enclosure is built of void-free, grain-oriented 13-ply Birch plywood finished in Futura, a sprayed-on polyurethane finish that is very rugged. QRx153 comes complete with L-track rigging hardware and single-stud Ancra fittings.

• Frequency Response (-3dB): 43 - 18 Hz
• Frequency Response (-10dB): 42 - 20 Hz
• Max. SPL / 1m (calc): 130 dB
• Coverage (nominal -6dB): H° 75 °
• Coverage (nominal -6dB): V° 50 °
• Rotatable Horn: No
• Low Frequency Power Handling (continuous/program/peak): 400/800/1600 Watts
• Mid/High Frequency Power Handling (continuous/program/peak): 150/300/600 Watts
• LF Transducer: DL15X
• MF Transducer: MF8 8-inch MF
• HF Transducer: DH7 3-inch HF
• LF Nominal Impedance: 8 Ohms
• Color: Black
• Flying: Yes
• Input Connections: Parallel Neutrik® NL4
• Outdoor: No
• Chassis Size: 15 inches
• Internal Crossover: Yes
• Speaker Type: Fullrange, Mid-High, Three-Way
• Weight Net: 103.62 lbs
• Dimensions (HxWxD): 48.82" x 18.39" x 19.09"
