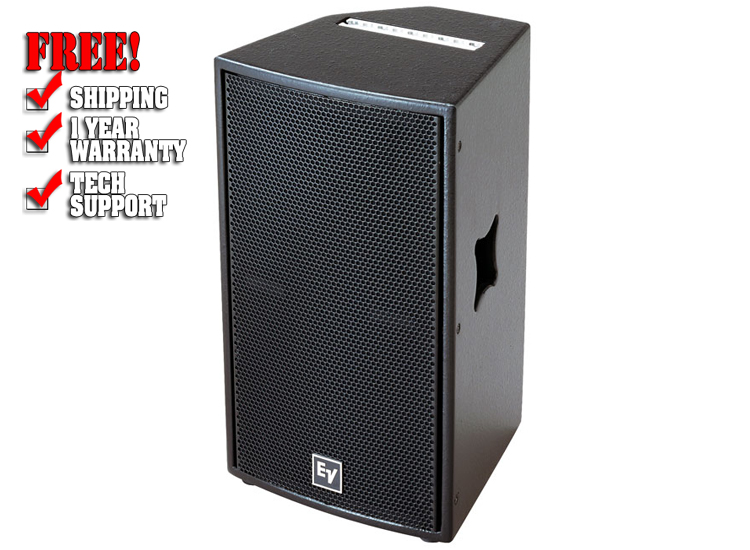

Electro Voice QRx 115/75

Description

15-inch two-way, full-range loudspeaker system with 400 watts continuous, 1,600 watts peak power handling. Can be easily biamped with 400 watts LF and 75 watts HFcontinuous DH73-inch voice coil compression driver on an asymmetrical 75° x 50° fully rotatable constant-directivity horn. In factory-delivered position the horn provides a 15°up/35° down vertical coverage pattern. The fully rotatable horn means that regardless of cabinet position, pattern control is fully user-determined Five-sided cabinet design allows this main PA system cabinet to easily conform to duties as a floor monitor, as a front-of-house system or to be tucked tightly against a ceiling for low-profile applications. Available in black or white. 13-ply, void-free plywood enclosure comes equipped with metal stand mount, L-track rigging on the top and bottom and a single-stud pull-up point on the rear of the enclosure for use flexibility Ring-Mode Decoupling for beautifully detailed vocals and smooth midrange performance.

• Frequency Response (-3dB): 60 - 15000 Hz
• Frequency Response (-10dB): 45 - 16000 Hz
• Sensitivity 1W/1m :98 dB
• Max. SPL / 1m (calc) :130 dB
• Coverage (nominal -6dB) H°: 75 °
• Coverage (nominal -6dB) V°: 50 °
• Rotatable Horn: Yes
• System Power Handling (continuous/program/peak): 400/800/1600 Watts
• Low Frequency Power Handling (continuous/program/peak): 400/800/1600 Watts
• High Frequency Power Handling (continuous/program/peak): 75/150/300 Watts
• LF Transducer: DL15ST
• HF Transducer: DH-7
• Nominal Impedance (Passive): 8 Ohms
• LF Nominal Impedance: 8 Ohms
• HF Nominal Impedance: 8 Ohms
• Color: Black
• Flying: Yes
• Input Connections: Parallel Neutrik® NL4
• Outdoor: No
• Chassis Size: 15 inches
• Internal Crossover: Selectable
• Speaker Type: Fullrange, Mid-High, Two-Way, Wedges
• Weight Net: 70.55 lbs
• Dimensions (HxWxD): 29.88" x 17.72" x 16.02"
