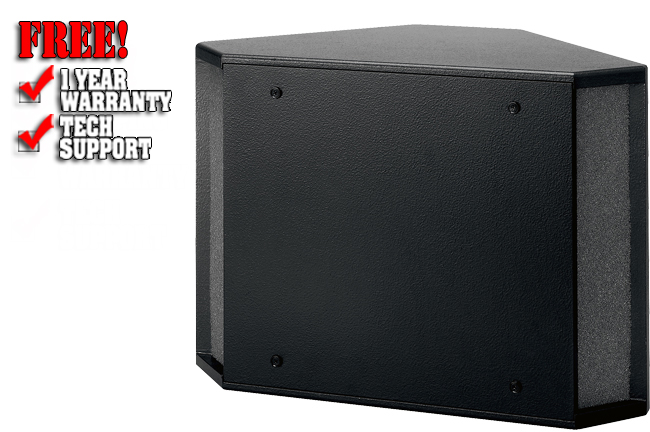

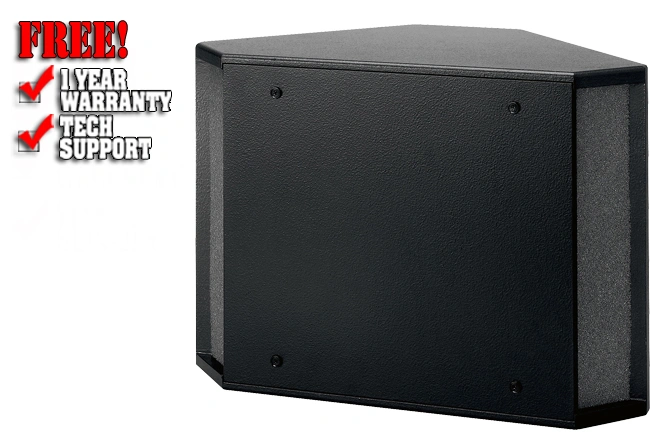

Electro Voice EVID 12.1

Description

The ElectroVoice EVID 12.1 is a passive, surface-mount installation subwoofer featuring a 12" driver, dual voice coils that process both channels of stereo low end information, a 175-Watt per coil power reservoir, and a 160Hz passive crossover.
In addition, the EVID 12.1 can distribute audio for up to four separate satellites, via the four crossed-over audio outputs on the back panel, and may be wall or ceiling mounted with the supplied custom hardware. This provides extended bass performance for installation applications in bars, restaurants, and meeting or event facilities, as a companion to the Electrovoice EVID series of loudspeakers.

• Supplemental bass for indoor systems
• Ideal for sports bars, dance floors, retail, and health clubs
• High-excursion woofer with dual voice coil to accommodate L/R channels
• High sensitivity, high power-handling
• Crossed-over pass-thru for up to four satellite speakers
• Trapezoidal shape for flexible placement
• Steel-reinforced cabinet with mounting hardware included
• Paintable finish
• Chassis Size: 304.8 mm (12")
• Input Connections: Spring Terminal
• Speaker Type: Subs
• Frequency Response: (-10 dB) 40 - 140 Hz
• Internal Crossover: Yes
• Sensitivity: 1 W/1 m 100 dB 1/4 space
• Max. SPL/1m (calc): 128 dB 1/4 space
• System Power Handling: (Continuous/Program/Peak) 175//700 Watts per coil
• LF Transducer: 12-inch
• LF Power Handling: 12-inch Watts
• Nominal Impedance: (Passive) 8 Ω
• Minimum Impedance: 6 Ω
• Flying: Yes
• Outdoor: No
• Height: 412 mm (16.22")
• Width: 584 mm (22.99") at front
• Depth: 305 mm (12.01")
• Weight Net: 18.1 kg (39.9 lbs)
