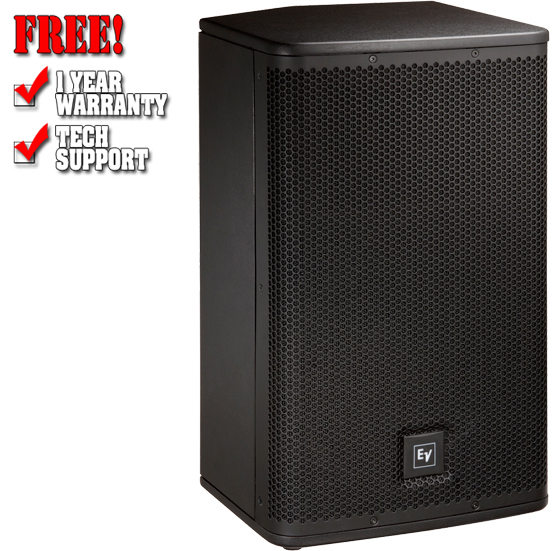

Electro Voice ELX112

Description

The versatile ELX112 loudspeaker is a compact, powerful choice with real stage presence, for sound reinforcement and stage monitoring applications.

• Designed for House of Worship, Pro Music, and other applications.
• 12” woofer and 1.5” high-frequency titanium compression driver
• 55 Hz – 20 kHz frequency range 94 dB SPL sensitivity; 132 dB max SPL
• 250 W continuous and 1000 W peak power handling
• Rugged wood cabinet — pole-mounts or stacks with Live X Subwoofers
• Axial Sensitivity: 94 dB
• Case Material: 9-ply, 15mm Plywood, Internally Braced, with Texured Paint
• Frequency Response: (-3 dB) 82 Hz - 18 k Hz
• Frequency Response: (-10 dB) 55 Hz - 20 k Hz
• Recommended High-Pass Frequency: 45 Hz
• Max. SPL/1m (calc): 132 dB
• Coverage (Nominal -6 dB) H° 90 °
• Coverage (Nominal -6 dB) V° 50 °
• LF Transducer (1) EVS-12K, 305mm (12”) Woofer
• HF Transducer DH-1K, 39mm (1.5”) Titanium Diaphragm Compression Driver
• Crossover Frequency 2.1 k Hz
• Nominal Impedance (Passive) 8 Ω
• Minimum Impedance 7 Ω
• Connector Type Dual NL4
• Grill 18GA Steel with Black Powdercoat
• Height: 23.9"
• Width: 14.25"
• Depth: 13.39"
• Weight: 34.83 lbs
