Electro-Voice PXM-12MP 12 inch Powered Floor Monitor

Low-profile design

Unlike traditional wedges, which require space for both a woofer and HF driver, the PXM-12MP sports a coaxial design to reduce floor space requirements. This helps improve sight lines and stage safety.

Guitar Cab mode

Guitar player? The Electro-Voice PXM-12MP does "FRFR" (Full Range/Flat Response) to support your amp modeler's onboard cab IRs and cabinet emulations. But for players who want to a more traditional response, you can also dial up a Guitar Cab mode within the PXM-12MP's presets. This mode reduces top-end fizz when using amps and modelers without cabinet emulation.

Features:

• Small footprint — perfect for players who pack their own PA gear
• Clean, robust 700-watt Class D internal power amp
• 12" coaxial speaker with coincident HF driver saves space and supplies flat, full-range (64Hz–20kHz, ±3dB) performance feedback
• Guitar Cab mode mimics the response of a traditional guitar cab — perfect for modelers
• 55° monitor angle delivers intelligibility up close or at a distance

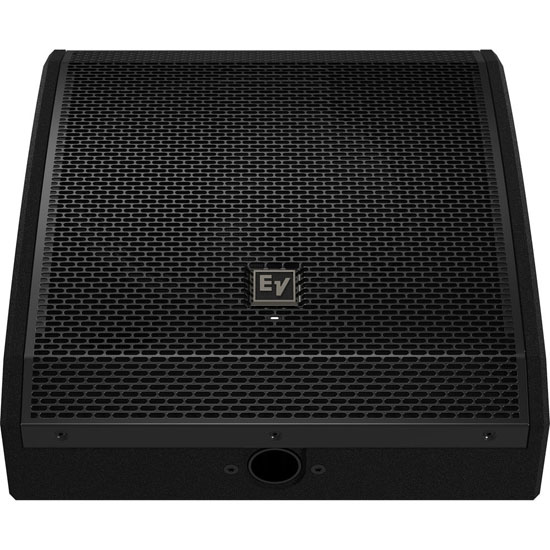

• Rugged steel grille can take a boot without denting
• Doubles as a short-throw mains speaker
• Integrated pole mount for stand use
• 2 Mic/Line combo XLR-1/4" inputs, Stereo RCA
• Onboard DSP gives you five user presets and 3-band EQ

Specifications:

• Type: Floor Monitor
• Powered: Yes
• Power Configuration: Single Amp
• LF Driver Size: 12"
• Total Power: 700W Class D
• Inputs: 2 x XLR-1/4" combo, 1 x Dual RCA Stereo
• Outputs: 2 x XLR (out, thru)
• Frequency Range: 53Hz-20khz (-10 dB)
• Frequency Response: 64Hz-20kHz
• Crossover Frequency: 1.6kHz
• Maximum Peak SPL: 129 dB SPL @ 1m
• Horizontal Coverage Angle: 90°
• Vertical Coverage Angle: 90°
• Enclosure Material: 15mm Plywood
• Mounting Options: Floor Wedge
• Power Source: Standard IEC AC cable
• Height: 13.1"
• Width: 16.1"
• Depth: 19"
• Weight: 29.8 lbs.
