Electro-Voice EVID-S5.2X

5" cabinet 70/100v pair

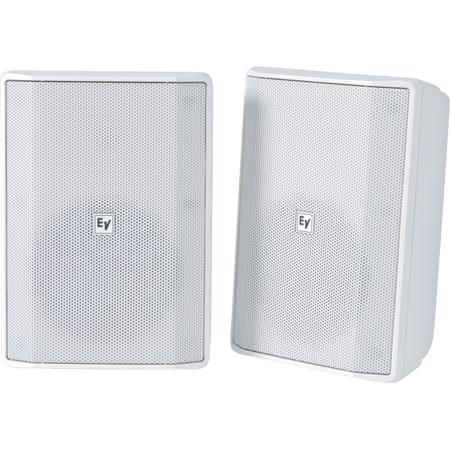

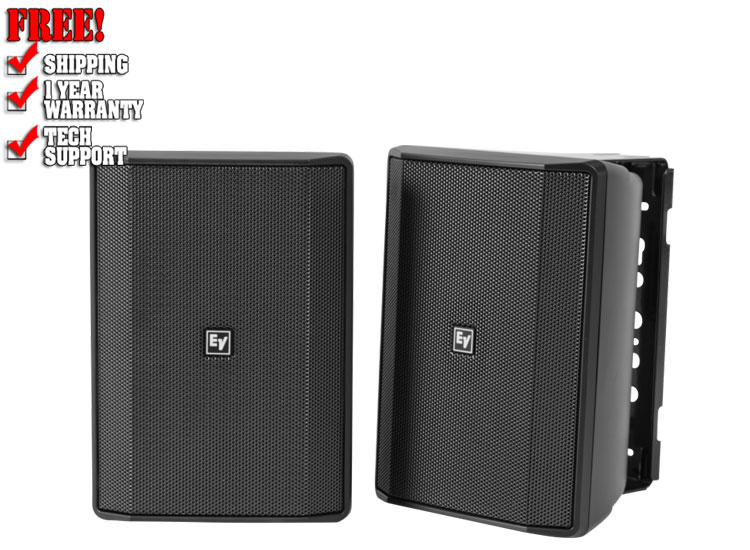

The EVID-S5.2X, from Electro-Voice, is a high-performance, two-way, full-range, 5.25" (133 mm) surface mount speaker with excellent wide, uniform dispersion, and outstanding performance. It is designed for background and foreground music, voice evacuation, paging, and sound reinforcement, and it's ideal for a wide variety of indoor and outdoor applications, such as restaurants, bars, patios, retail, fitness clubs, hospitality, theme parks, leisure venues, and others. With unparalleled ease-of-installation, exceptional weather resistance, modern and delicate look, and its flexible mounting options, the EVID-S5.2X is the perfect solution for a wide variety of surface mount applications.

The EVID-S5.2X is designed to conquer the toughest weather scenarios, raising the bar in weather-proofing technology. With an impressive IP65 rating and a marine-grade aluminum grille, the EVID-S5.2X offers unparalleled protection against sun, salt, and moisture, ensuring unfaltering performance even in the most extreme environments. Whether you require audio reinforcement in coastal areas, poolside settings, or any location where the elements can be unforgiving, the EVID-S5.2X guarantees a premium audio experience that remains uncompromised.

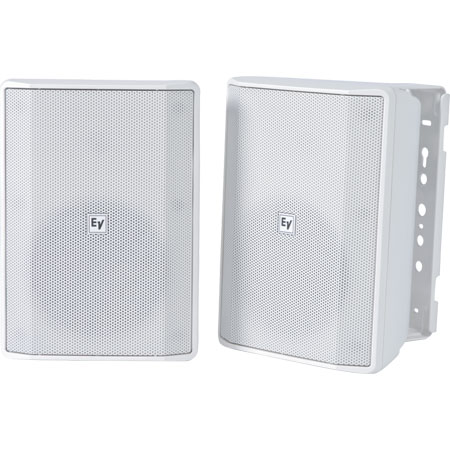

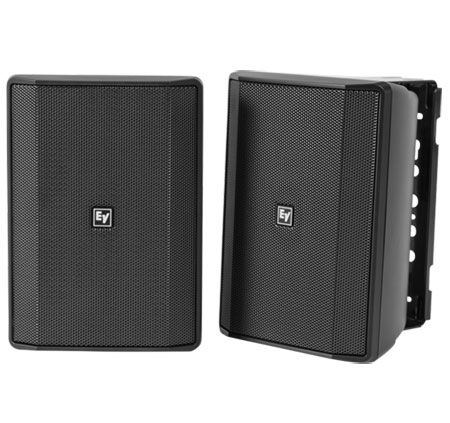

The EVID-S5.2X includes a versatile U-Bracket that has been designed with the installer in mind, allowing for a wide range of installation applications. The U-Bracket allows for 80 degrees of rotation.

The EVID-S5.2X Utilizes a 60W transformer, that offers a selection of 7.5W (70V only), 15W, 30W or 60W delivered to the speaker system using either 70V or 100V lines, or 8Ω bypass for low impedance lines. Selection is done with a convenient switch on the input panel located on the rear of the speaker.

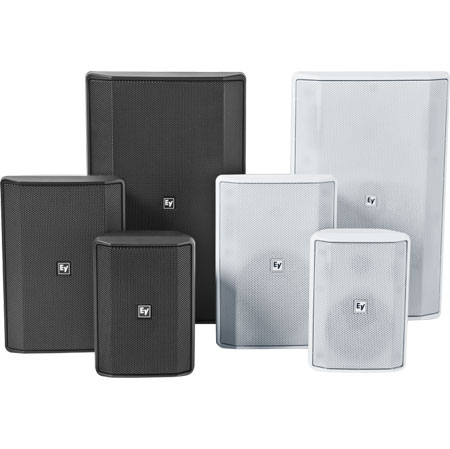

The wide range of EVID surface mount speakers has been designed to work together as a complete system in a variety of different surface mount constructions, and to be used in combination with other EVID ceiling and in-wall speakers.

Features

• Carefully engineered for the toughest weather conditions (IP65)
• Long throw 5.25" (133 mm) woofer housed in a UL 94-5VB fire rated ABS plastic for extended LF performance down to 55 Hz
• 90 W power handling provides for 108 dB maximum SPL (114 dB Peak)
• 60 W transformer with 8Ω pass-through

SPECIFICATIONS

• Frequency Range (-10 dB) 55 Hz - 20 kkHz
• Weatherized Yes
• Minimum Impedance 6Ω
• HF Transducer 0.75 inch (20 mm)
• Frequency Response (-3 dB)¹ 90 Hz - 20Hz
• Max. SPL/1m (calc)² 108dB
• Coverage (Nominal -6 dB) H 90°
• Coverage (Nominal -6 dB) V 90°
• LF Transducer 5.25 inch (122 mm)
• Connector Type Removable locking 4-pin connector (Euroblock) - (2) for connection to additional speakers in a distributed line. Max. wire size 12AWG (2.5 mm)

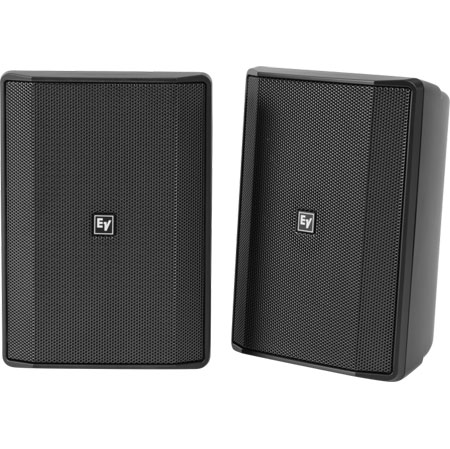

• Available Color Black or White
• Sensitivity 1 W/1 m 90dB
• Height 10.04" (255mm)
• Width 7.09" (180mm)
• Recommended High-Pass Frequency 60Hz
• Depth 5.83" (148mm)
• Weight Net 7.05lbs (3.2kg)
• Shipping Weight 20.94lbs (9.5kg)
• Transformer 70V/100V (60W)
• Environmental Specs IP-65 (per IEC-60529)
• Nominal Impedance 8Ω
