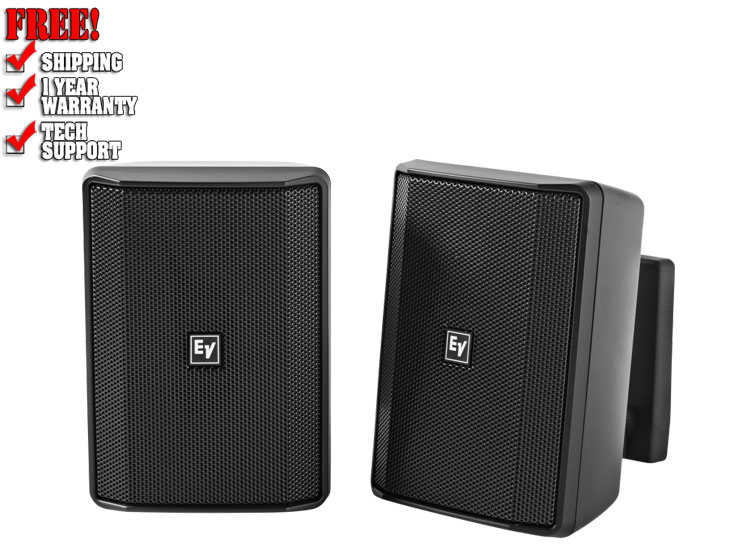

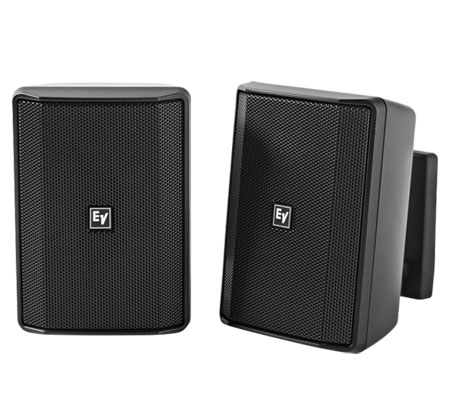

Electro-Voice EVID-S4.2T

4" cabinet 70/100v pair

The EVID-S4.2T, from Electro-Voice, is a highperformance, two-way, full-range, 4" (102 mm) surface mount speaker with excellent wide, uniform coverage, and outstanding performance. It is designed for background and foreground music, paging, and sound reinforcement, and it's ideal for a wide variety of indoor and outdoor applications, such as restaurants, bars, patios, retail, fitness clubs, hospitality, theme parks, leisure venues, and others. With unparalleled ease-of-installation, sturdy weather resistance, modern and delicate look, and it's flexible mounting options, the EVID-S4.2T is the perfect solution for a wide variety of surface mount applications.

The EVID-S4.2T includes the unique and innovative mounting system, from Electro-Voice, making every installation quick, simple, and reliable. The mounting system allows for 90 degrees of rotation horizontally, and 45 degrees of rotation vertically, and it can be easily installed on walls and ceilings. The mounting system comes already assembled and ready to be used, ready to make any job easier.

The EVID-S4.2T utilizes a 15 W transformer, that offers a selection of 3.7 W (70 V only), 7.5 W or 15 W delivered to the speaker system using either 70 V or 100 V lines. Selection is done with a Euroblock connector on the input panel located on the rear of the speaker.

The S4.2T has been carefully engineered to excel in both indoor and outdoor environments. Its superior design strikes the perfect balance between durability and performance, making it an ideal choice for various applications. With an impressive IP54 rating, the S4.2T demonstrates exceptional weather resistance, guarding against sun, salt, and moisture for reliable operation even in challenging outdoor conditions.

For those seeking the ultimate level of resilience, the EVID-S5.2X is designed to conquer the toughest weather scenarios, raising the bar in weather-proofing technology. With an impressive IP65 rating and a marine-grade aluminum grille, the EVID-S5.2X offers unparalleled protection against sun, salt, and moisture, ensuring unfaltering performance even in the most extreme environments. Whether you require audio reinforcement in coastal areas, poolside settings, or any location where the elements can be unforgiving, the EVID-S5.2X guarantees a premium audio experience that remains uncompromised.

Choose the S4.2T for exceptional weather resistance and outstanding performance in a wide range of indoor and outdoor settings. For those who demand the utmost durability and resilience, the EVID-S5.2X stands as the ultimate choice. Our surface mount speaker lineup has you covered, providing reliable solutions for any audio needs, regardless of the conditions.

All EVID-S models are available in black or white, and can be easily painted to match the decor. Transformer versions are also available for constant voltage systems.

The wide range of EVID surface mount speakers has been designed to work together as a complete system in a variety of different surface mount constructions, and to be used in combination with other EVID ceiling and in-wall speakers.

• Innovative mount system is included for quick, simple, and reliable installations
• Carefully engineered for outdoor environments (IP54), without compromising performance
• Long throw 4" (102 mm) woofer housed in a fire rated ABS plastic enclosure for extended LF performance down to 75 Hz

SPECIFICATIONS

• Frequency Range (-10 dB) 75 Hz - 20 kkHz
• Weatherized Yes
• HF Transducer 0.75 inch (20 mm)
• Frequency Response (-3 dB)¹ 100 Hz - 20 kHz
• Max. SPL/1m (calc)² 104.5dB
• Coverage (Nominal -6 dB) H 110°
• LF Transducer 4 inch (102 mm)
• Coverage (Nominal -6 dB) V 110°
• Power Rating 60W
• Connector Type Captive screws on wall bracket. Max. wire size 12AWG (2.5mm).
• Available Color Black or White
• Sensitivity 1 W/1 m 86.5dB
• Recommended High-Pass Frequency 70Hz
• Depth 4.65" (118mm)
• Weight Net 63.49oz (1800g)
• Shipping Weight 11.9lbs (5.4kg)
• Transformer 70V/100V (15W)
• Environmental Specs IP54 (per IEC-60529)
• Power Handling (Continuous / Peak) 15 W/60W
