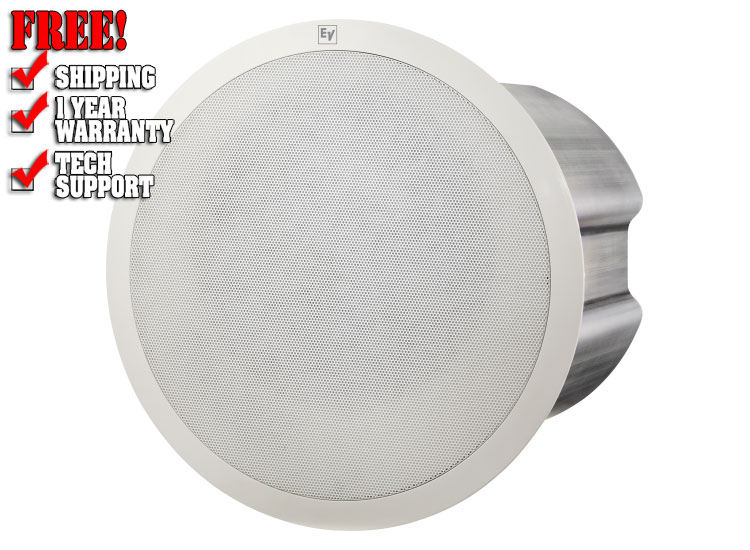

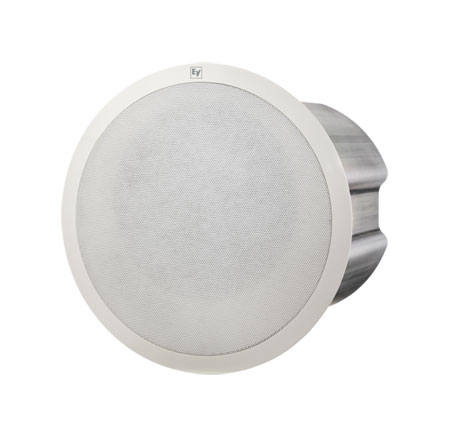

Electro-Voice EVID-PC8.2

8" 2-way ceiling speaker

The PC8.2 (8-inch two-way) is designed to be the most advanced ceiling speaker available today, with superior performance across every detail. Each self-contained unit features a dedicated compression driver for enhanced high-frequency performance and coverage control in comparison to current EVID ceiling speaker offerings. Simplified wiring and innovative new integrated mounting hardware allows for quicker installation into a wide range of ceiling cavities and construction formats.

The model adds increased power handling (100 W), higher output (113 dB / 114 dB), and wider coverage angles (120° / 105°) to the user-friendly installation and low-profile looks that contractors expect from EVID products, complimenting the range as a new, high-end option. Ideal for retail spaces, restaurants, theater and stadium concourses, shopping malls, and a wide range of applications where premium-quality distributed audio is required.

Features

• High-performance EV-engineered compression driver. Ultra-wide HF dispersion provides extremely even coverage through room.

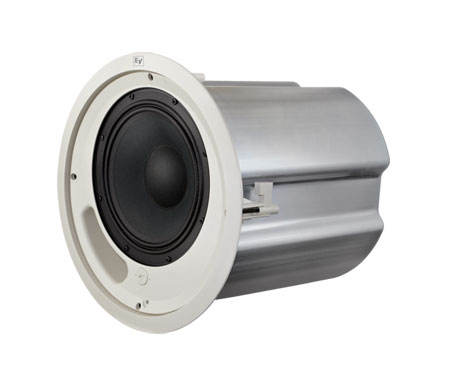

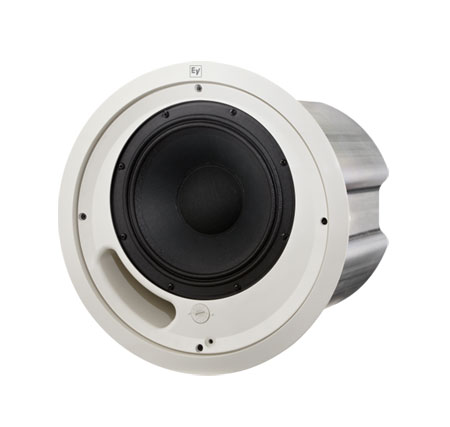

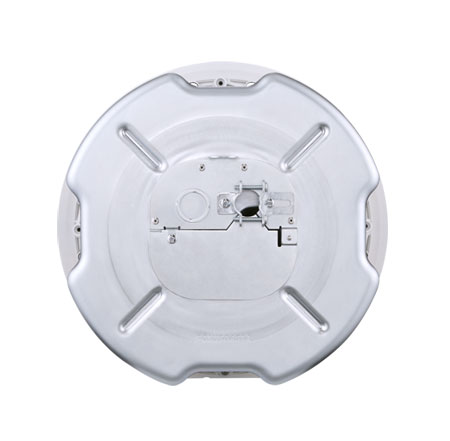

• High-excursion woofer provides dramatic low-end frequency extension. Reinforced steel back can provides rigid enclosure to minimize acoustic loss.
• Four-point clamp mechanism and integrated mounting legs enable quick ceiling installation.

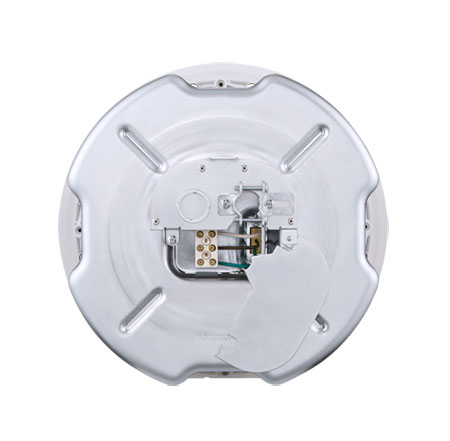

• Detachable pass-thru Phoenix-style signal connections simplify installation wiring. Tap selector with 8Ω / 70 V / 100 V operation.
• Fully reinforced ABS UL-rated baffle ensures long life. Fully compliant with UL 1480, and 2043 standards.

SPECIFICATIONS

• Weatherized No
• HF Transducer 35 mm compression driver
• Frequency Range (-10 dB)¹ 40 - 20kHz
• Max. SPL/1m (calc)² 108 db avg, 114 pkdB
• LF Transducer 200 mm (8 in)
• Power Rating 200W
• HF Power Handling 200W program, 100W pink noiseWatts
• Connector Type Removable locking 4-Pin (Phoenix) 12AWG (2.5 mm) max wire size
• Enclosure Material ABS plastic (UL94V-0) baffle, steel back can
• Grille Color-matched steel grille with fabric
• Sensitivity 1 W/1 m 88dB
• Available Color White
• Height 12.76" (324mm)
• Weight Net 17.64lbs (8kg)
• Shipping Weight 44.6lbs (20.23kg)
• Mounting Systems C ring, tile bridge
• Impedance 8Ω
• Cutout Size 11.59" (294.3mm)
• Regulatory Approvals UL1480; UL2043
• Diameter (Max) 12.87" (327mm)
• Transformer Taps (Transformer Version Only) 70V: 60W, 30W, 15W, 7.5W, 8Ω, 100V: 60W, 30W, 15W, 8Ω
• Coverage (Nominal -6 dB) 100°
