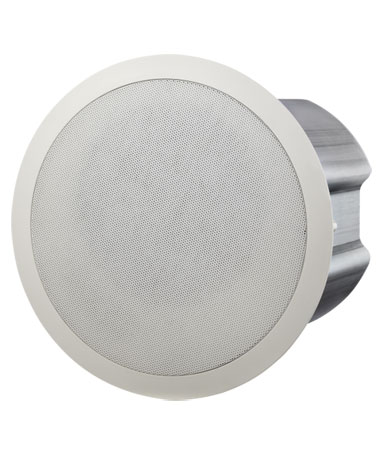

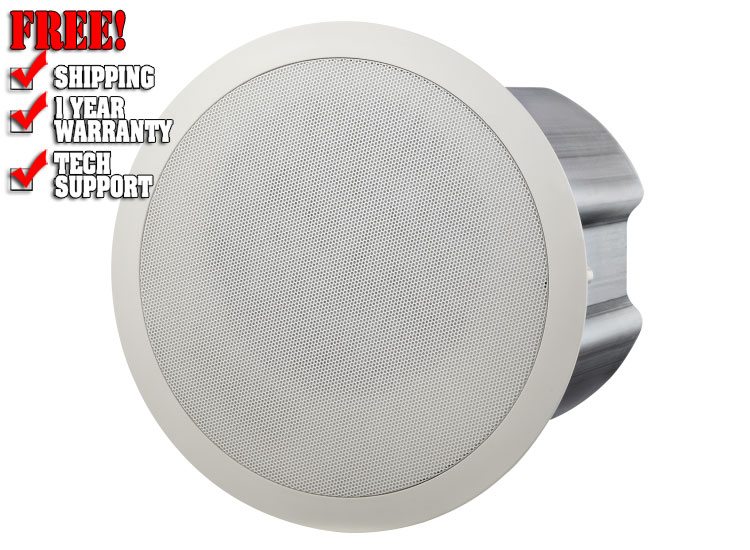

Electro-Voice EVID-PC6.2

6½" 2-way ceiling speaker

The PC6.2 (6.5-inch two-way) is designed to be the most advanced ceiling speaker available today, with superior performance across every detail. Each self-contained unit features a dedicated compression driver for enhanced high-frequency performance and coverage control in comparison to current EVID ceiling speaker offerings. Simplified wiring and innovative new integrated mounting hardware allows for quicker installation into a wide range of ceiling cavities and construction formats.

The model adds increased power handling (100 W), higher output (113 dB / 114 dB), and wider coverage angles (120° / 105°) to the user-friendly installation and low-profile looks that contractors expect from EVID products, complimenting the range as a new, high-end option. Ideal for retail spaces, restaurants, theater and stadium concourses, shopping malls, and a wide range of applications where premium-quality distributed audio is required.

Features

• High-performance EV-engineered compression driver. Ultra-wide HF dispersion provides extremely even coverage through room.

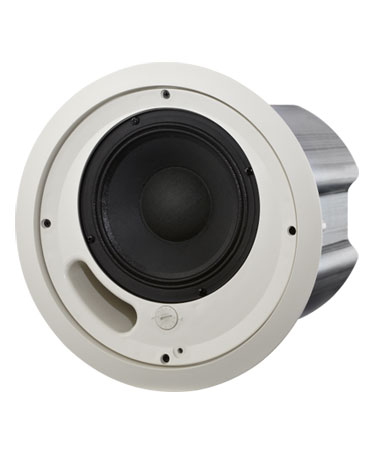

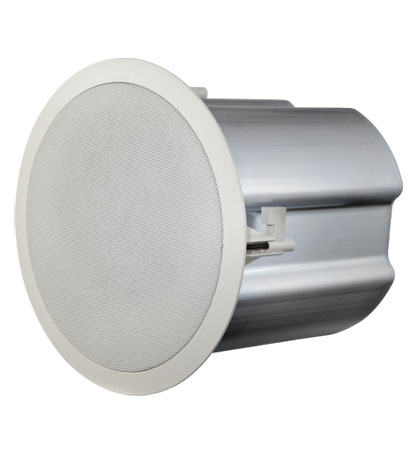

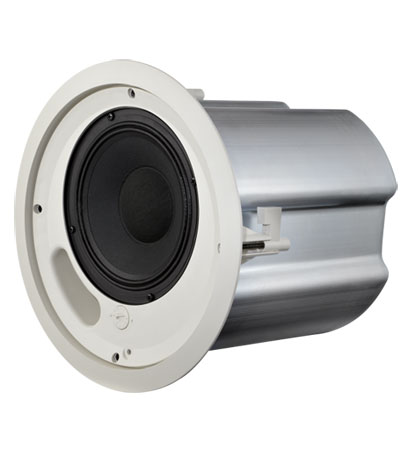

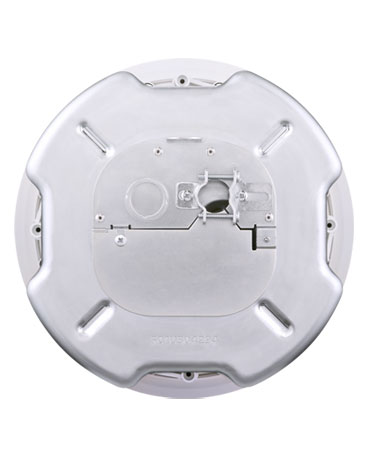

• High-excursion woofer provides dramatic low-end frequency extension. Reinforced steel back can provides rigid enclosure to minimize acoustic loss.
• Four-point clamp mechanism and integrated mounting legs enable quick ceiling installation.
• Detachable pass-thru Phoenix-style signal connections simplify installation wiring. Tap selector with 8Ω / 70 V / 100 V operation.
• Fully reinforced ABS UL-rated baffle ensures long life. Fully compliant with EN 54 (pending), UL 1480, and 2043 standards.

SPECIFICATIONS

• Frequency Range (-10 db) 50 Hz - 20 kHz
• Nominal Coverage (Conical) 100°
• Power Handling 200 W Program, 100 W Pink Noise
• Sensitivity (SPL 1 W/1 m) 87 dB
• Max Calculated SPL 107 dB Avg, 113 dB Peak
• Impedance 10 ohms
• LF Transducer 165 mm (6.5 in)
• HF Transducer 35 mm Compression Driver
• Transformer Taps 70V: 60W, 30W, 15W, 7.5W, 8 ohm
  100V: 60W, 30W, 15W, 8 ohm
• Connectors Removable locking 4-pin (Phoenix)
  2.5 mm (12 AWG) max wire size
• Enclosure ABS Plastic (UL94V-O) Baffle, steel back can
• Grille Color matched steel grille with fabric
• Dimensions (H x Dia) 260 mm x 280 mm (10.2 in x 11.0 in)
• Cutout Size 248 mm (9.76 in)
• Net Weight 7.0 kg (15.4 lb)
• Shipping Weight(pair) 16.83 kg (37.1 lb)
• Support Hardware C Ring, Tile Bridge
• Approvals UL1480, 2043; CE
