Electro-Voice EVID C8.2LPW

8-inch Low-profile Coaxial Ceiling Install Speaker (Pair) - White

The Electro-Voice EVID C8.2LP is a great solution for delivering top-notch audio reproduction in shopping malls, sports bars, and health clubs. This low-profile, 2-way install speaker boasts an 8-inch woofer and an integrated ported enclosure that yield bass extension down to 50Hz, plus a 1-inch waveguide-coupled titanium tweeter that offers crisp high-frequency sound and excellent vocal intelligibility. The EVID C8.2LP exhibits 110-degree conical coverage, ensuring that everyone in the room hears high-quality sound. Benefit from full-bandwidth overload protection, plus combined 70-volt/100-volt and low-impedance operation for super-versatile operation. The EVID C8.2LP's included tile bridge and mounting ring - they make installation a breeze. If you're looking for a great-sounding speaker that fits into super-tight ceiling spaces, the Electro-Voice EVID C8.2LP will make you very, very happy.

Features

• 300-watt, 8-ohm full-range install speaker with low-profile enclosure
• 8-inch woofer and integrated ported enclosure yield bass extension down to 50Hz
• 1-inch waveguide-coupled titanium tweeter offers crisp high-frequency sound and excellent vocal intelligibility
• 110-degree conical coverage ensures that everyone in the room hears high-quality sound
• Full-bandwidth overload protection safeguards against excessive volume levels
• Combined 70-volt/100-volt and low-impedance operation for added versatility

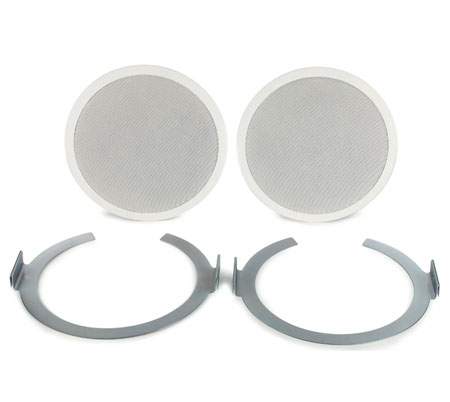

• Tile bridge and mounting ring for easy installation
• Great for shopping malls, sports bars, and health clubs

SPECIFICATIONS

• Powered: No
• Power Configuration: 2-way
• Quantity: Pair
• LF Driver Size: 1 x 8" Polypropylene cone
• HF Driver Size: 1" Ti Mylar laminate
• Total Power: 75W Continuous, 300W Peak
• 70V/100V Output: 70V/100V: 30W, 15W, 7.5W, 3.75W, 1.88W (70V only)
• Impedance: 8 ohms
• Inputs: Phoenix-style
• Frequency Range: 50Hz-20kHz (-10 dB)
• Crossover Frequency: 12 dB/octave @ 2600Hz
• Maximum Peak SPL: 91 dB SPL @ 1m
• Enclosure Material: Zinc-plated Steel
• Application: Indoor
• Mounting Options: In-ceiling
• Height: 7"
• Width: 10.6"
• Weight: 11 lbs.
