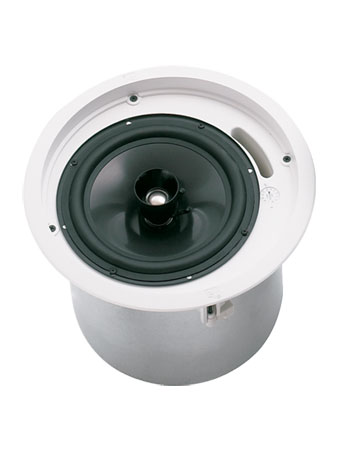

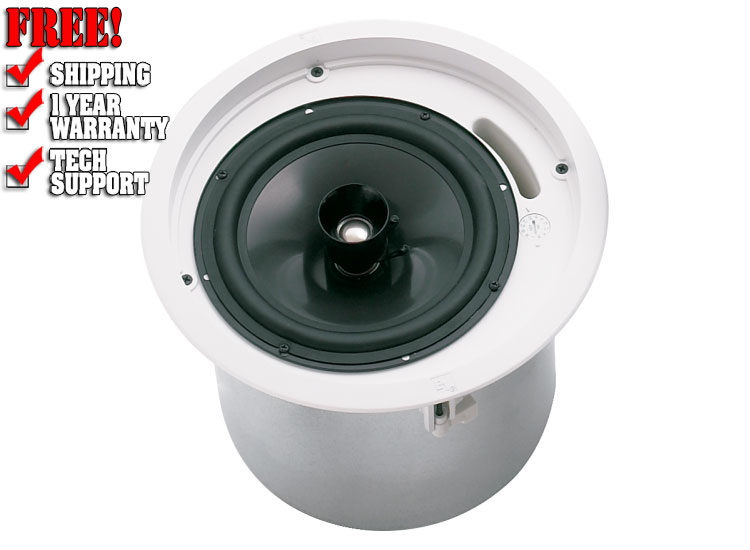

Electro-Voice EVID C8.2LP

The low profile enclosure makes it easy to mount in tight spaces.

A rear cover, with provisions for a junction box fitting, provides access to a 4-pin terminal block that allows direct connection to the speaker with 12 gauge wire and provides pass through to additional speakers. A tile bridge is included for safe suspension of the C8.2LP ceiling systems in a drop ceiling that uses mineral wool, or other fiber-based ceiling tiles. The EVID line of ceiling speakers has been designed to work together as a complete system in a wide range of different ceiling constructions. They provide wide dispersion, high-efficiency, high-maximum output, ease of installation, and wide-range reproduction of music or voice.

Features

• Low Profile 8" coaxial two-way
• Waveguide coupled Ti Tweeter
• Full bandwidth overload protection
• Front baffle wattage tap adjustment
• Integrated low loss matching transformer allows for either 70v/100v or 8-ohm operation
• Includes tile bridge and mounting ring for easy installation
• Integrated ported enclosure for extended bass response
• Ideal for ceiling spaces with tight clearance UL and CE listed

SPECIFICATIONS

• Max Calculated SPL 60 watt Transformer coupled @ 4 meters: 92 dB 100 watt Direct coupled @ 4 meters: 95 dBdB
• HF Transducer 1 in (25 mm) Ti Mylar laminate
• LF Transducer 8 in. (200 mm) Polypropylene cone
• Grille Perforated powder coated steel wit safety tether
• Coverage (Conical) 110°
• Power Handling 75 W Cont. / 300 W Peak
• Sensitivity (SPL 1W/1m) 91 dB
• Network Network and transducers protected 12 dB/oct 2.6 kHz
• Safety Agency Ratings UL 1480 Safe for use in air handling spaces per UL 2043
• Impedance 8 Ohms nominal (transformer bypass)
• Transformer Taps 70V: 1.88, 3.75, 7.5, 15 or 30 100V: 3.75, 7.5, 15 or 30W Bypass: 8 Ohms
• Connectors Phoenix type removable, with scre terminals and "loop-thru", accepts 12 ga wire
• Enclosure Baffle- UL 94V-O rated AB Backcan-Zinc plated steel
• Dimensions (H x Dia) 7.0" x 10.6 (178mm x 270mm)
• Cutout Size 10.75" (272mm)
• Net Weight 11.0 lbs (5.0 kg)
• Shipping Weight:(pair) 24.0 lbs (11.0 kg)
• Support Hardware Tile bridge, backing plate support cutout template, paint shield
• Freq. Response (-10 dB) 50 Hz - 20 kHzdb
