Electro-Voice EVID-C6.2

Ceiling speaker 6.5" white

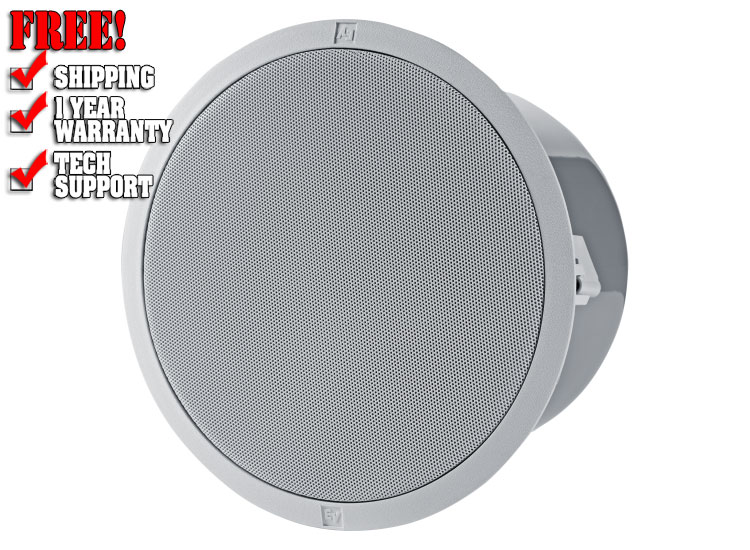

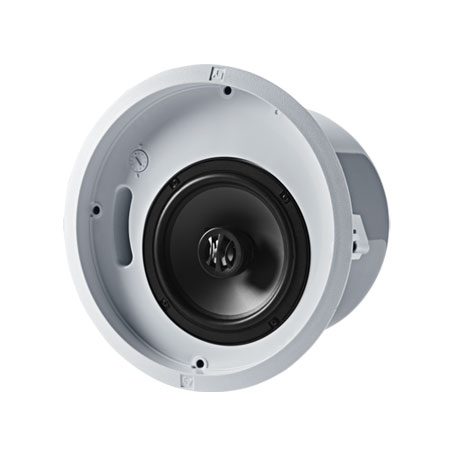

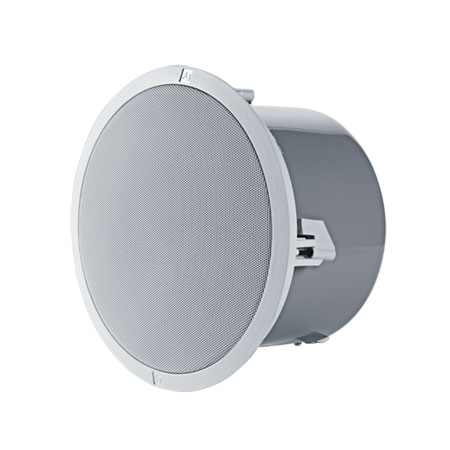

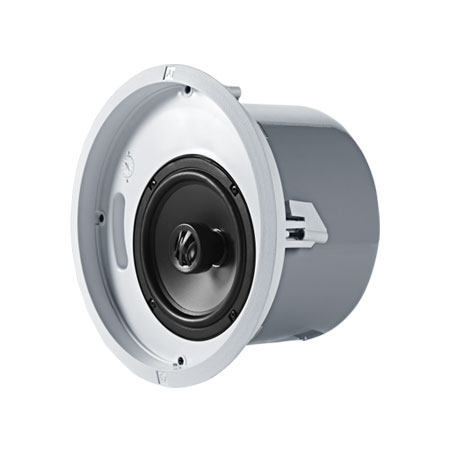

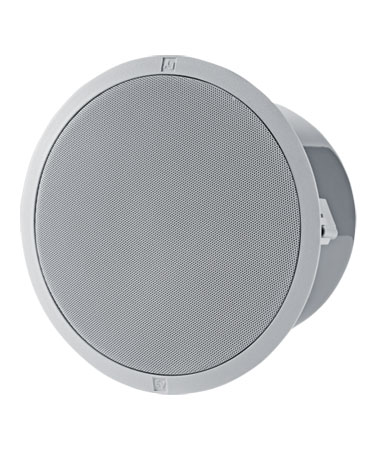

The Electro-Voice EVID-C6.2 loudspeaker system is a complete two-way ceiling loudspeaker. The package consists of a bezel assembly, grille, rear enclosure, 6.5-inch coax two-way loudspeaker and internal linematching transformer. The loudspeaker features a waveguide coupled titanium coated dome tweeter. The EVID-C6.2 loudspeaker utilizes a 2nd order crossover network at 2.5 kHz, with a comprehensive protection circuit to protect the network, woofer, and tweeter drivers from excessive power levels. The EVID-C6.2 utilizes a transformer that offers a selection of 1.88 (70-V only), 3.75, 7.5, 15W or 30 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8 ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle and bezel are constructed from UL 94V-0 rated ABS.

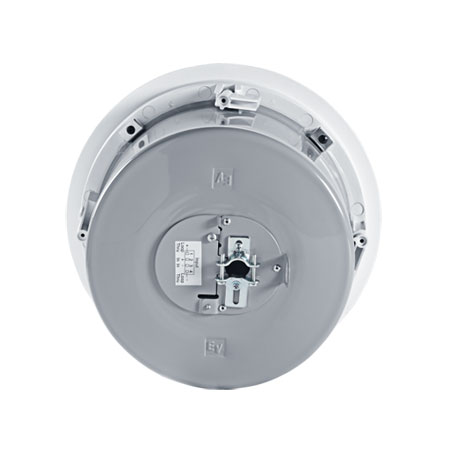

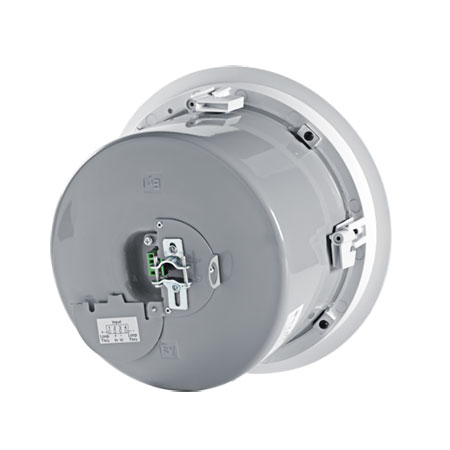

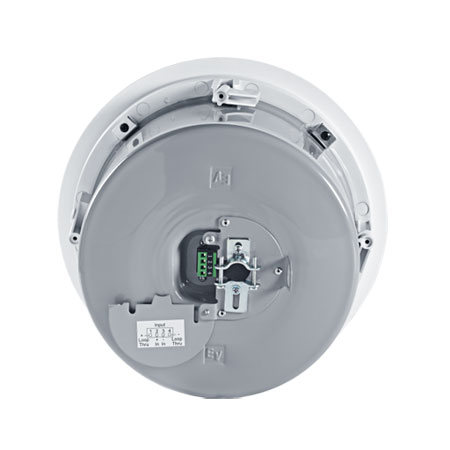

The rear enclosure is constructed from zinc-plated, heavy gauge steel. The low profile enclosure makes it easy to mount in very tight spaces. A rear cover, with provisions for a junction box fitting, provides access to a 4-pin terminal block that allows direct connection to the speaker with 12 gauge wire and provides pass through to additional speakers. A tile bridge is included for safe suspension of the EVID-C6.2 ceiling systems in a drop ceiling that uses mineral wool, or other fiber-based ceiling tiles. The EVID line of ceiling speakers has been designed to work together as a complete system in a wide range of different ceiling constructions. They provide wide dispersion, highefficiency, high-maximum output, ease of installation, and wide-range reproduction of music or voice.

Features

• Full bandwidth overload protection
• Front baffle wattage tap adjustment
• Includes tile bridge and mounting ring for easy installation
• UL1480A and CSA 22.2 205 certified

SPECIFICATIONS

• Frequency response 50 Hz - 20 kHz
• Sensitivity (SPL 1 W/1 m) 90 dB
• Coverage pattern 120° conical
• Power handling (@ 8Ω) 75 W (with overload protection)
• Rated Impedance 8 Ω
• Recommended High-Pass frequency 60 Hz
• Input configuration 8Ω; 70V/100V
• 70V/100V power taps 1.8 (70V only)/3.7/7.5/15/30 W
• LF transducer 6.5 in (165 mm) high-compliance driver (weatherized cone)
• HF transducer 1 in (25 mm) Ti-coated dome
• Mounting system Integrated 4-point toggle anchors
• Acoustic design Ported cabinet, two-way design, internally damped, w/passive crossover
• Cabinet construction Steel enclosure and UL94V-0 rated baffle and bezel
• Grille construction Powder-coated steel
• Color White (paintable)
• Cutout dimensions (diam.) 10.6 in. (269 mm)
• Dimensions (depth x diam.) 7.0 in. x 11.8 in. (190 mm x 300 mm)
• Net weight 10 lb (4.5 kg)
• Included accessories Tile bridge, mounting ring
• Safety agency ratings UL 1480
• Safe for use in air handling spaces per UL 2043
