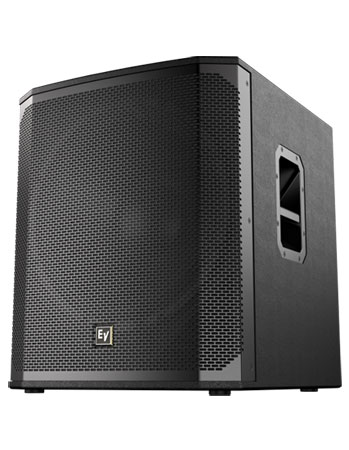

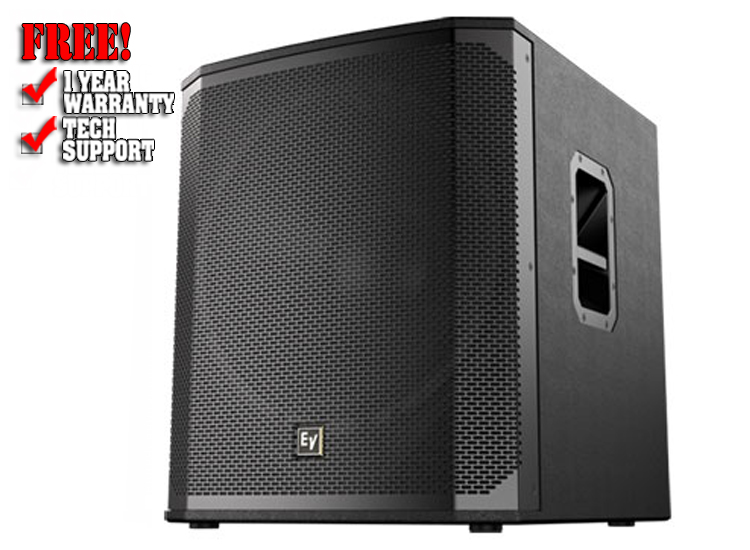

Electro-Voice ELX200-18S

18" passive subwoofer

The ELX series is designed to deliver an unprecedented combination of sound quality, portability and durability at its price point. All-new custom components-tested to levels far exceeding the industry norm-make ELX200 a robust workhorse capable of handling real-world abuse and professional applications beyond the capability of competitors' products in its category.

Every aspect of ELX200 is designed for ideal results as part of the whole - the acoustical, electrical and mechanical components all work together seamlessly. The subwoofers pack powerful low-frequency output into a surprisingly compact footprint, and feature tuned 15 mm thick wood enclosures with a premium top-coat finish. The proprietary features that have made the other members of the EV portable speaker family a go-to for best-in-class performance are also present.

EV's industry-leading quality and testing procedures yield efficient transducer design and meaningful specs, resulting in components that deliver accurate, linear response at the system's highest output levels. Translation: loud and clear all the way up to the limit. Unified in one of the strongest full-range composite enclosures ever built by EV. The ELX200 is established as the new benchmark for toughness - both acoustically and physically; maximum efficiency with maximum toughness.

Features:

• 1600 W (peak), 133 dB peak SPL utilizing high sensitivity transducer designed and engineered by EV for maximum punch.
• High-output EVS-18L woofer designed to exacting specifications for superior durability and exceptional low-frequency reproduction.
• System reliability verified with over 500 hours of abuse testing and endurance testing.

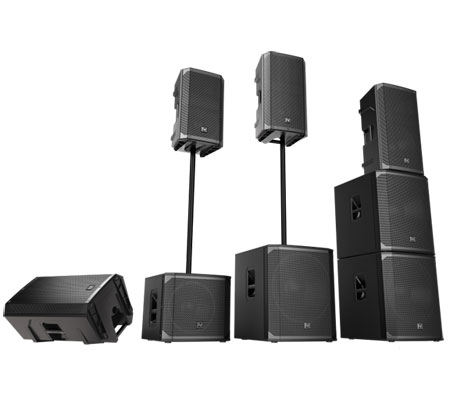

• Ideal for portable and installed applications.
• Lightweight, compact 15 mm wood enclosure with internal bracing with durable polyurea top-coat finish.
• Professional-grade hardware: integrated M20 threaded pole mount plate and two-handle design for easy lifting.

SPECIFICATIONS

• Suspension
• Minimum Impedance 7.2 Ω
• HF Transducer
• SPECIFICATIONS
• Speaker Type Subwoofer
• Woofer Size 18inch
• Powered or Passive Passive
• Frequency Response (-3 dB)¹ 45 Hz - 200Hz
• Frequency Range (-10 dB)¹ 28 Hz - 300 Hz
• Max. SPL/1m (calc)² 133 HzdB
• LF Transducer EVS-18L 457 mm (18 in)
• Power Rating 1600W

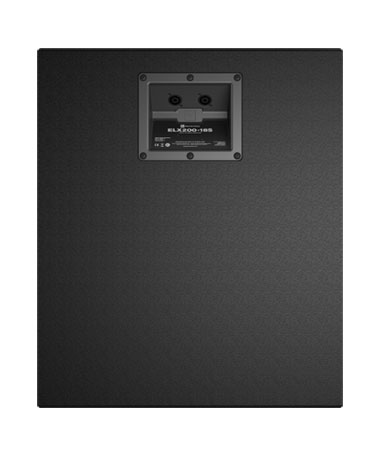

• Connector Type Dual NL4
• Enclosure Material 15 mm plywood with durable polyurea top-coat finish

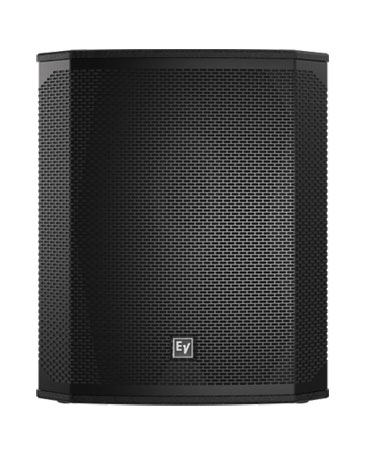

• Grille 18 AWG steel with powdercoat
• Available Color Black or White
• Height 23.62" (600mm)
• Width 19.96" (507mm)
• Recommended High-Pass Frequency 35 HzHz
• Depth 22.6" (574mm)
• Weight Net 58.64lbs (26.6kg)
• Shipping Weight 67.24lbs (30.5kg)
• Family ELX200
• Nominal Impedance 8O
• Axial Sensitivity (SPL, 1 W @ 1 m) 94dB
• Power Handling (Continuous / Peak) 400W/1600W
