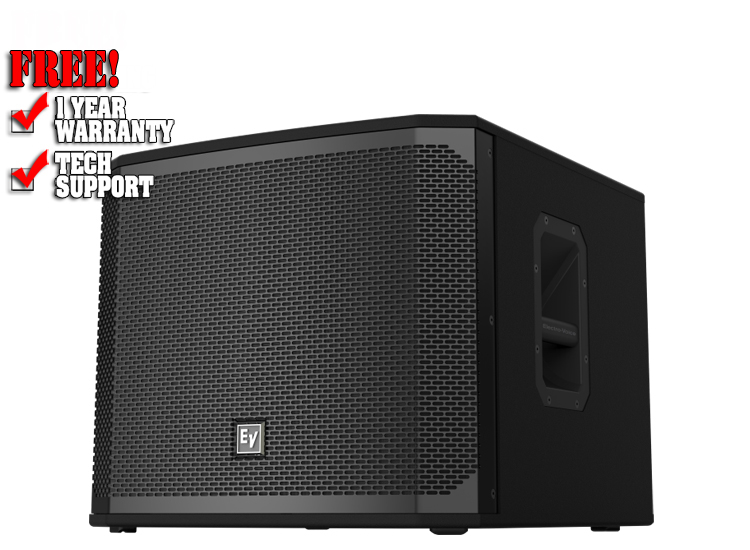

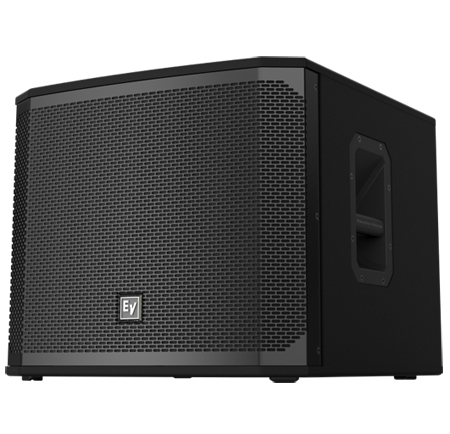

Electro-Voice EKX-15S

15" passive subwoofer

Features:

• 1600 W (peak), 133 dB peak SPL on the EKX-15S utilizing highsensitivity transducers designed and engineered by EV.
• Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.
• Large slot ports for low distortion and excellent bass extension.
• Metal grille reinforcement bar (two bars on the EKX-18S).

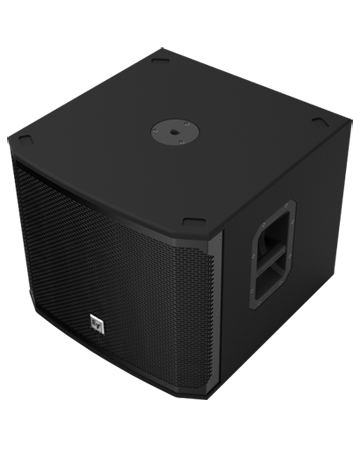

• M20 threaded pole mount plate.

SPECIFICATIONS

• Frequency Range (-10 dB) 40 Hz - 300kHz (Half Space Measurement)
• Minimum Impedance 7.5O
• Speaker Type Subwoofer
• Woofer Size 15inch
• Powered or Passive Passive
• Frequency Response (-3 dB)¹ 60 Hz - 100Hz (Half Space Measurement)
• Max. SPL/1m (calc)² 133dB
• LF Transducer EVS-15C 381 mm (15 in)
• Power Rating 1600W

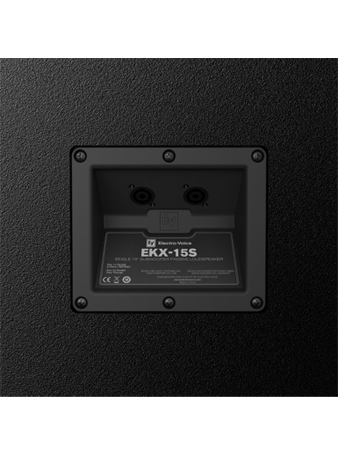

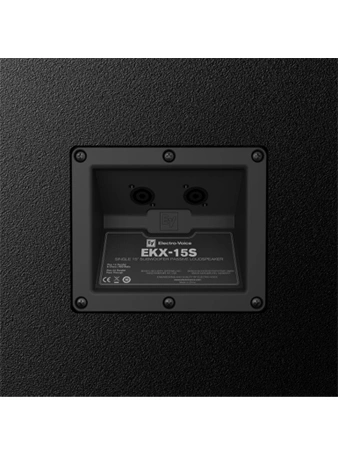

• Connector Type Dual NL4
• Enclosure Material 15 mm, plywood with EVCoat
• Grille 18 AWG steel with powdercoat
• Height 17.91" (455mm)
• Width 20.87" (530mm)
• Recommended High-Pass Frequency 35Hz
• Depth 21.69" (551mm)
• Weight Net 54.9lbs (24.9kg)
• Shipping Weight 69lbs (31.3kg)
• Family EKX
• Nominal Impedance 8O
• Axial Sensitivity (SPL, 1 W @ 1 m) 95dB
• Power Handling (Continuous / Peak) 400 W/1600W
• Maximum SPL 133dB (Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating)
• Passive Power Handling 1600W peak
