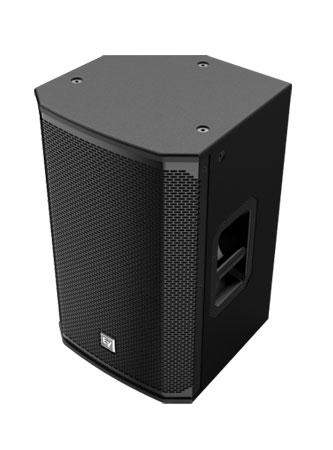

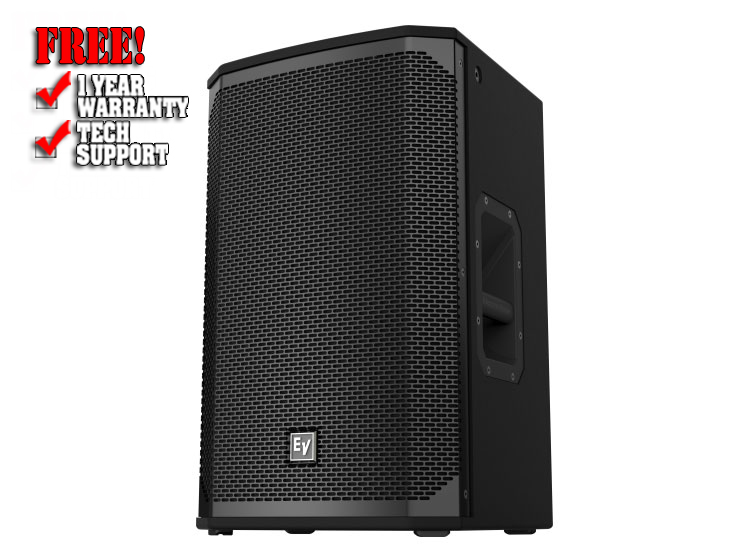

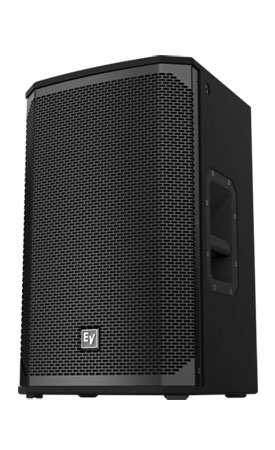

Electro-Voice EKX-12

12" passive loudspeaker

Features:

• EKX-12: 1400 W (peak), 131 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV.
• EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage.
• Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.

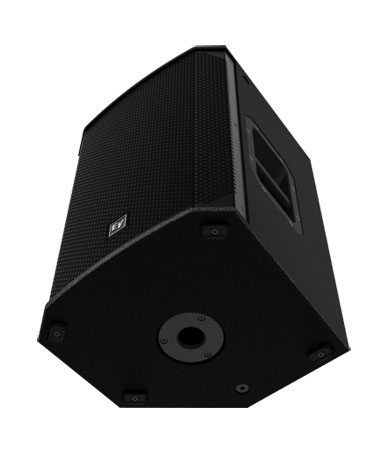

• Eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.
• 90° x 60° pattern for best coverage on mid-size stages. 40° monitor angle with rubber feet.

SPECIFICATIONS

• Frequency Range (-10 dB) 55 Hz - 20 kkHz (Full Space Measurement)
• Suspension (8) M10 threaded mounting points
• Minimum Impedance 7.5Ω
• HF Transducer DH-1M 1-inch titanium compression driver
• Speaker Type Full-Range, two-way
• Woofer Size 12inch
• Powered or Passive Passive
• Frequency Response (-3 dB)¹ 82 Hz - 18 kHz (Full Space Measurement)
• Max. SPL/1m (calc)² 131dB
• Coverage (Nominal -6 dB) H 90°
• LF Transducer EVS-12M 300 mm (12 in)
• Power Rating 1400W
• Crossover Frequency 1.6 kHz
• Connector Type Dual NL4
• Enclosure Material 15 mm, plywood with EVCoat
• Grille 18 AWG steel with powdercoat
• Height 23.9" (607mm)
• Width 14.76" (375mm)
• Recommended High-Pass Frequency 55Hz
• Depth 14.02" (356mm)
• Weight Net 38.36lbs (17.4kg)
• Shipping Weight 47.18lbs (21.4kg)
• Family EKX
• Nominal Impedance 8O
• Axial Sensitivity (SPL, 1 W @ 1 m) 95dB
• Power Handling (Continuous / Peak) 350 W/1400W
• Maximum SPL 131dB (Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating)
• Passive Power Handling 1400W peak
