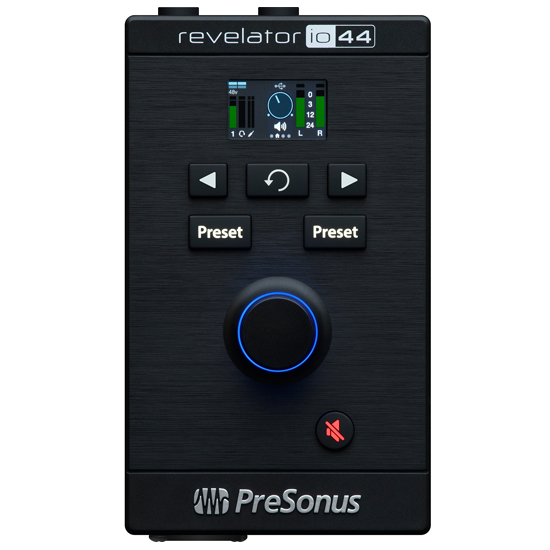

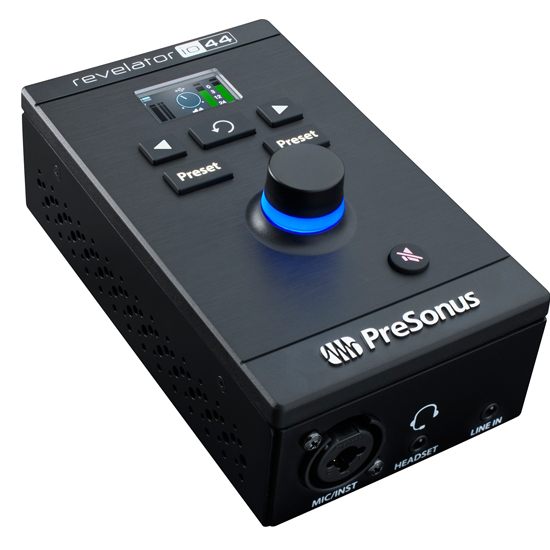

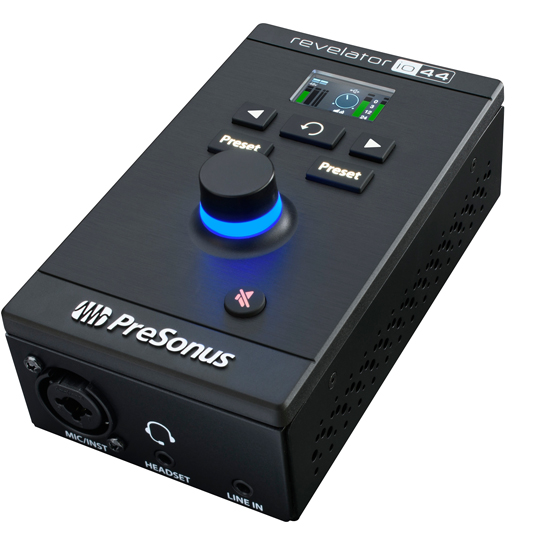

PreSonus Revelator io44

Revelator io44 features an easy-to-use mixer that lets you blend audio from up to three different applications at once. Add backing tracks, Skype calls, and even gameplay quickly and easily without taxing your computer. An automatic output limiter prevents your stream from distorting. Whether you're on macOS or Windows, you can create custom mixes of your inputs and your applications and monitor it all at near-zero latency so you can stream and record simultaneously!

Revelator io44 comes with a complete suite of professional software to take your sound to the next level. Studio One® Artist features lightning-fast drag-and-drop workflow, a complete suite of plug-ins, and the professional mixing and production tools that made Studio One so beloved.

Revelator io44 provides State Space-modeled analog processing onboard with the same Fat Channel gate, compressor, and EQ our StudioLive Series III mixers offer. Like what you hear? All processing can be printed to your recording, or just used for your monitor mix, you decide.

Revelator io44's presets are stored on the mic, so you can take your sound with you. Connect directly to your iPad Pro, or grab your Camera Connection Kit and connect your Revelator to your Lightning- or USB-C-equipped iPhone or iPad. Only Revelator brings studio-quality sound to Facebook Live, IGTV, or anywhere else you stream from your mobile device.

Features

• Ultra-compact, mobile bus-powered USB-C® compatible audio interface for recording, streaming, podcasting and more
• 96 kHz / 24-bit operation for pristine audio recording
• 1 digitally controlled, high-headroom, low noise XMAX-L mic preamp for professional results
• 1 Instrument input (via combo) for guitars and basses
• 1 TRS ?" Stereo Line input for DJ mixers and more
• Stand-alone functionality lets you take your sound with you
• ?Balanced Main Left / Right with independent level control and mute
• 1 TRRS 1/4"""" stereo Headset connection (mic in, stereo out)
• Integrated mixer lets you blend audio from up to three applications at once
• Powerful onboard StudioLive processing lets you polish your sound (or completely transform it) with reverb, compression, EQ, and fantastic Voice FX - all without taxing your CPU
• Professionally crafted Presets make you sound like a pro with a single click. You can also create your own custom presets to share, save, or produce on the go

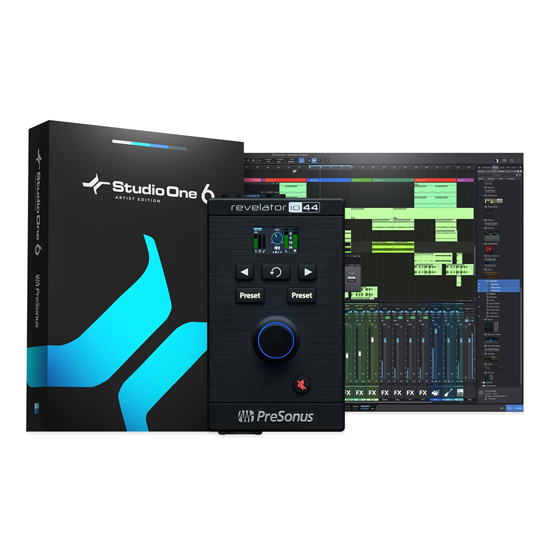

• Studio One Artist recording software and Studio Magic software bundle included

Specifications:

• Electronics
  • Voltage : USB Bus Powered

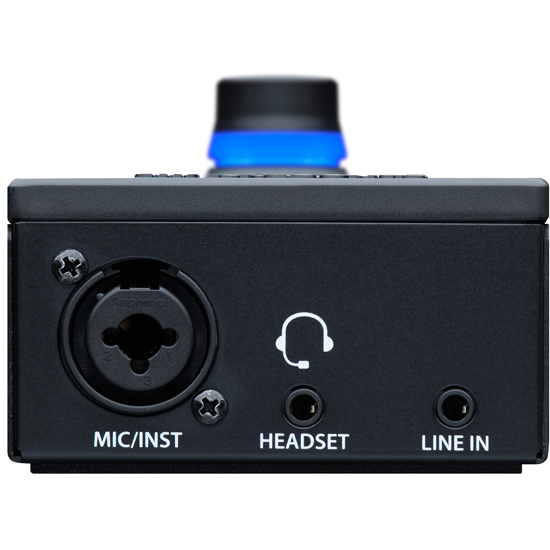

  • Inputs : One - XLR Female, Balanced (Microphone), One - 1/4" TS Female, Unbalanced (Instrument), One - 1/8" TRS Female (Stereo Line Input)
  • Headphone Jack : 1/8" TRRS Female (Stereo Headset Compatible)
  • Headphone Jack : 1/8" TRRS Female (Stereo Headset Compatible)

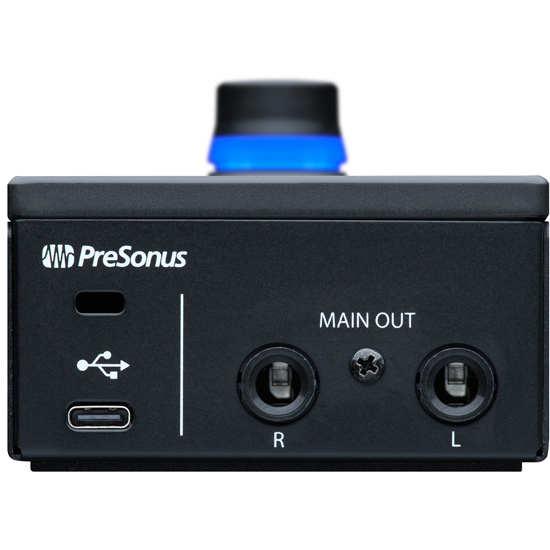

  • Line Out : Two - 1/4" Balanced (Left and Right)
• Main and Line Outputs
  • Main And Line Outputs Maximum Level : +10 dBu
  • Main And Line Outputs Frequency Response : 20 Hz to 20 kHz
  • Main And Line Outputs Total Harmonic Distortion : 0.003%
• Digital Audio
  • Digital Audio Dynamic Range : 96 dB
  • Digital Audio Bit Depth : 24-bit
  • Supported Sample Rates : 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
• Microphone Preamp
  • Total Harmonic Distortion : 0.005% (1 kHz, -1 dBFS, Minimum Gain)
  • Gain Control Range : 60 dB
  • Microphone Preamp Maximum Input Level : +10 dBu (±0.5 dBu, Minimum Gain)
  • Phantom Power : +48 VDC (10 mA total)
  • Frequency Response : 20 Hz to 20 kHz
  • Microphone Preamp Input Impedance : 1.4 kΩ
  • Equivalent Input Noise : -128 dBu
• Headphone Outputs
  • Headphone Outputs Maximum Output : 30mW/Channel @56Ω
  • Frequency Response : 20 Hz to 20 kHz
  • Headphone Outputs Impedance Working Range : 32Ω to 300Ω
