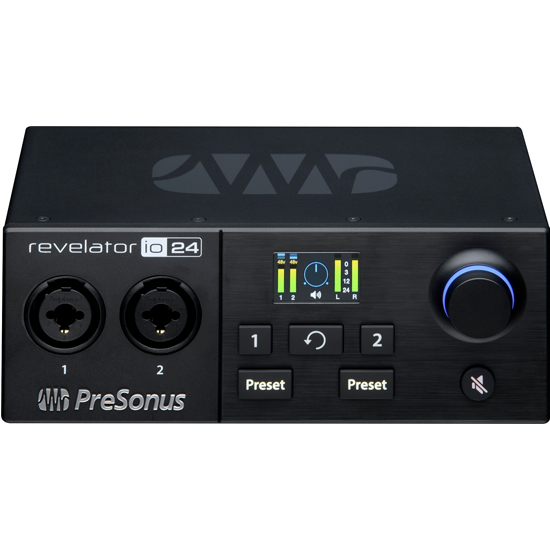

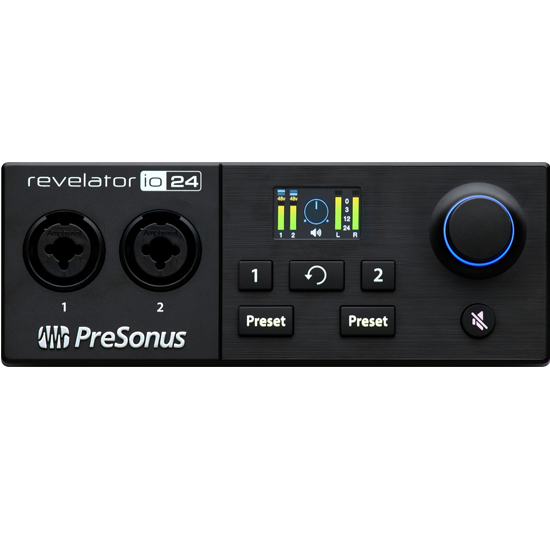

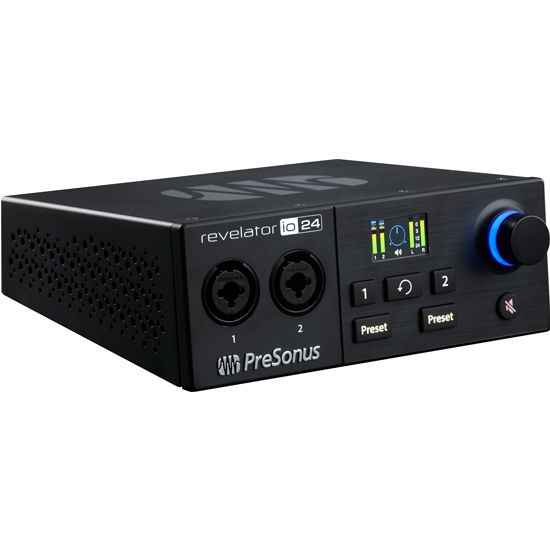

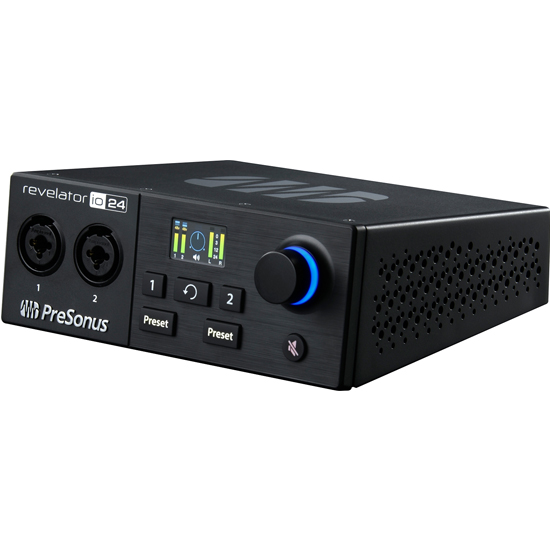

PreSonus Revelator io24

Revelator io24 provides State Space-modeled analog processing onboard with the same Fat Channel gate, compressor, and EQ our StudioLive Series III mixers offer. Like what you hear? All processing can be printed to your recording, or just used for your monitor mix, you decide.

Revelator io24's presets are stored on the mic, so you can take your sound with you. Connect directly to your iPad Pro, or grab your Camera Connection Kit and connect your Revelator to your Lightning- or USB-C-equipped iPhone or iPad. Only Revelator brings studio-quality sound to Facebook Live, IGTV, or anywhere else you stream from your mobile device.

Features

• Add Revelator power and flexibility to any XLR microphone
• 2 XMAX-L mic preamps with +48V phantom power for professional XLR mics and crystal-clear sound
• 2 stereo loopback streams for mixing audio from Zoom, Skype, backing tracks, and more
• Professionally-crafted presets make you sound like a pro at the press of a button - or design, save, and share your own
• Stream Mix mode lets you create a complete stereo mix with Revelator io24 hardware inputs, effects, two channels of loopback audio, and reverb and send it to your streaming software.
• Over $1000 worth of software including Studio One Artist, Ableton Live Lite, and Studio Magic Suite.

Specifications:

• Electronics
  • Voltage : USB Bus Powered
  • Inputs : Two - 2 x XLR/TRS Line Combo
  • Line Out : Two - 1/4" Balanced (Left and Right)
• Microphone Preamp
  • Total Harmonic Distortion : 0.009% (1 kHz, -1 dBFS, Minimum Gain)
  • Gain Control Range : 60 dB (± 1 dB)
  • Microphone Preamp Maximum Input Level : +10 dBu (±0.5 dBu, Minimum Gain)
  • Phantom Power : +48 VDC (10 mA Total)
  • Frequency Response : 20 Hz - 20 kHz (+0.1dB/-0.3 dB, Unity Gain, Unweighted)
  • Microphone Preamp Input Impedance : 1.4 kΩ
  • Equivalent Input Noise : -126 dBu (A-Weighted, 150O, Maximum Gain)
• Headphone Outputs
  • Headphone Outputs Maximum Output : 40 mW/Channel at 56O
  • Frequency Response : 20 Hz to 20 kHz, +0.5/-1.5 dB
  • Total Harmonic Distortion : 0.01% (1 kHz, 0 dBFS, Loaded)
  • Headphone Outputs Impedance Working Range : 32O to 300O
• Miscellaneous
  • Connection Type : USB-C Cable

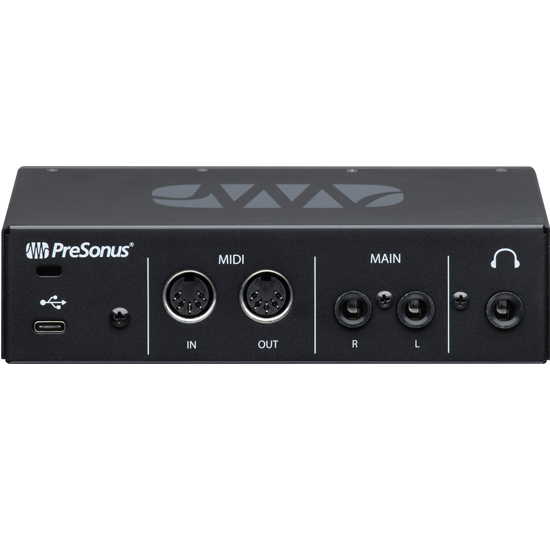

  • MIDI I/O : Dual 5-Pin Female DIN
• Main and Line Outputs
  • Main And Line Outputs Maximum Level ; +10 dBu (1 kHz, Unity Gain, Z-Balanced)
  • Main And Line Outputs Frequency Response : 20 Hz - 20 kHz (+0.1dB/-0.3 dB, Unity Gain, Unweighted)
  • Main And Line Outputs Total Harmonic Distortion : 0.003% (1 kHz, -1 dBFS, Unity Gain)
• Digital Audio
  • Digital Audio Dynamic Range : 105 dB
  • Digital Audio Bit Depth : 24 Bit
  • Supported Sample Rates : 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
