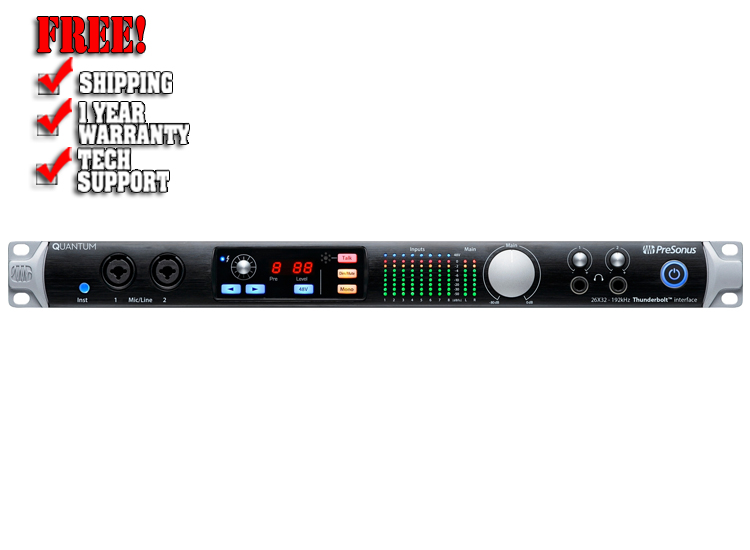

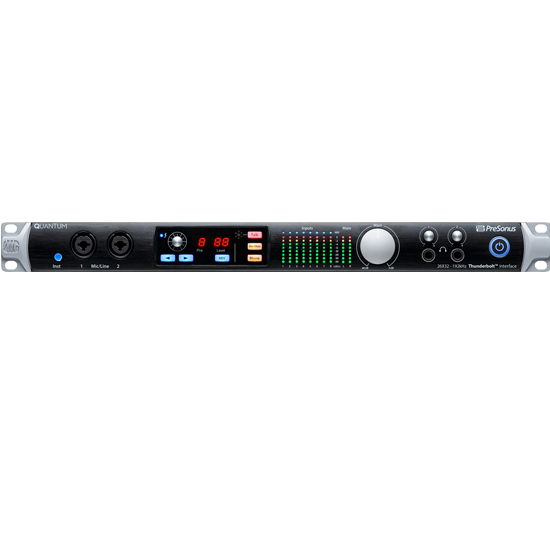

PreSonus Quantum

A great choice for a wide variety of recording environments, the 26x32-channel Quantum is PreSonus® fastest and best-sounding audio interface, taking advantage of the high-speed Thunderbolt™ bus and a no-frills, direct-to-DAW (no DSP added) signal path to achieve extremely low latency. Two combo mic/instrument/line inputs and 6 mic/line inputs with recallable XMAX preamps combine with cutting-edge 24-bit, 192 kHz converters with 120 dB of dynamic range to deliver superb audio quality. For more I/O channels, simply stack up to 4 Quantum interfaces via Thunderbolt to create a monster 96x96 system. You also get MIDI and word clock I/O. Using the included Studio One Artist DAW or UC Surface control software, you can remote-control the preamps and many other features. To top it off, Quantum owners get the Studio Magic Plug-in Suite free and can upgrade to Studio One Professional for 50% off.

Features

• PreSonus®' fastest and best-sounding audio interface
• Uses high-speed Thunderbolt™ bus
• 24-bit resolution and up to 192 kHz sampling rate (120 dB dynamic range)
• 26x32; expandable to 96x96 by stacking up to four Quantums via Thunderbolt
• 2 combo mic/instrument/line inputs and 6 mic/line inputs, with recallable XMAX preamps
• Dual ADAT Optical, S/PDIF, MIDI, and BNC word clock I/O
• Studio One® Artist and Studio Magic Plug-in Suite included; upgrade to Studio One Professional for 50% off

Specifications:

• Electronics
  • Voltage : 100-120V
  • Inputs : 1/4" TRS Female, Stereo, Unbalanced
• Line Inputs
  • Line Inputs Maximum Level : + 18 dBu (Balanced, Minimum Gain)
  • Line Inputs Frequency Response : 20 Hz to 20 kHz (±0.05 dB, Unity Gain, 48 kHz), 20 Hz to 40 kHz (±0.10 dB, Unity Gain, 96 kHz)
  • Line Inputs Dynamic Range : > 118 dB (A-Weighted, Minimum Gain)
  • Line Inputs Total Harmonic Distortion : < 0.005% (1 kHz, Minimum Gain)
  • Line Inputs Impedance : 10 kΩ
• Headphone Outputs
  • Frequency Response : 20 Hz to 20 kHz, +/-0.5 dB
  • Dynamic Range : > 110 dB (A-Weighted)
  • Total Harmonic Distortion : < 0.03% (1 kHz)
• Microphone Preamp
  • Total Harmonic Distortion : < 0.005% (1 kHz, Minimum Gain)
  • Gain Control Range : 60 dB
  • Microphone Preamp Maximum Input Level : +10 dBu (Balanced, Minimum Gain)
  • Phantom Power : +48V, >8 mA Per Input
  • Frequency Response : 20 Hz to 20 kHz (±0.15 dB, Unity Gain, 48 kHz), 20 Hz to 40 kHz (±0.22 dB, Unity Gain, 96 kHz)
  • Microphone Preamp Input Impedance : 1.6 kΩ
  • Dynamic Range : > 110 dB (A-Weighted, Minimum Gain)
  • Equivalent Input Noise : < -131 dBu (Maximum Gain, 40Ω, 22 kHz BW, A-Weighted)
• Main and Line Outputs
  • Main And Line Outputs Maximum Level : +18 dBu (Balanced)
  • Main And Line Outputs Frequency Response : 20 Hz to 20 kHz (±0.05 dB, Unity Gain, 48 kHz), 20 Hz to 40 kHz (±0.15 dB, Unity Gain, 96 kHz)
  • Main And Line Outputs Total Harmonic Distortion : < 0.0035% (1 kHz, +4 dBu)
  • Main And Line Outputs Dynamic Range : > 118 dB (A-Weighted)
• Digital Audio
  • Digital Audio Dynamic Range : ADC Dynamic Range: 120 dB (A-Weighted), DAC Dynamic Range: 120 dB (A-Weighted)
  • Digital Audio Bit Depth : 24 bits
  • Supported Sample Rates : 44.1, 48, 88.2, 96, 176.4, 192 (kHz)
