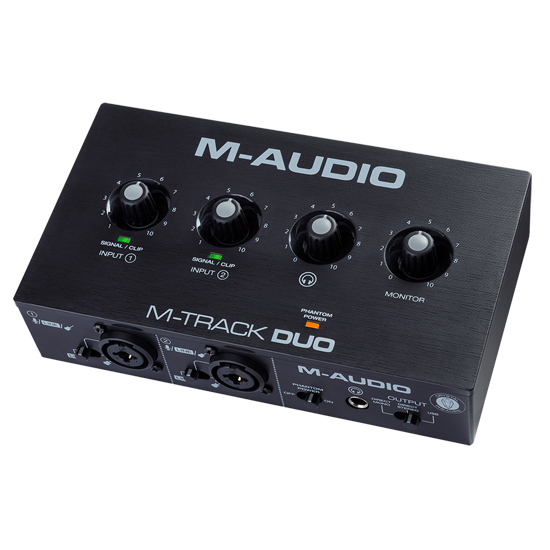

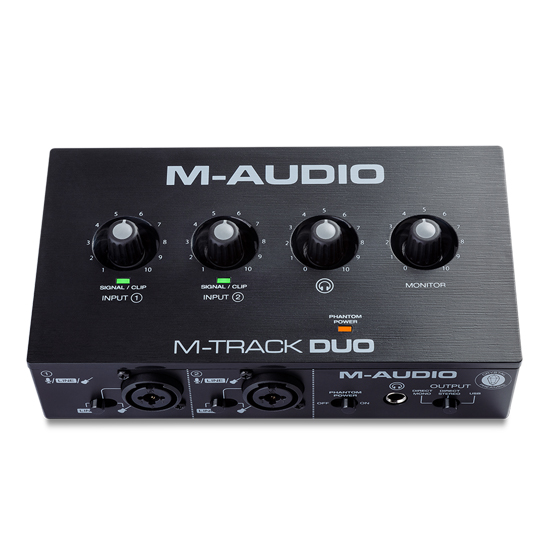

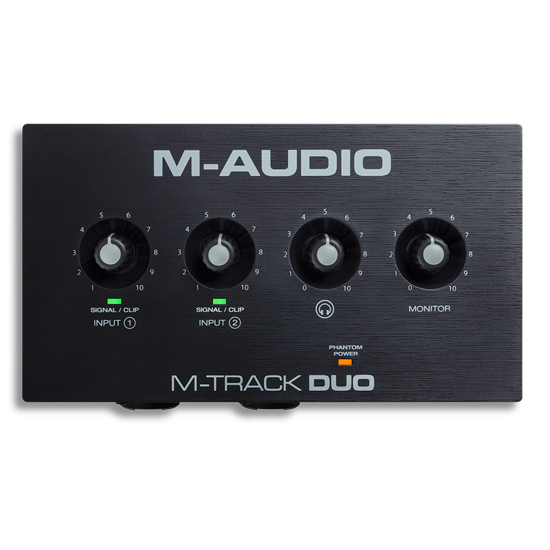

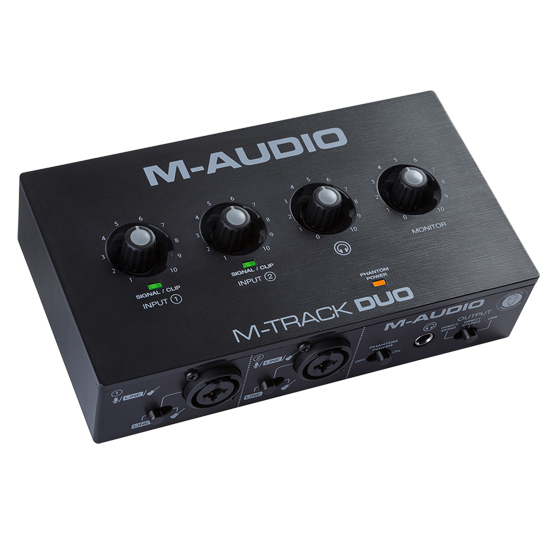

M-Audio M-Track Duo

Direct Monitoring & Headphone Connection

M-Track Duo offers zero-latency monitoring of the mic, line or instrument input signal through both the main stereo 1/4/' outputs and stereo1/4" headphone output. The USB/Direct switch adjusts the balance between the direct inputs and the playback from your computer software. This makes it easy to record new parts or add parts to an existing composition.

Start Recording Immediately

The M-Track Duo comes with a complete software package that has everything to get you started right out of the box. Included is a great digital audio workstation (DAW)-MPC Beats. This DAW makes it easy and fun to create professional sounding podcasts, music, or pro sounding beat productions on any Mac or PC.

80 Effect Plugins provided by AIR

But that's not all. Included are some extra goodies to help out any podcaster, guitarist, or producer. First on the list are 80 effect plugins provided by AIR. This exclusive and diverse collection delivers everything you need for creative production, mixing and mastering, including reverbs, equalizers, delays, filters and so much more.

World-Class Virtual Instruments - TubeSynth, Electric, and Bassline

The AIR TubeSynth plugin emulates the sound of vintage analog polyphonic synthesizers. Dive into a collection of warm pads, brass synths, and so much more in this massive collection of synthesizer presets.

AIR Electric plugin is your total electric piano collection on MPC. Choose from a wide collection of keyboards like Rhodes, Wurlitzers, FM keyboards, and more. Dedicated control sections provide deep virtual control over keyboard pickups, envelope, bell and noise settings, and much more.

The AIR Bassline plugin emulates the sound of classic monophonic synthesizers. Create your own unique synth patches with the integrated AIR effects sections

A New Standard For Guitar Amplifier Modeling Software

ReValver includes ValveKing® & Custom Lite Amp Modules, 3 x cabs, 3 x mics (with multiple selectable positions), and 3x effects.

Crystal™ Preamps, Pristine A/D Converters and Premium Components

Our engineers designed Crystal Preamps to provide you with a transparent, low-noise preamp that guarantees the best sound from your microphones and captures your performance exactly the way you intended. The M-Track Duo incorporates pristine A/D converters for digital audio with explosive dynamic range that captures every nuance and subtlety of the performance.

Waveform OEM™ DAW

Waveform OEM is a multi award-winning workstation, featuring powerful and creative tools to inspire the modern musician. Unlike typical 'Lite' versions, it does not impose any restrictions - you get unlimited track count, powerful features, compatibility with all popular plug-ins and efficient performance on MacOS ®, Windows®, and Linux ® operating systems

DAW Essentials Collection™

Introducing a collection of 16 contemporary FX plug-ins for use with any DAW. These plug-ins utilize the very latest algorithms and coding techniques to deliver extraordinary sound quality in an extremely efficient package, allowing the plug-ins to be used liberally across a wide range of native computer systems.

Equaliser, Compressor, Reverber8, Delay Studio, Stereo Delay, Tape Delay, Crossover, Limiter, Gate / Expander, Ducker, Flanger, Crusher, Chorus, Bus Compressor, Phaser, and Auto Filter

Features:

• 2-Channel USB recording interface for Mac and PC
• (2) Combo inputs with Crystal Preamps amazing audio quality
• Dedicated instrument input for guitar or bass
• +48V phantom power for connecting studio condenser microphones
• Stereo 1/4" outs; 1/4" headphone out with independent level controls
• 1/8" headphone and RCA stereo outputs provide easy monitoring

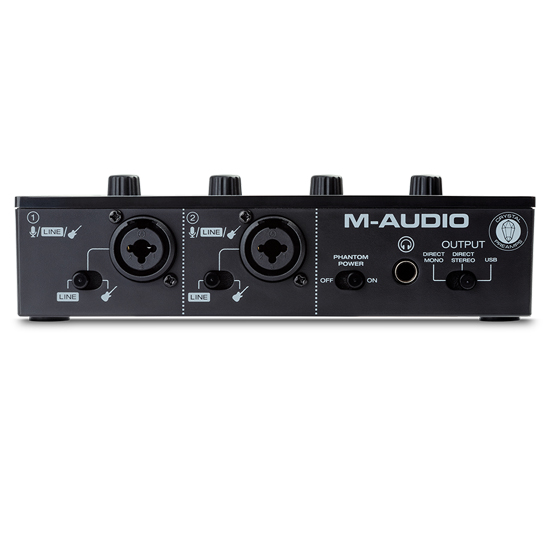

• USB/Direct Mono/Direct Stereo switch for monitoring mic, line or instrument inputs in stereo or mono
• Software bundle, including: MPC Beats, AIR Music Tech Electric, Bassline, and TubeSynth, Revalver guitar amp plugin and 80 AIR plugin effects

Specifications:

• Mic Input (balanced XLR)
  • Frequency Response : 20 Hz - 20 kHz (+0.1 dB)
  • Signal-to-Noise Ratio : 109 dB (A-weighted)
  • THD+N : 0.003% (min. gain, 0 dBu out, A-weighted)
  • Preamp EIN : -128 dBu (max. gain, 40 Ω source, A-weighted)
  • Gain Range : Direct Mono: 0 dB to +54 dB Direct Stereo: 6 dB to +60 dB
• Line Input (balanced 1/4" [6.35 mm] TRS)
  • Frequency Response : 20 Hz - 20 kHz (+0.1 dB)
  • Sensitivity : -43 dBu
  • THD+N : 0.002% (min. gain, 0 dBu out, A-weighted)
  • Gain Range : Direct Mono: -10 dB to +44 dB Direct Stereo: -4 dB to +50 dB
• Instrument Input (unbalanced 1/4" [6.35 mm] TS)
  • Frequency Response : 20 Hz - 20 kHz (+0.1 dB)
  • THD+N : 0.005% (min. gain, 0 dBu output, A-weighted)
  • Input Impedance : 1 MΩ
  • Gain Range : Direct Mono: -10 dB to +44 dB Direct Stereo: -4 dB to +50 dB

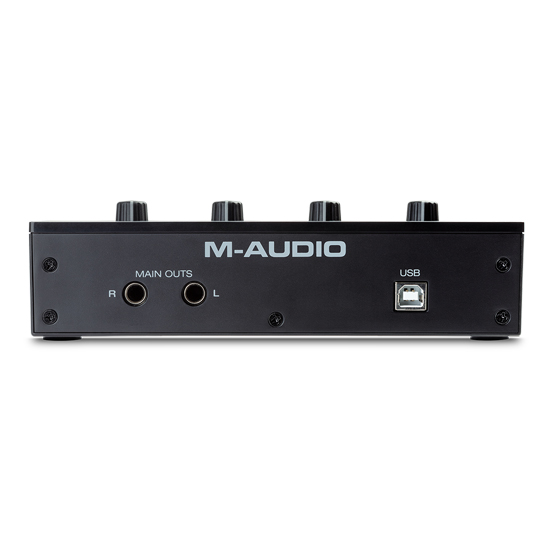

• Main Outputs, L and R (impedance-balanced 1/4" [6.35 mm] TRS)
  • Frequency Response : 20 Hz - 20 kHz (+0.1 dB)
  • Signal-to-Noise Ratio : 109 dB (A-weighted)
  • THD : 0.002% (0 dBu out, A-weighted)
  • Max Output Level : +4 dBu
• Headphone Output (1/8" [3.5 mm] TRS)
  • Power : 60 mW/Ch, 32 Ω
  • Frequency Response : 20 Hz - 20 kHz (+0.5 dB)
  • THD+N : 0.02% (A-weighted)
  • Signal-to-Noise Ratio : 100 dB (A-weighted)

What's In The Box:

• M-Track Duo
• USB-B-to-USB-A Cable
• Software Download Cards
• User Guide
• Safety & Warranty Manual
