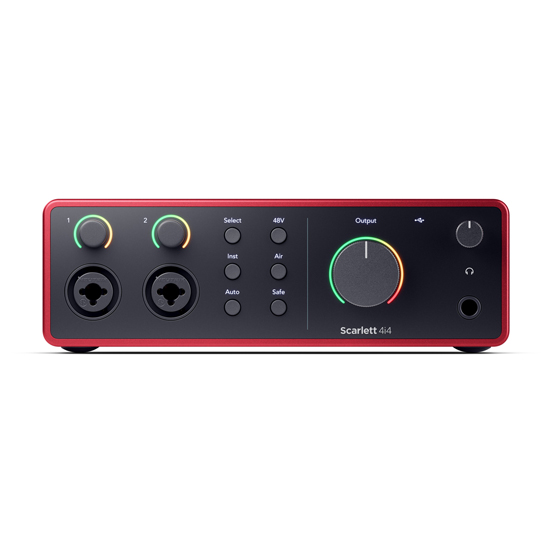

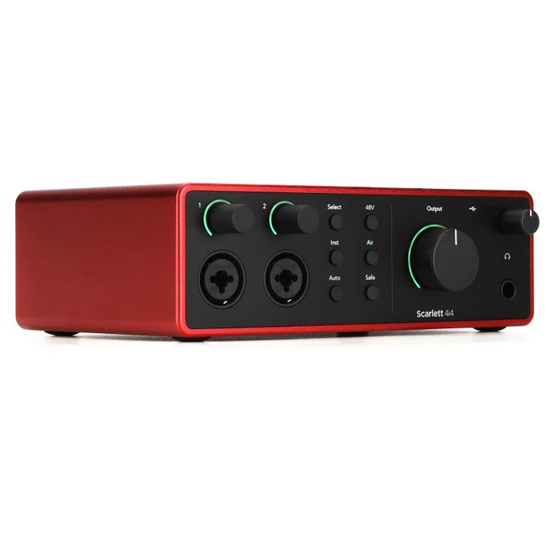

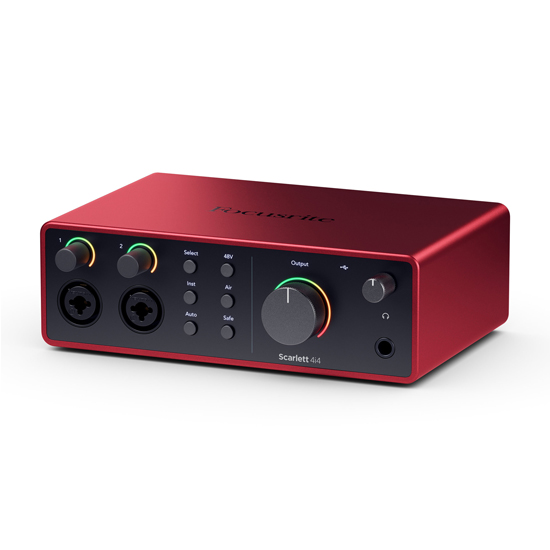

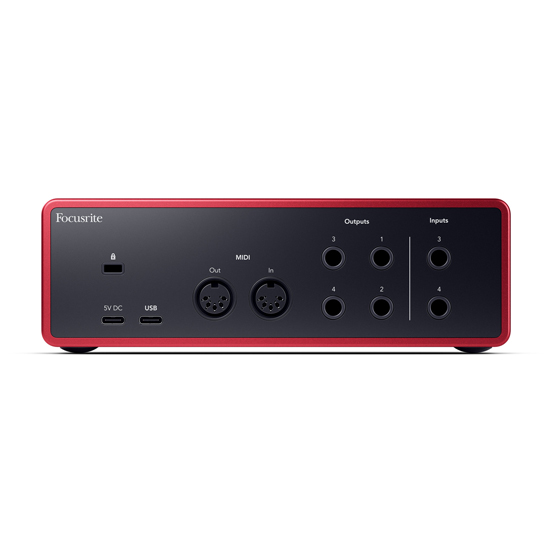

Focusrite Scarlett 4i4

Scarlett 4i4 is the complete compact studio hub for all your instruments. Perfect for multi-instrumentalists and collaborators, 4i4 is loaded with I/O for everything. Two of our most detailed ultra-low-noise mic preamps. Hi-Z, line and MIDI connections for your keys, guitars, synths, grooveboxes and controllers. With 4i4 your headphones, monitors, and line outs each get their own mix, so you can match the studio setup to the session.

Air mode, with Presence and Harmonic Drive, gives you that big console sound wherever you record. Auto Gain and Clip Safe make sure you'll never need to worry about your levels. And the Hitmaker Expansion software bundle includes all the tools you need to record, produce and release your tracks.

Specifications:

• Overview
  • Number of Microphone Preamps : 2
  • Phantom Power : Yes
  • Instrument Inputs : 2
  • Line Inputs : 4
  • Air Mode : Yes
  • Auto Gain : Yes
  • Clip Safe : Yes
  • Line Outputs : 4
  • Headphone Outputs : 1
  • Loopback : Yes
  • MIDI : Yes
  • Connectivity : USB Type-C
  • Protocol : USB 2.0
  • Form Factor : Desktop
  • Simultaneous I/O : 6 x 6 (including Loopback inputs)
  • A/D Resolution : 24-bit/192 kHz
  • Bus Powered : Yes (1.5A)
• Supported sample rates : 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
• Microphone inputs
  • Frequency Response : 20-20kHz ± 0.06dB
  • Dynamic Range : 116dB (A-Weighted)
  • THD+N : -100dB @ 8dB gain
  • Noise EIN : -127dBu (A-Weighted)
  • Maximum Input Level : 16dBu
  • Gain Range : 69dB
  • Impedance : 3kΩ
• Variable line inputs 1-2
  • Frequency Response : 20-20kHz ± 0.05dB
  • Dynamic Range : 115.5dB (A-Weighted)
  • THD+N : -100dB @ 8dB gain
  • Maximum Input Level : 22dBu
  • Gain Range : 69dB
  • Impedance : 60kΩ
• Fixed line inputs 3-4
  • Frequency Response : 20-20kHz ± 0.02dB
  • Dynamic Range : 115.5dB (A-Weighted)
  • THD+N : -105dB
  • Maximum Input Level : 22dBu
  • Impedance : 60kΩ
• Instrument Inputs
  • Frequency Response : 20-20kHz ± 0.15dB
  • Dynamic Range : 113dB (A-Weighted)
  • THD+N : -80dB @ minimum gain
  • Maximum Input Level : 12dBu
  • Gain Range : 62dB
  • Impedance : 1MΩ
• Line Outputs (Balanced)
  • Frequency Response : 20-20kHz ± 0.02dB
  • Dynamic Range : 120dB
  • THD+N : -112dB
  • Maximum Output Level : 16dBu
  • Impedance : 100Ω
• Headphone outputs
  • Frequency Response : 20-20kHz ± 0.1dB @ 33Ω / 300Ω
  • Dynamic Range : 112dB @ 33Ω
    115dB @ 300Ω
  • THD+N : -99dB @ 33Ω
    -108dB @ 300Ω
  • Maximum Output Level : 5dBu into 33Ω
    11dBu into 300Ω
  • Maximum Output Power : 57mW into 33Ω
    27mW into 300Ω
  • Impedance : 11Ω
• Analogue to Digital Converter
  • THD+N : -115dB
  • Dynamic Range : 130dB (A-Weighted)
• Digital to Analogue Converter
  • THD+N : -115dB
  • Dynamic Range : 130dB (A-Weighted)
• Power
  • USB : 1.5A
  • External (Optional) : 7.5W
