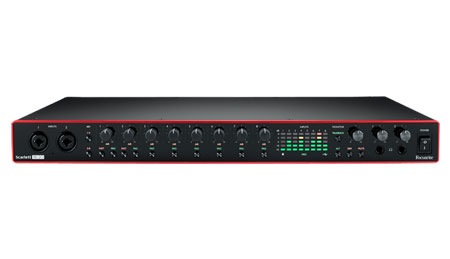

Focusrite Scarlett 18i20 [3rd Gen]

The heart of your setup. High channel count. Professional quality audio. Pro features, including talkback mic and speaker switching. 18i20 makes any space a studio.

The eight 3rd Generation Scarlett mic preamps sound great, with enough IO to record a full band straight out of the box. Air mode recreates the legendary effect of Focusrite's ISA mic pres and makes vocals and guitars shine. The high-impedance, high-headroom instrument inputs are great for recording guitar or bass without clipping. Ten balanced outputs, with Anti Thump speaker switching, are hum-free for pristine monitoring and are ideal as FX sends. Two powerful headphone outputs with individual level controls let you monitor, mix and master however you want. Built-in talkback mic makes it easy to talk to your band during busy recording sessions. Loopback makes streaming and sampling simple. And it comes with some of the best-loved tools in the business, including Ableton Live Lite, Avid Pro Tools Artist and Hitmaker Expansion - with plugins from legendary Auto-Tune® creators Antares®, Brainworx®, Softube®, Landr, XLN Audio®, Relab and more.

• Eight inputs and ten outputs; eight 3rd Generation mic pres, two Hi-Z instrument inputs, and ten balanced outputs plus ADAT input and output for up to eight more channels each way.
• Air Mode breathes life into vocals and acoustic instruments.
• 24-bit/192 kHz converters deliver studio-quality sound.
• Two powerful headphone outputs with independent level controls.
• Focusrite Control makes it easy to route audio and create the perfect monitor mix.
• Loopback makes streaming and sampling simple.
• Built-in talkback mic.
• Flexible connectivity, with MIDI and S/PDIF.
• USB-C connectivity, compatible with MacOS and Windows.
• Includes Ableton Live Lite, three months of Pro Tools Artist, and the Hitmaker Expansion, with plugins from Antares, Softube, Landr, XLN Audio and more.
• Three-year warranty and award-winning customer support for life.

Loud and clear

Hi-res 24-bit/192kHz converters give recordings stunning clarity. At home, in the studio or on the road, Scarlett sounds just like you.

Work faster, not harder

Mac, PC or iPadOS. Super-low latency means better takes. Better takes mean better recordings. Scarlett keeps you on track.

Ready when you are

Scarlett won't let you down. Our premium build quality, rock-solid drivers and our award-winning support team make sure of it.

Specifications in detail

Overview

• Connectivity: USB type-C
• Protocol: USB 2.0
• Form factor: Rack mount (1U)
• Simultaneous I/O: 18 x 20
• A/D resolution: 24-bit/192 kHz
• Number of preamps: 8
• Phantom power: Yes
• Number of pads: 8
• Instrument inputs: 2
• Line inputs: 8
• Analogue outputs: 10
• Headphone outputs: 2
• Main/alt speaker switching: Yes
• Talkback: Yes
• Digital inputs: S/PDIF and 2 x ADAT
• Digital outputs: S/PDIF and 2 x ADAT
• Loopback: Yes
• MIDI I/O: Yes
• Bus powered: No
• Included PSU: Yes

Supported sample rates

• 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz

Microphone inputs

• Frequency response: 20Hz - 20kHz ± 0.1dB
• Dynamic range: 111dB (A-weighted)
• THD+N: < 0.0012%
• Noise EIN: -128dBu (A-weighted)
• Maximum input level: 9dBu (at minimum gain)
• Gain range: 56dB
• Impedance: 3kO

Line Inputs

• Frequency response: 20Hz - 20kHz ± 0.1dB
• Dynamic range: 110.5dB (A-weighted)
• THD+N: < 0.002%
• Maximum input level: 22dBu (at minimum gain)
• Gain range: 56dB
• Impedance: 60kO

Instrument inputs

• Frequency response: 20Hz - 20kHz ± 0.1dB
• Dynamic range: 110dB (A-weighted)
• THD+N: < 0.03%
• Noise EIN: 12.5dBu (at minimum gain)
• Maximum input level: 9dBu (at minimum gain)
• Gain range: 56dB
• Impedance: 1.5MO

Line/monitor outputs

• Dynamic range (line outputs): 108dB
• THD+N: < 0.002%
• Maximum output level (0 dBFS): 15.5dBu
• Impedance: 430O

Headphone outputs

• Dynamic range: 104dB (A-weighted)
• THD+N: < 0.002%
• Maximum output level: 7dBu
• Impedance: < 1O
