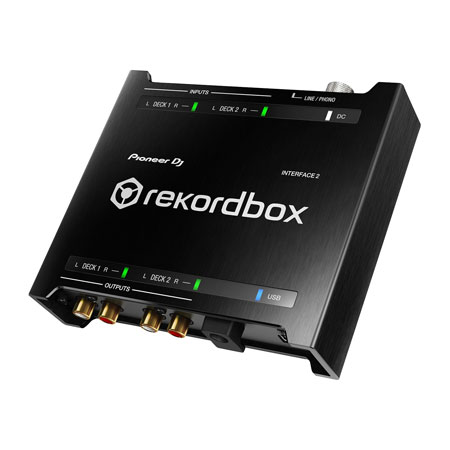

Compact, robust chassis

Take the INTERFACE 2 out on the road with confidence. The unit is compact and portable, yet highly robust in its seamless aluminium casing with extended edges that protect the terminals.

LEDs indicate signal flow

No matter the circumstances, connecting the audio interface to your hardware is easy and quick. LED indicators in the top panel show the signal flow, giving you a visual grasp of the setting status. For example, if the signal level is too high or low, you'll know instantly.

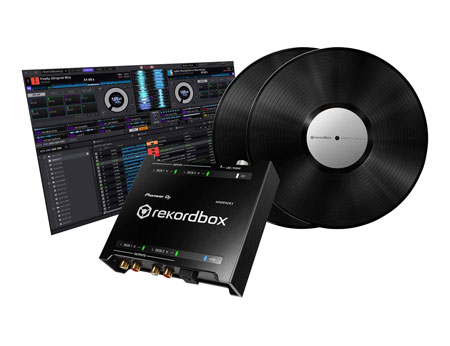

What's in the box

Your INTERFACE 2 includes 2 license keys for rekordbox dj and rekordbox dvs as well as 2 Control vinyls. The unit also comes with 4 audio cables, a USB cable, and power cable so you can start using rekordbox dvs right out of the box.

Easy analog sound recording

Easily record and capture your vinyl or any analog sound source using our normalize technology in rekordbox. There's no need for extra volume or recording monitoring as this is done automatically by a single click in the software.

DVS options

Use the 2 included RB-VS1-K time coded vinyls or download a custom control signal WAV file, if you'd like to use CDs or USB drive to scratch with your players, controller or all-in-one system.

AC and USB power

Choose your preferred source of power, be it via USB or via an AC adapter. Both are included in the box, allowing you to keep your options open.

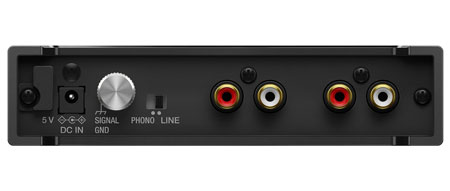

Sturdy signal

The INTERFACE 2 is designed to firmly hold your turntables' ground wires, thus reducing noise. The GND knob stays attached even when fully turned, so there's no chance of it falling off.

Stand-alone audio interface

Record audio to your computer or send out audio to your speakers using your interface. 3 samples rates are supported: 44.1 kHz, 48 kHz and 96 kHz.

Roland DJ-99 2-Channel DJ Mixer

• Pro-grade mini innoFADER crossfader.
• Dedicated DVS output.
• 3-band equalizer for each input.

3FT Dual RCA to RCA Cables

• High quality cables from a company you can trust

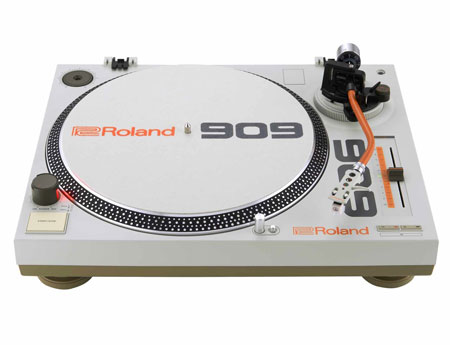

Roland TT-99 Direct Drive Turntable Specifications

Turntable Section

• Motor: Brushless DC motor
• Driving Method: Direct drive
• Turntable Platter: Die-cast Aluminum
• Speeds: 33 1/3 rpm, 45 rpm, 78 rpm
• Wow and Flutter: 0.15 % or less WRMS (JIS WTD)
• S/N Ratio: 50 dB or more (DIN-B)
• Starting Torque: 1 kgf.cm or more
• Braking System: Electronic brake
• Starting Time: 1 sec. or less
• Braking Time: 1 sec. or less
• Pitch Controls: +/- 10 %

Tonearm Section

• Type: Static balanced S-shaped tonearm
• Effective Arm Length: 230.5 mm
• Overhang: 16 mm
• Tracking Error Angle: 3 degrees or less
• Tracking Force Adjustment Range: 0 - 4 g
• Applicable Cartridge Weight: 3.5 - 8.5 g
• Anti-skating Range: 0 - 7 g

Other

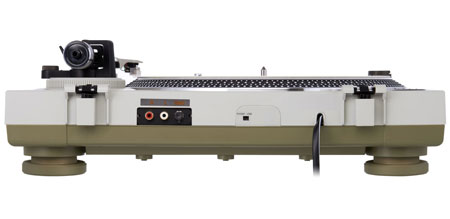

• Connectors
• Output jacks (L, R): RCA phono type
• GND terminal

Accessories

• Owner's manual
• Headshell/Cartridge
• 45 rpm adaptor
• Counterweight

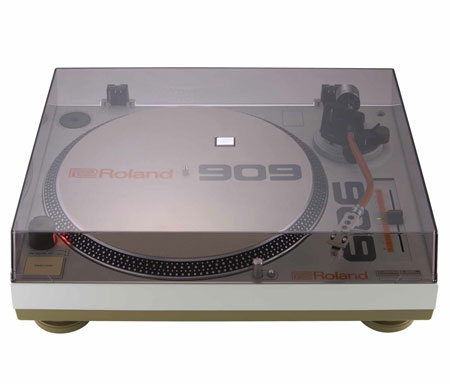

• Dust cover
• Turntable platter
• Slipmat
• RCA/GND cable

• Width:450 mm / 17-3/4 inches
• Depth: 350 mm / 13-13/16 inches
• Height: 150 mm / 5-15/16 inches
• Weight:9.8 kg / 21 lbs 10 oz

Pioneer DJ INTERFACE 2 Specifications:

• DVS Control:rekordbox dvs
• USB Bus Powered:Yes
• Included Software:rekordbox dj,rekordbox dvs
• Included Accessories:Power cord,AC adaptor,USB cable,Quick Start Guide,4 Audio cables,4 Rubber feet,2 Control Vinyl

Specifications

• Width:5.55 in
• Height:1.28 in
• Depth:5.03 in
• Weight:1.32 lb
• Soundcard:24 bit/96 kHz
• Frequency Range:20 - 20,000 Hz
• SN Ratio:112 dB (USB),103 dB (LINE),100 dB (PHONO)
• Distortion:< 0.002 % (USB),< 0.005 % (LINE),0.007 % (PHONO)

Terminals

InputsUSBOutputs

• 2 PHONO/LINE (RCA)
• 1 USB B port
• 2 LINE (RCA)

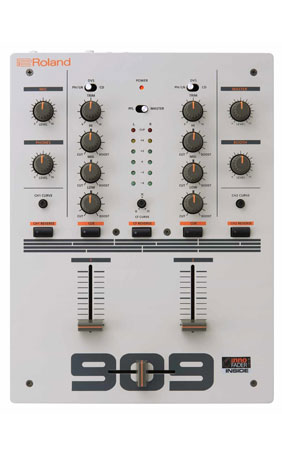

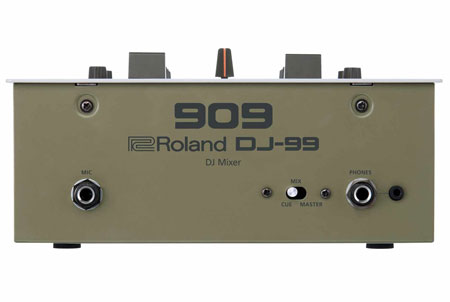

Roland DJ-99 2-Channel DJ Mixer Specifications

Nominal Input Level (OUTPUT MASTER 0 dBu)

• CH1, CH2 CD (L, R): -13 dBu
• CH1, CH2 LN (L, R): -17 dBu
• CH1, CH2 PH (L, R): -61 dBu
• CH1, CH2 DVS RETURN (L, R): -13 dBu
• MIC IN: -40 dBu

Maximum Input Level

• CH1, CH2 CD (L, R): 6 Vrms
• CH1, CH2 LN (L, R): 6 VrmsCH1, CH2 PH (L, R): 0.04 Vrms
• CH1, CH2 DVS RETURN (L, R): 6 VrmsMIC IN: 0.6 Vrms

Maximum Output Level (1 kHz, typ.)

• OUTPUT MASTER (L, R): +15 dBu
• OUTPUT BOOTH (L, R): +15 dBu
• PHONES: 31 mW

Recommended Load Impedance

• PHONES: 32 ohms

Frequency Response

• CH1, CH2 CD, LN, DVS RETURN: 20 Hz 20 kHz (+1/-2 dB)
• MIC IN: 20 Hz 20 kHz (+1/-3 dB)

Noise Level

• CH1, CH2 LN (L, R)->OUTPUT MASTER: 0.6 mVrms or less
• CH1, CH2 PH (L, R)->OUTPUT MASTER: 6 mVrms or less
• * TRIM level: center, 1 k ohms terminated, MASTER level: max, IHF-A, typ.

Distortion

• CH1, CH2 CD (L, R): 0.2 % or less
• CH1, CH2 LN (L, R): 0.2 % or less

Channel EQ (typ.)

• HI: 10 kHz +12 dB- -12 dB
• MID: 980 Hz +12 dB -28 dB
• LOW: 100 Hz +12 dB- -28 dB

Controller

• CH1, CH2 Input selectors
• CH1, CH2 MIC level knobs
• CH1, CH2 TRIM level knobs
• CH1, CH2 Channel EQ knobs HI
• CH1, CH2 Channel EQ knobs MID
• CH1, CH2 Channel EQ knobs LOW
• CH1, CH2 Channel Fader curve adjustment knobs
• CH1, CH2 Channel Fader reverse switches
• CH1, CH2 CUE buttons
• CH1, CH2 Channel Faders
• CH1, CH2 LN/PH selectors
• Crossfader
• PFL/MASTER selector
• PHONES level knob
• MASTER level knob
• BOOTH level knob
• Crossfader curve adjustment knob
• Crossfader reverse switch
• Headphones Monitoring selecto

Indicator

• POWER indicator
• PFL/MASTER level meter
• CH1, CH2 Channel Fader reverse indicators
• CH1, CH2 CUE indicators
• CH1, CH2 CUE indicators

Connectors

• MIC input jack: 1/4-inch phone type
• PHONES output jacks: Stereo 1/4-inch phone type, Stereo miniature phone type
• CH1, CH2 CD input jacks (L, R): RCA phono type
• CH1, CH2 LN/PH input jacks (L, R): RCA phono type
• CH1, CH2 DVS SEND jacks (L, R): RCA phono type
• CH1, CH2 DVS RETURN jacks (L, R): RCA phono type
• CH1, CH2 GND terminals
• MASTER output jacks (L, R): 1/4-inch phone type
• MASTER output jacks (L, R): 1/4-inch phone type
• POWER switch POWER connector Fuse holder/li>

Power Consumption

• 22 W

Fuse Rating

• Fuse Rating

Included accessories

• Owner's manual
• Power cord
• Extra fader knob: 3 pcs

Size and Weight

• Width: 224 mm / 8-7/8 inches
• Depth: 306 mm / 12-1/16 inches
• Height: 104 mm / 34-1/8 inches
• Weight: 3.3 kg / 17 lbs 5 oz

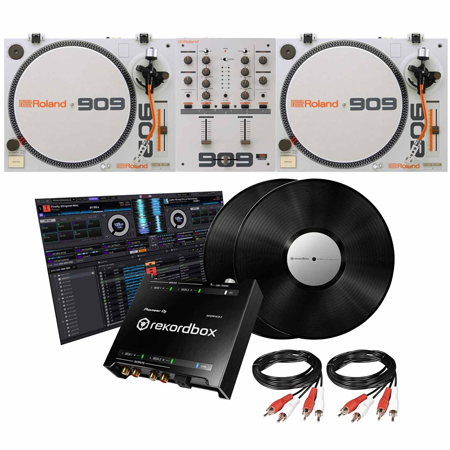

This Package Includes:

• (2) Roland TT-99 3-Speed 909 Special Edition Direct Drive Turntables
• (1) Pioneer DJ INTERFACE 2 Audio Interface with rekordbox dj and dvs
• (1) Roland DJ-99 2-Channel DJ Mixer
• (2) 3FT Dual RCA to RCA Cables

Each TT-99 Box Includes:

• (1) Roland TT-99 Direct Drive Turntable
• (1) Owner's manual
• (1) Headshell/Cartridge
• (1) 45 rpm adaptor
• (1) Counterweight
• (1) Dust cover
• (1) Slipmat
• (1) Turntable platter
• (1) RCA/GND cable

The INTERFACE 2 Box Includes:

• (1) Pioneer DJ INTERFACE 2 Audio Interface
• (2) License keys for rekordbox dj and rekordbox dvs
• (2) Rekordbox dvs control vinyl records
• (4) RCA Audio cables
• (1) USB cable
• (1) Power cable
• (1) User manual & warranty information card

The DJ-99 Box Includes:

• (1) Owner's manual
• (1) Power cord
• (1) Extra fader knob: 3 pcs
