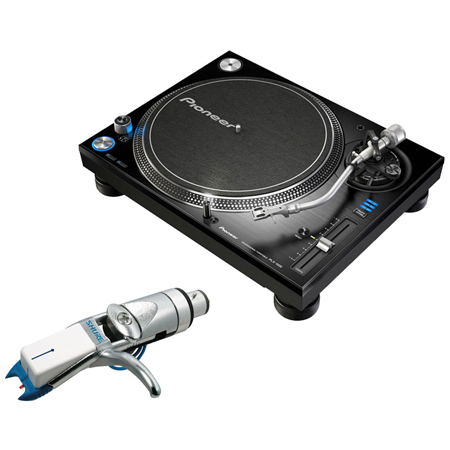

Pioneer PLX-1000 + Shure Whitelabel Cartridge

Overview

Package Includes

• 1 x Pioneer PLX-1000
• 1 x Shure Whitelabel Cartridge

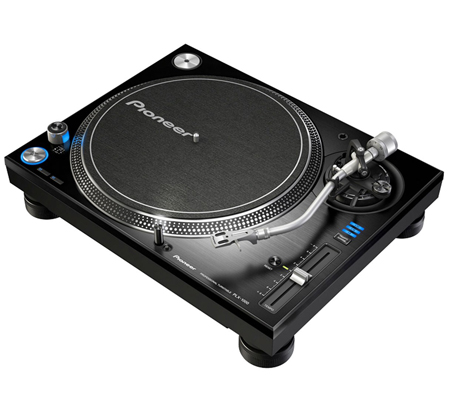

Pioneer PLX-1000

The DJ quality PLX-1000 direct drive analog turntable is designed for DJs who enjoy the look, feel, and performance of vinyl for music playback. The model offers a highly familiar, user-friendly control layout, high-torque direct drive mechanism, and exceptional audio playback quality. Combine the PLX-1000 with a Pioneer professional series DJM mixer for an ideal system for true vinyl enthusiasts.

User-Friendly Control Layout

The PLX-1000 provides a user friendly layout familiar to top DJs of the past and present, providing quick tempo control capability on the right side of the player, start/stop button on the left side, and a high-torque platter with a lighted speed guide

High-Torque Direct Drive System

The direct drive mechanism of the PLX-1000 provides high-torque resulting in stable rotation and exceptional control. The turntable can achieve a starting torque of at least 4.5kg/cm and can reach its fixed rotation speed within 0.3 seconds (at 33 1/3 rpm).

Sound Quality Design

To create an extremely stable player and prevent vibration, Pioneer utilized a heavy-mass zinc die-cast chassis for the top section of the player, reinforced with a bottom section made of 8-mm thick resin. The base of the unit was further enforced with 9-mm thick vibration-damping material that results in extremely stable playback. The tone arm also received great attention in build quality and design to maximize performance, using rubber insulation to minimize howling effects during audio playback. The RCA jacks feature gold-plated machine-cut parts for low impedance for excellent sound quality output.

Tempo Control

The player provides a range of tempo adjustments from ±8% and ±16% to ±50%, giving users a range of pitch speeds. A "RESET" button for tempo sits next to the tempo slider for instant ±0% fixed rotation speed.

Detachable Power And Audio Cables

The PLX-1000 is built with a detachable power and audio cable connection for increased convenience, especially at times when the unit is being moved around. Users are also able to interchange cables to further customize the sound quality.

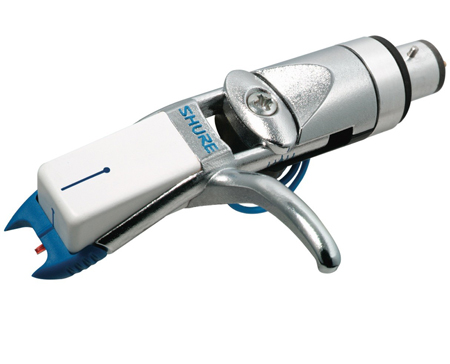

Shure Whitelabel Cartridge

The Shure White label cartridge is a truly revolutionary piece of DJ technology. It is an optimal choice for Digital DJs, providing superb tracking of time-coded records, and minimal sonic coloration when mixing between digital files and analog records.

Tailored for the club environment, White label features sonic characteristics including solid drop bass, flat mids, and accented highs. With a sleek and ergonomic design, the cartridge additionally delivers higher track ability, lower tone-arm resonance, and better skip resistance. It also includes an adjustable stylus overhang, reliable electrical contact, and improved stylus visibility.

Features

Pioneer PLX-1000

• Power Requirements : AC 110-120V/220-240V, 50 Hz/60Hz
• Power Consumption : 9W
• Output : RCA x 1
• Main Unit Weight : 28.88 lbs.
• Maximum Dimensions : 17.83" (W) x 6.25" (H) x 13.89" (D)

Turntable

• Drive Method : Quartz lock serve type direct drive
• Wow and Flutter : 0.1% or less WRMS (JIS WTD)
• Motor : 3-phase brushless DC motor
• S/N Ratio : 70dB (DIN-B)
• Braking System : Electronic brake
• Turntable : Aluminum die-casting diameter: 13.07"
• Rotation Speed : 33-1/3rpm, 45rpm
• Starting Torque : 4.5kg-cm or more
• Rotation Speed Adjustment Range : ±8%, ±16%, ±50%
• Start Time : 0.3 seconds (at 33 1/3rpm)

Tone Arm

• Arm Type : Universal type S-shape tone arm, gimbal-supported type bearing structure, static type balance
• Tracking Error : Within 3°
• Effective Length : 9.05"
• Arm Height Adjustment Range : 0.23"
• Overhang : 0.59"
• Stylus Pressure Variable Range : 0oz to 0.14oz (1 scale 0, 0.03oz)

Proper Cartridge Weight

• Single cartridge : 0.12oz to 0.45oz (When shell weight is used : 0.12oz to 0.22oz)
• When only balanced weight is used : 0.21oz to 0.35oz (When sub weight is used : 0.33 to 0.45oz)

Shure Whitelabel Cartridge

• For club DJ applications
• Spherical stylus with 0.7 mm radius
• S-shaped tone arm with anti-skate
• Integrates the head shell and cartridge into one piece
• Innovative features for today's DJs and turntables
• The new standard for club DJs
• Cartridges perform more accurately
• Requires less tracking force to stay in the record groove
• Less destruction to record groove
• Skip Resistance : High
• Output : High
• Record Wear : Very low
• Sound Emphasis : Solid drop bass with detailed mids and highs
• Replacement Stylus : N-WHLB
• Frequency Response : - 20-20,000Hz
• Colors : Dark Blue
• Tracking Force Range : 1.5-3 grams
