Pioneer PLX-1000 + Decksaver + Cartridge

Overview

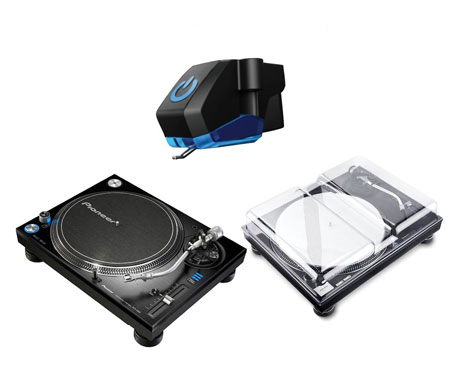

Package Includes

• 1 x Pioneer PLX-1000
• 1 x Decksaver for PLX-1000
• 1 x Stanton 750 DJ Cartridge

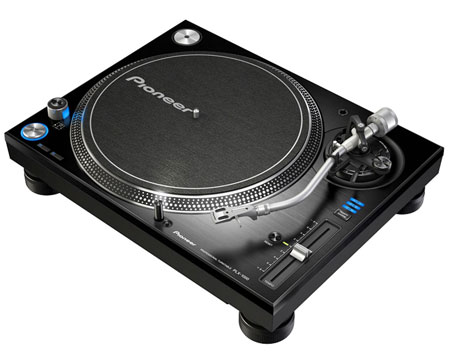

Pioneer PLX-1000

The DJ quality PLX-1000 direct drive analog turntable is designed for DJs who enjoy the look, feel, and performance of vinyl for music playback. The model offers a highly familiar, user-friendly control layout, high-torque direct drive mechanism, and exceptional audio playback quality. Combine the PLX-1000 with a Pioneer professional series DJM mixer for an ideal system for true vinyl enthusiasts.

User-Friendly Control Layout

The PLX-1000 provides a user friendly layout familiar to top DJs of the past and present, providing quick tempo control capability on the right side of the player, start/stop button on the left side, and a high-torque platter with a lighted speed guide

High-Torque Direct Drive System

The direct drive mechanism of the PLX-1000 provides high-torque resulting in stable rotation and exceptional control. The turntable can achieve a starting torque of at least 4.5kg/cm and can reach its fixed rotation speed within 0.3 seconds (at 33 1/3 rpm).

Sound Quality Design

To create an extremely stable player and prevent vibration, Pioneer utilized a heavy-mass zinc die-cast chassis for the top section of the player, reinforced with a bottom section made of 8-mm thick resin. The base of the unit was further enforced with 9-mm thick vibration-damping material that results in extremely stable playback. The tone arm also received great attention in build quality and design to maximize performance, using rubber insulation to minimize howling effects during audio playback. The RCA jacks feature gold-plated machine-cut parts for low impedance for excellent sound quality output.

Tempo Control

The player provides a range of tempo adjustments from ±8% and ±16% to ±50%, giving users a range of pitch speeds. A "RESET" button for tempo sits next to the tempo slider for instant ±0% fixed rotation speed.

Detachable Power And Audio Cables

The PLX-1000 is built with a detachable power and audio cable connection for increased convenience, especially at times when the unit is being moved around. Users are also able to interchange cables to further customize the sound quality.

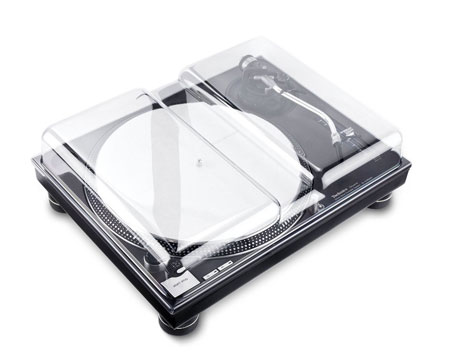

Decksaver for PLX-1000

Decksaver covers are tailor-made to exacting standards to fit each unit like a glove. Rather than using cheaper inferior acrylic. each one is made from Polycarbonate - a very hardwearing plastic used in bullet proof glass - and made to fit your gear as closely as possible. The use of Polycarbonate means that thinner material can be used. making for discrete. strong yet attractive protection for your decks.Indeed, great care is taken to trim each Decksaver to achieve the best fit and still leave cables in place.

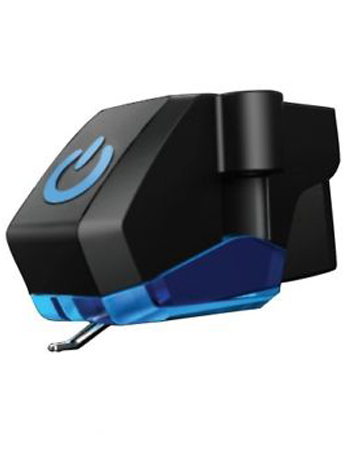

Stanton 750 DJ Cartridge

The Stanton 750 professional cartridge is designed to exceed the demands of the professional DJ and deliver a wide dynamic range of audio for the vinyl record enthusiast. A professional grade cartridge for digital mixing, scratch performance and vinyl recordings, the Stanton 750 delivers consistent sonic purity for all applications. Developed and optimized for all professional turntables, including the Stanton Turntable line up, with its Deckadance DVS DJ software, the 750 cartridge continues the legacy of Stanton excellence and innovation.

Features:

Pioneer PLX-1000

• Power Requirements : AC 110-120V/220-240V, 50 Hz/60Hz
• Power Consumption : 9W
• Output : RCA x 1
• Main Unit Weight : 28.88 lbs.
• Maximum Dimensions : 17.83" (W) x 6.25" (H) x 13.89" (D)

Turntable

• Drive Method : Quartz lock serve type direct drive
• Wow and Flutter : 0.1% or less WRMS (JIS WTD)
• Motor : 3-phase brushless DC motor
• S/N Ratio : 70dB (DIN-B)
• Braking System : Electronic brake
• Turntable : Aluminum die-casting diameter: 13.07"
• Rotation Speed : 33-1/3rpm, 45rpm
• Starting Torque : 4.5kg-cm or more
• Rotation Speed Adjustment Range : ±8%, ±16%, ±50%
• Start Time : 0.3 seconds (at 33 1/3rpm)

Tone Arm

• Arm Type : Universal type S-shape tone arm, gimbal-supported type bearing structure, static type balance
• Tracking Error : Within 3°
• Effective Length : 9.05"
• Arm Height Adjustment Range : 0.23"
• Overhang : 0.59"
• Stylus Pressure Variable Range : 0oz to 0.14oz (1 scale 0, 0.03oz)

Proper Cartridge Weight

• Single cartridge : 0.12oz to 0.45oz (When shell weight is used : 0.12oz to 0.22oz)
• When only balanced weight is used : 0.21oz to 0.35oz (When sub weight is used : 0.33 to 0.45oz)

Decksaver for PLX-1000

• Dust cover especially adapted to the Technics SL1200 / 1210 and Pioneer PLX-1000 turntable
• Strong, attractive protection for your gear
• Essential for protection and reducing the risk of damage caused by dust
• Fits the Technics SL-1200 / SL-1210 and the Pioneer PLX-1000 turntables
• Designed and manufactured in the United Kingdom
• A unique must-have for clubs and bedroom DJ's alike
• Clear / Smoked tint

Stanton 750 DJ Cartridge

• Stylus Type: Spherical .7 mil Special High; Polish Diamond Tip
• Frequency Response: 20Hz to 20KHz
• Output Nominal Output: @ 5.5mV @ 1kHz
• Separation: Channel Separation @ >27dB (1kHz @ 5cm/sec)
• Record Wear: ultra low
• Sound Emphasis: big bass
• Balance: Channel Balance @ Within 1.2dB
• Tracking Force: 2.5g to 4.0g
• DC Resistance: 830 ohms
• Inductance: 860 mH
• Cartridge Weight: 5.8g
• Recommended Load: pF 47k ohms /275pF (industry standard)
