Electro Voice ZXA1 Power Pack

Description

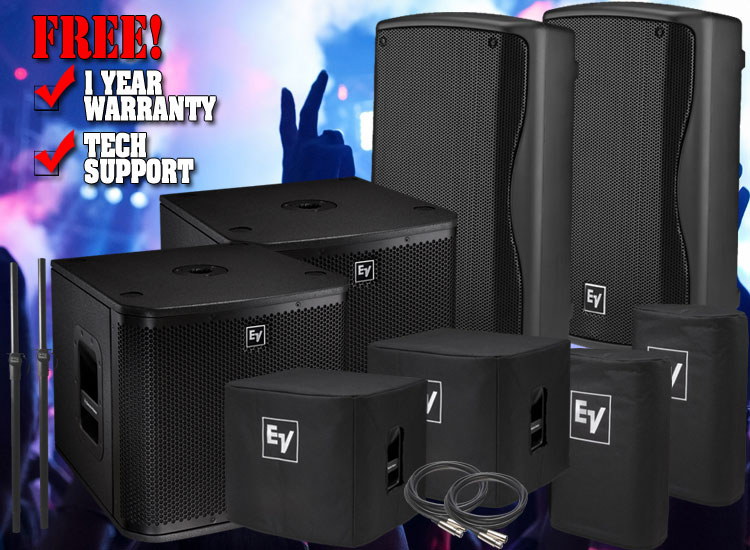

SYSTEM INCLUDES TWO ELECTRO VOICE ZXA1 POWERED SPEAKERS, TWO ZXA1 SUB POWERED SUBWOOFERS, TWO ZXA1 SPEAKER COVERS, TWO ZXA1 SUB SUBWOOFER COVERS, TWO POLE MOUNTS & TWO CABLES.

ELECTRO VOICE ZXA1 POWERED SPEAKER
• LCD display and unique single-knob DSP control with presets – quickly optimize ZLX to suit your performance style and space
• Input level meters and independent amplifier control- ensure optimal gain structure in seconds
• EV-engineered components matched with a custom-built 1000-W Class-D amplifier for best-in-class sound
• Lightweight, super-durable composite construction with unique hi/lo grip design for effortless pole mounting and portability
• Patented split-baffle design for superior driver time alignment and enhanced sonic impact and intelligibility
• 1000 W (Class D); 126 dB max SPL; 50 Hz – 20 kHz
• 12" woofer and 1.5" high-frequency titanium compression driver
• Frequency Range 50 Hz - 20 kHz
• Maximum SPL 126 dB
• Power Rating 1000 W
• Frequency Response 65 Hz - 18 kHz
• Coverage (Nominal -6 dB) H 90 °
• Coverage (Nominal -6 dB) V 60 °
• LF Transducer EVS-12K, 300 mm (12 in) Woofer
• HF Transducer DH-1K
• Connector Type (2) XLR/TRS Combo Jack, (1) 3.5 mm Input, and (1) XLR link Output
• Enclosure Material Polypropylene
• Grill 18 Gauge Steel with Black Powder Coat
• Height: 24.02"
• Width: 14.02"
• Depth: 14.02"
• Weight Net: 34.39 lbs
• PDF Manual

  ELECTRO VOICE ZXA1 SUB POWERED SUBWOOFER
• Integrated 700-W Class-D amplifier
• EVS-12S 12-inch woofer
• 126 dB maximum SPL
• Dual XLR stereo inputs and outputs
• Pole mount for full-range systems
• 9-ply/15-mm wood enclosure, internally braced, with textured paint
• 46 pounds, with integral handle for easy carrying
• Freq. Range (-10 dB) : 44Hz - 118Hz
• Coverage : Omnidirectional
• Amplifier Power Output : 700W
• LF Transducer : (1) EVS-12S, 12" Woofer
• High Pass Frequency : 100 Hz, User Selectable
• Enclosure Material : 9-ply/0.5" wood
• Connectors : (2) XLR Stereo Input, (2) XLR Stereo Output
• Power Requirement 120V : 90V - 132V, 1.0A (1/8 power), 50-60Hz
• Power Requirement 230V : 190V-264V, 0.6A (1/8 power), 50-60Hz
• Product Weight : 46 lbs
