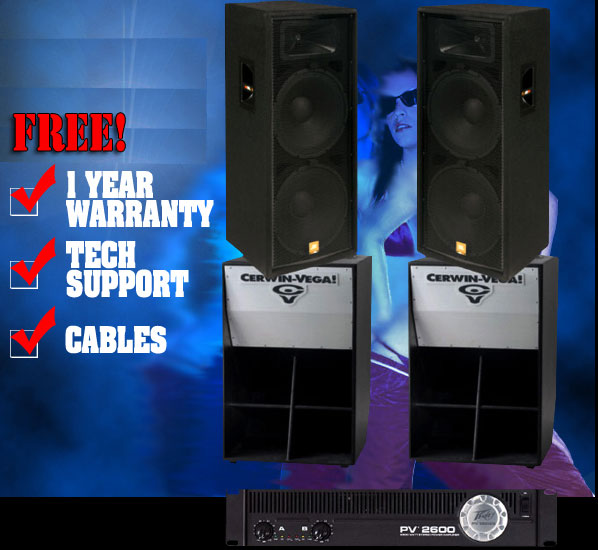

Vega Punch Pack

Overview

• Two Cerwin Vega JE-36
  • 18" PORTABLE EARTHQUAKE FOLDED HORN
  • PERFECT FOR PA/PLAYBACK/DISCO
  • Power Handling:
    Program: 500 Watts
    Peak: 1000 Watts

  • 106 dB SENSITIVITY @ 1 WATT/1 METER
  • USE WITH ANY CV'S FULL RANGE SYSTEMS TO OPTIMIZE EXTENDED BASS RESPONSE
  • Connections:
    (2) Neutrik SpeakonTM 4-pin connector with pin selector option
    (2) 1/4" phone jacks.
  • UNIVERSAL POLE MOUNT
  • AVAILABLE IN GRAY CARPET OR BLACK TEXTURED PAINT FINISH
• Two JBL JRX-125
  • System Type: Dual 15" 2-way, sound reinforcement speaker
  • Frequency Range (-10 dB):2 35 Hz - 16 kHz
  • Frequency Response (±3 dB):2 45 Hz - 12 kHz
  • Sensitivity (1w/1m): 100 dB SPL
  • Nominal Impedance: 4
  • Power Capacity:1 500 watts
  • Peak Power Capacity:1 2000 watts
  • Maximum SPL: 133 dB
  • Nominal Dispersion: 90° x 50°
  • Crossover Frequency: 2 kHz
  • Dimensions (H x W x D):3 1092 mm x 464 mm x 432 mm (43 in x 18.3 in x 17 in)
  • High Frequency Driver: JBL 2412, 1" exit compression driver mounted on Progressive
  • Transition™ Waveguide
  • Low Frequency Driver: JBL M115-8A x 2
    Input Connectors: Neutrik® Speakon® NL-4 (x1); ¼" TS phone jack (x1); parallel.
  • Enclosure Construction: 19 mm (¾ in) MDF (Medium Density Fiberboard); with glued and mechanically fastened joint detail; covered in black carpet.
  • Grille: 18-gauge, powder-coated steel.
• One Peavey PV-2600
  • Stereo mode: 4 ohms, 900 watts RMS x 2

  • Stereo mode: 8 ohms, 540 watts RMS x 2

  • Bridge mono mode: 4 ohms, 2600 watts RMS

  • Inputs: XLR, 1/4 inch and barrier strip

  • Detented input gain control

  • Binding post and Speakon output connectors

  • Separate Speakon mono bridge output

  • Mode switch for stereo or bridge operation

  • Low-cut filter switch for 40Hz low cut filter

  • Two built-in crossovers with 150Hz switch

  • Thru/low output jacks and high output jacks

  • LED indicators for input signal, DDT and power

  • Peavey's famous DDT compression system

  • Total harmonic distortion: less than 0.03% 20Hz to 20kHz, 10dB below rated power in stereo mode, both channels driven

  • Frequency response: 20Hz to 20kHz

  • Damping factor: greater than 300

  • Rack spaces: 2
• All cables included
