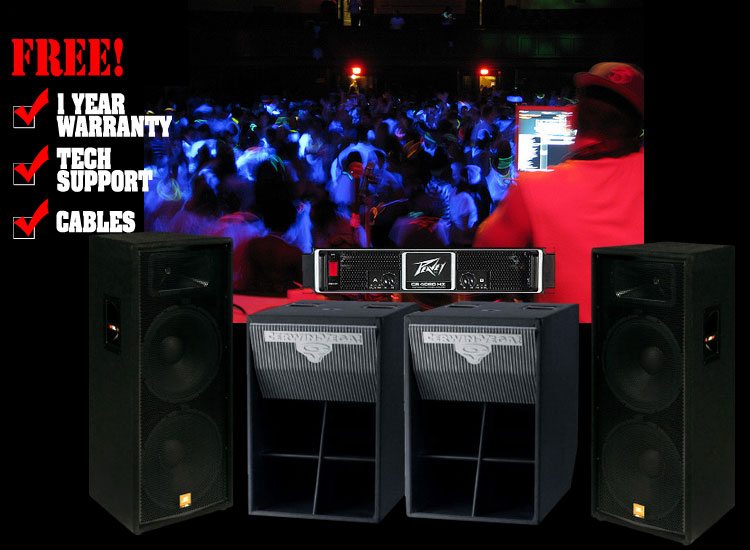

Vega Pound Pack

Overview

• Two Cerwin Vega AB-36
  • 18" FOLDED HORN BASS SYSTEM
  • PERFECT FOR PA/PLAYBACK/DISCO
  • Power Handling:
    Program: 750 Watts
    Peak: 1500 Watts
  • HEAT SINK DESIGN PROVIDES INCREASED THERMAL POWER HANDLING WITH DECREASED POWER COMPRESSION
  • 108 dB SENSITIVITY @ 1 WATT/1 METER
  • USE WITH ANY CV'S FULL RANGE SYSTEMS TO OPTIMIZE EXTENDED BASS RESPONSE
  • Connections:
    (2) Neutrik SpeakonTM 4-pin connector with pin selector option
    (2) 1/4" phone jacks.
  • UNIVERSAL POLE MOUNT
  • NEW CABINET AND CASTER DESIGN FOR EASY MOBILITY
  • AVAILABLE IN GRAY CARPET OR BLACK TEXTURED PAINT FINISH
• Two JBL JRX-125
  • System Type: Dual 15" 2-way, sound reinforcement speaker
  • Frequency Range (-10 dB):2 35 Hz - 16 kHz
  • Frequency Response (±3 dB):2 45 Hz - 12 kHz
  • Sensitivity (1w/1m): 100 dB SPL
  • Nominal Impedance: 4
  • Power Capacity:1 500 watts
  • Peak Power Capacity:1 2000 watts
  • Maximum SPL: 133 dB
  • Nominal Dispersion: 90° x 50°
  • Crossover Frequency: 2 kHz
  • Dimensions (H x W x D):3 1092 mm x 464 mm x 432 mm (43 in x 18.3 in x 17 in)
  • High Frequency Driver: JBL 2412, 1" exit compression driver mounted on Progressive
  • Transition™ Waveguide
  • Low Frequency Driver: JBL M115-8A x 2
    Input Connectors: Neutrik® Speakon® NL-4 (x1); ¼" TS phone jack (x1); parallel.
  • Enclosure Construction: 19 mm (¾ in) MDF (Medium Density Fiberboard); with glued and mechanically fastened joint detail; covered in black carpet.
  • Grille: 18-gauge, powder-coated steel.
• One Peavey CS-4080HZ
  • 2-rack-space stereo power amp featuring DDT™
  • 2 temperature-dependant variable speed fans
  • 2040 watts (rms) per channel at 4 ohms
  • 1250 watts per channel at 8 ohms
  • 4080 watts at 8 ohms bridged
  • 5-year warranty
• All cables included
