RCF TT 808-AS 8" Powered Subwoofers Dual Package

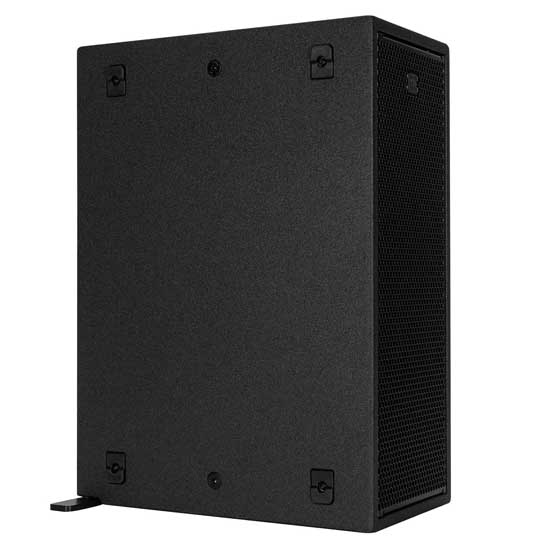

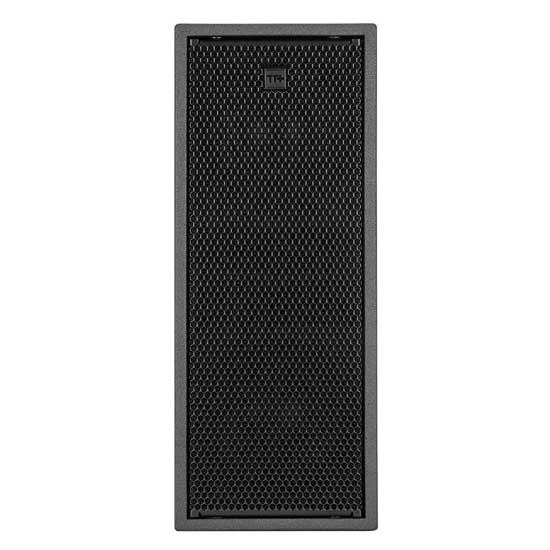

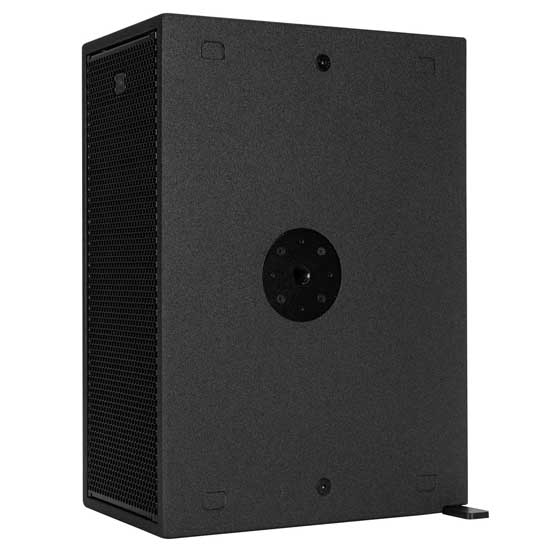

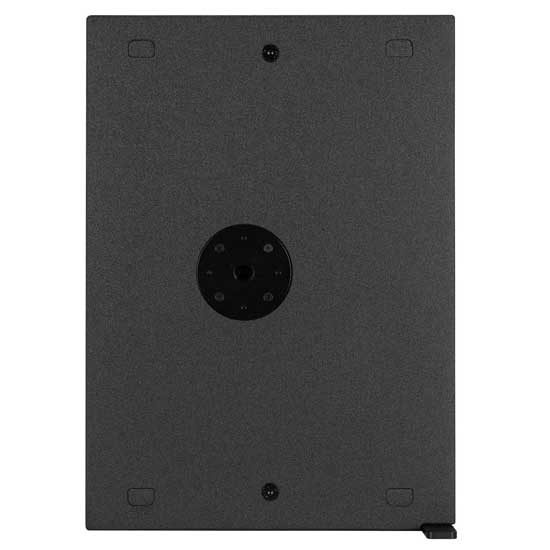

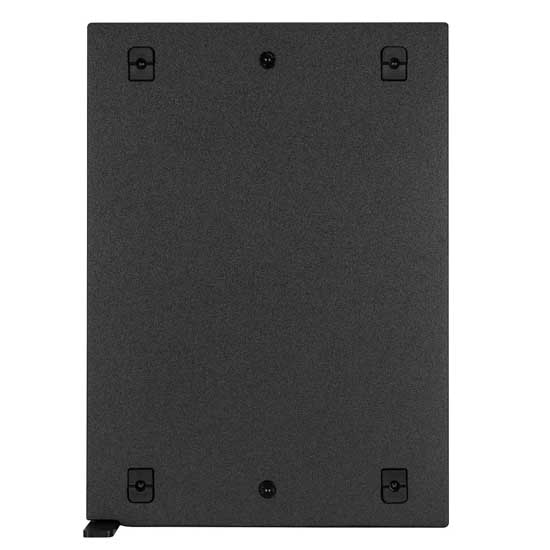

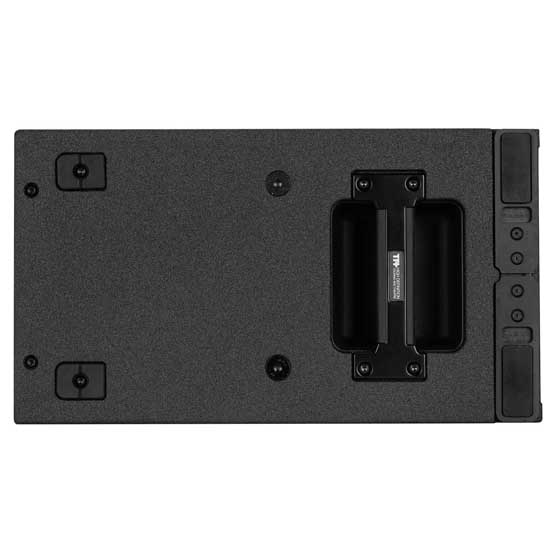

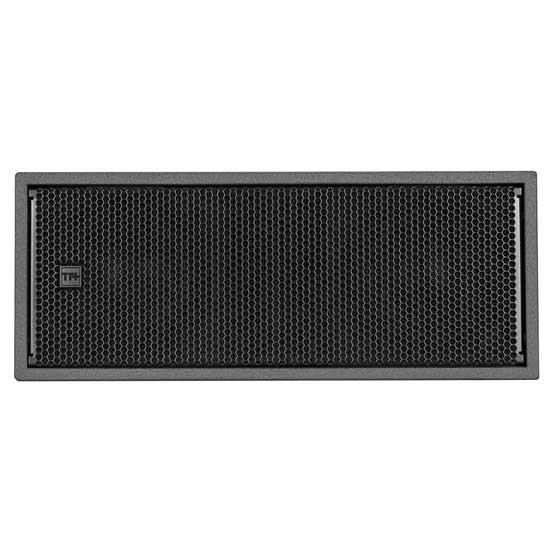

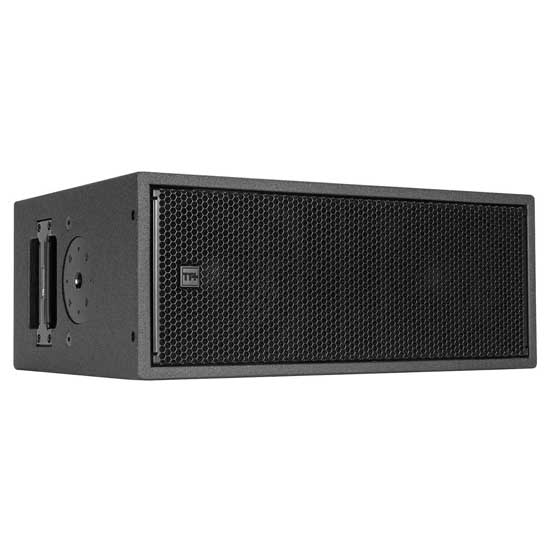

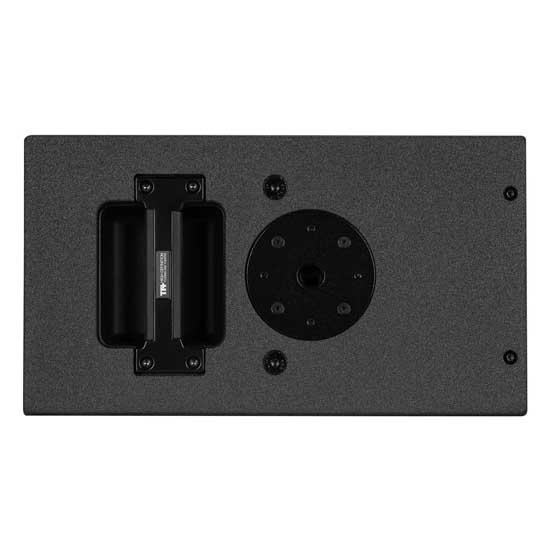

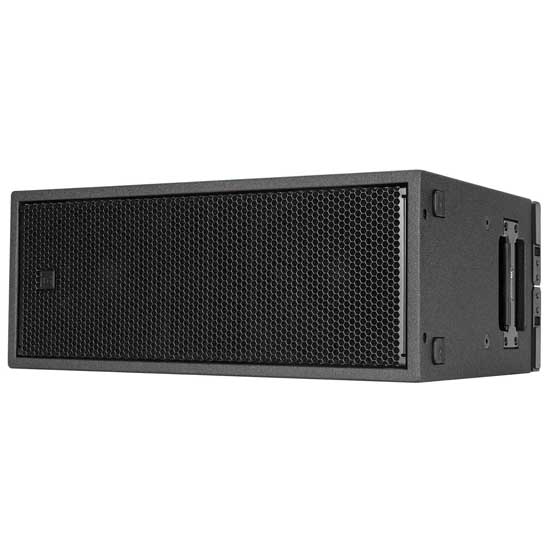

TT 808-AS is a compact low-profile high-performance active subwoofer. It features two vented-loaded 8" cone woofers powered by a 1000 Watts two-channel amplifier -one for each woofer- on a baltic birch plywood cabinet painted with black polyurea and weatherproof treatment. Management and tuning are available via RDNet software or using the two preset buttons, a polarity button, and a variable delay accessible from the back panel. The cabinet features rubber feet on two sides and two threaded pole-mounts for horizontal and vertical placement. Two stabilizing brackets make the vertical placement stable and firm. TT 808-AS can be used stand-alone, in subwoofer arrays, or as the low-frequency complement for TT 515-A speaker.

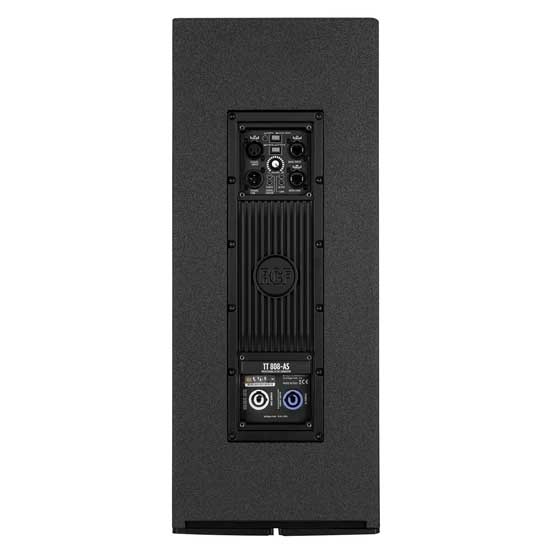

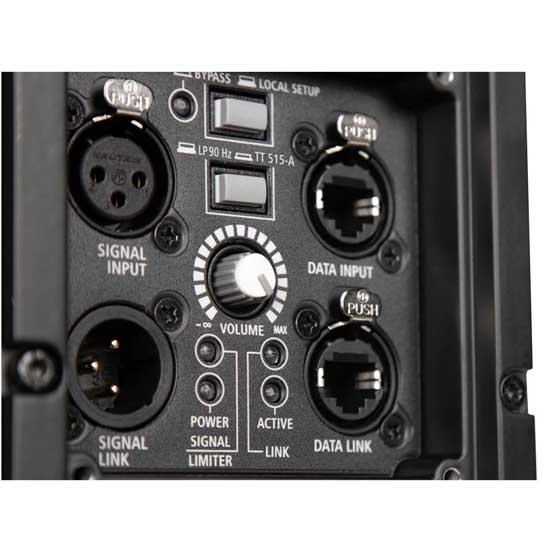

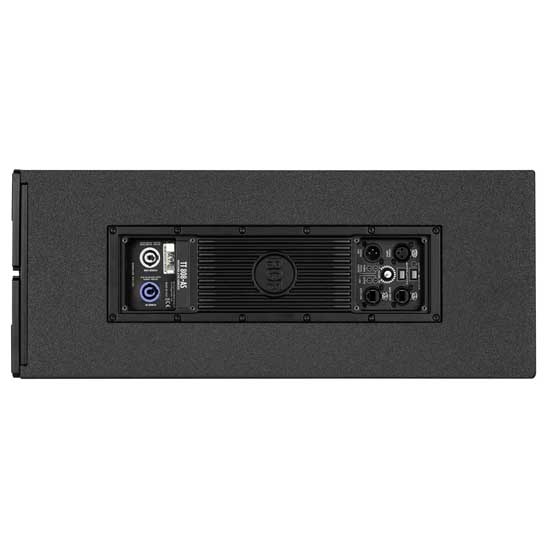

RCF subwoofers are the first choice of many sound engineers, thanks to the very high SPL levels at very low frequencies, smaller dimensions compared to others in its category. Self-powered design, RDNet remote control, easy configuration of subwoofer arrays (i.e. cardioid subs), and impressive size/weight to SPL output ratio create an engaging, immersive experience for any audience. The amplifier integrates a low-noise 32-bit DSP circuit, controlled through the RCF proprietary RDNet Networked Management software. Internal DSP easily handles soft clipping limiters, RMS limits, polarity, amplitude, delay, and equalization. All settings, monitoring, and more advanced features, such as the subwoofer array configurator, are available inside RDNet. The rear control panel can be used to adjusts volume, low pass, TT 515-A custom crossover and bypass. The regulated power supply guarantees full power from 100 V to 260 V. The amplifier is housed in a unique Vibrostop floating aluminum panel for extra protection during transportation. Internal DSP processing includes multiple EQs, delays, crossovers, and a special BMC processing for a coherent distribution of sound without phase distortion and deep, tight bass at any volume. The cabinet is made of high-quality birch plywood with weather-proof outer treatment. The subs are lightweight and stackable, with eight M10 threaded inserts to allow easy rigging. Two M20 threaded pole mounts on the top and side allow the woofer to be used in vertical or horizontal configurations, with rubber feet on both sides. Two stabilizing brackets make the vertical placement stable and firm. The heavy-duty coating, the powder-coated metal grille, and the rugged structure of the cabinet withstand long-term use and transportation. Separate housing for the amplifier guarantees component efficiency and reliability. An acoustically transparent sound foam backing on the inside of the grille ensures protection from dust and humidity.

Features:

• 129 dB max SPL.
• 40 Hz to 400 Hz frequency range.
• 1000 W RMS Class-D Amplifier.
• 2 x 8" neodymium woofers, 2.5" v.c.
• RDNet on board.
• Bass Motion Control excursion management.
• Flexible Rigging.
• Rotatable TT+ Logo.

Specification

Acoustical specifications

• Frequency Response: 40 Hz ÷ 400 Hz
• Max SPL @ 1m: 129 dB

Transducers

• Woofer: 2 x 8" neo, 2.5" v.c

Input/Output section

• Input signal: bal/unbal
• Input connectors: XLR, RDNet Ethercon
• Output connectors: XLR, RDNet Ethercon
• Input sensitivity: -2 dBu/+4 dBu

Processor section

• Protections: Excurs.
• Limiter: Fast Limiter
• Controls: Gain, Equalization, ByPass on board
• RDNet: Yes

Power section

• Total Power: 2000 W Peak, 1000 W RMS
• Low frequencies: 2000 W Peak, 1000 W RMS
• Cooling: Convection
• Connections: Powercon IN/OUT

Standard compliance

• CE marking: Yes

Physical Specifications

• Cabinet/Case Material: Baltic birch plywood
• Hardware: 2X M20 TOP AND SIDE / 8X M10 2X SIDE
• Handles: 2 1 X SIDE
• Grille: Steel
• Color: Black

Size

• Height: 243.5 mm / 9.59 inches
• Width: 603.5 mm / 23.76 inches
• Depth: 430 mm / 16.93 inches
• Weight: 20 kg / 44.09 lbs

Shipping information

• Package Height: 290 mm / 11.42 inches
• Package Width: 480 mm / 18.9 inches
• Package Depth: 650 mm / 25.59 inches
• Package Weight: 21 kg / 46.3 lbs

This Package Includes:

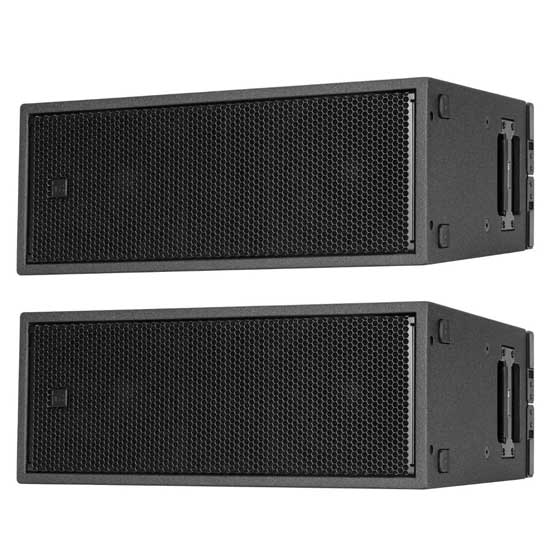

• (2) RCF TT 808-AS Professional Active Dual 8" Powered Subwoofers
