RCF TT 515-A with TT 808-AS Package

Flexibility, power, and compactness make the TT 515-A ideal for installed and portable professional applications where size and weight are critical factors. This approach combines the advantages of TT+ technology such as controlled dispersion, outstanding clarity and extreme power, multiple flexible rigging accessories, weatherproof protection, and RDNET real-time monitoring and management software with recallable presets. Its transducer configuration pairs two custom-loaded 5-inch cone drivers to a rotatable CMD waveguide surrounding a titanium 1.75-inch high-frequency compression driver. Whether it's used as a compact main system, as fills, or surrounds in a larger system, TT 515-A is quick to deploy and fast to tune. The two-channel 2000 W (1000 W RMS) amplifier is small, ultra-silent, and fanless. Producing a Max SPL of 127 dB, is perfect for 3D/immersive sound, nearfield systems, and productions that demand extreme sound quality. The rotatable 100x70 degree pattern reaches a wide area, perfectly matching the directivity of the woofers. The internal DSP has a whole range of protections for the transducers and includes special FiRPHASE and BMC processing to achieve coherent distribution of sound without phase distortion and deep, tight bass at any volume.

The amplifier integrates a low-noise 32-bit DSP circuit, controlled through the RCF proprietary RDNet network to easily handle soft clipping limiters, RMS limits, polarity, amplitude, timing, and equalization. All the settings, monitoring, and more advanced features are available inside the RDNet Networked Management software. The available control panel on the back adjusts volume, high-pass, and bypass. The regulated power supply guarantees full power from 100 V to 260 V. The amplifier is housed in a unique Vibrostop floating aluminum panel for extra protection during transportation. Use it as a compact and powerful main system or to supplement a larger system. The waterproof cabinet is built in high-strength baltic birch plywood coated with black, robust, and scratch-resistant polyurea paint. Attached to a solid machined aluminum structure at the back, the amplifier heat dissipation is efficient and the cabinet is sturdy and stiff. A strong powder-coated metal grille protects the front, and an acoustically transparent sound foam backing on the inside of the grille ensures protection from dust and humidity.

RCF TT 515-A Dual 5" Powered Speaker Features:

• 127 dB max SPL.
• 100° x 70° coverage.
• LF 2 x 5" neodymium woofer, 2" voice coil.
• HF 1.75" titanium comp. driver.
• 2 x Class-D amplifiers, 1000 Watts RMS total power.
• 70 - 20.000 Hz frequency range.
• RDNet on board.
• FiRPHASE and Bass Motion Control.

RCF TT 515-A Product Specifications:

Acoustical Specifications

• Frequency Response: 70 Hz ÷ 20000 Hz
• Max SPL @ 1m: 127 dB
• Horizontal coverage angle: 100°
• Vertical coverage angle: 70°

Transducers

• Compression Driver: 1 x 1.0" neo, 1.75" v.c
• Woofer: 2 x 5.0" neo, 2.0" v.c

Input/Output Section

• Input signal: bal/unbal
• Input connectors: XLR, RDNet Ethercon
• Output connectors: XLR, RDNet Ethercon
• Input sensitivity: -2 dBu/+4 dBu

Processor Section

• Crossover Frequencies: 1200
• Protections: Excurs.
• Limiter: Fast Limiter
• Controls: Bypass, Linear/High Pass, Volume, RDnet on board
• RDNet: Yes

Power Section

• Total Power: 2000 W Peak, 1000 W RMS
• High frequencies: 600 W Peak, 300 W RMS
• Low frequencies: 1400 W Peak, 700 W RMS
• Cooling: Convection
• Connections: Powercon IN/OUT

Physical Specifications

• Cabinet/Case Material: Baltic birch plywood
• Hardware: 2X M10 TOP AND BOTTOM / 2X PIN D.10
• Handles: 2 TOP AND BOTTOM
• Grille: Steel
C
• olor: Black

Size

• Height: 456 mm / 17.95 inches
• Width: 154 mm / 6.06 inches
• Depth: 237.5 mm / 9.35 inches
• Weight: 9.8 kg / 21.61 lbs

Shipping Information

• Package Height: 510 mm / 20.08 inches
• Package Width: 290 mm / 11.42 inches
• Package Depth: 200 mm / 7.87 inches
• Package Weight: 11.3 kg / 24.91 lbs

RCF TT 808-AS

TT 808-AS is a compact low-profile high-performance active subwoofer. It features two vented-loaded 8" cone woofers powered by a 1000 Watts two-channel amplifier -one for each woofer- on a baltic birch plywood cabinet painted with black polyurea and weatherproof treatment. Management and tuning are available via RDNet software or using the two preset buttons, a polarity button, and a variable delay accessible from the back panel. The cabinet features rubber feet on two sides and two threaded pole-mounts for horizontal and vertical placement. Two stabilizing brackets make the vertical placement stable and firm. TT 808-AS can be used stand-alone, in subwoofer arrays, or as the low-frequency complement for TT 515-A speaker.

RCF subwoofers are the first choice of many sound engineers, thanks to the very high SPL levels at very low frequencies, smaller dimensions compared to others in its category. Self-powered design, RDNet remote control, easy configuration of subwoofer arrays (i.e. cardioid subs), and impressive size/weight to SPL output ratio create an engaging, immersive experience for any audience. The amplifier integrates a low-noise 32-bit DSP circuit, controlled through the RCF proprietary RDNet Networked Management software. Internal DSP easily handles soft clipping limiters, RMS limits, polarity, amplitude, delay, and equalization. All settings, monitoring, and more advanced features, such as the subwoofer array configurator, are available inside RDNet. The rear control panel can be used to adjusts volume, low pass, TT 515-A custom crossover and bypass. The regulated power supply guarantees full power from 100 V to 260 V. The amplifier is housed in a unique Vibrostop floating aluminum panel for extra protection during transportation. Internal DSP processing includes multiple EQs, delays, crossovers, and a special BMC processing for a coherent distribution of sound without phase distortion and deep, tight bass at any volume. The cabinet is made of high-quality birch plywood with weather-proof outer treatment. The subs are lightweight and stackable, with eight M10 threaded inserts to allow easy rigging. Two M20 threaded pole mounts on the top and side allow the woofer to be used in vertical or horizontal configurations, with rubber feet on both sides. Two stabilizing brackets make the vertical placement stable and firm. The heavy-duty coating, the powder-coated metal grille, and the rugged structure of the cabinet withstand long-term use and transportation. Separate housing for the amplifier guarantees component efficiency and reliability. An acoustically transparent sound foam backing on the inside of the grille ensures protection from dust and humidity.

Features:

• 129 dB max SPL.
• 40 Hz to 400 Hz frequency range.
• 1000 W RMS Class-D Amplifier.
• 2 x 8" neodymium woofers, 2.5" v.c.
• RDNet on board.
• Bass Motion Control excursion management.
• Flexible Rigging.
• Rotatable TT+ Logo.

Specification

Acoustical specifications

• Frequency Response: 40 Hz ÷ 400 Hz
• Max SPL @ 1m: 129 dB

Transducers

• Woofer: 2 x 8" neo, 2.5" v.c

Input/Output section

• Input signal: bal/unbal
• Input connectors: XLR, RDNet Ethercon
• Output connectors: XLR, RDNet Ethercon
• Input sensitivity: -2 dBu/+4 dBu

Processor section

• Protections: Excurs.
• Limiter: Fast Limiter
• Controls: Gain, Equalization, ByPass on board
• RDNet: Yes

Power section

• Total Power: 2000 W Peak, 1000 W RMS
• Low frequencies: 2000 W Peak, 1000 W RMS
• Cooling: Convection
• Connections: Powercon IN/OUT

Standard compliance

• CE marking: Yes

Physical Specifications

• Cabinet/Case Material: Baltic birch plywood
• Hardware: 2X M20 TOP AND SIDE / 8X M10 2X SIDE
• Handles: 2 1 X SIDE
• Grille: Steel
• Color: Black

Size

• Height: 243.5 mm / 9.59 inches
• Width: 603.5 mm / 23.76 inches
• Depth: 430 mm / 16.93 inches
• Weight: 20 kg / 44.09 lbs

Shipping information

• Package Height: 290 mm / 11.42 inches
• Package Width: 480 mm / 18.9 inches
• Package Depth: 650 mm / 25.59 inches
• Package Weight: 21 kg / 46.3 lbs

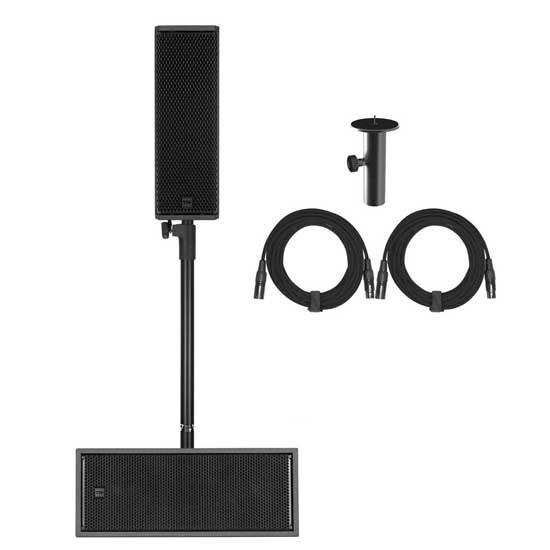

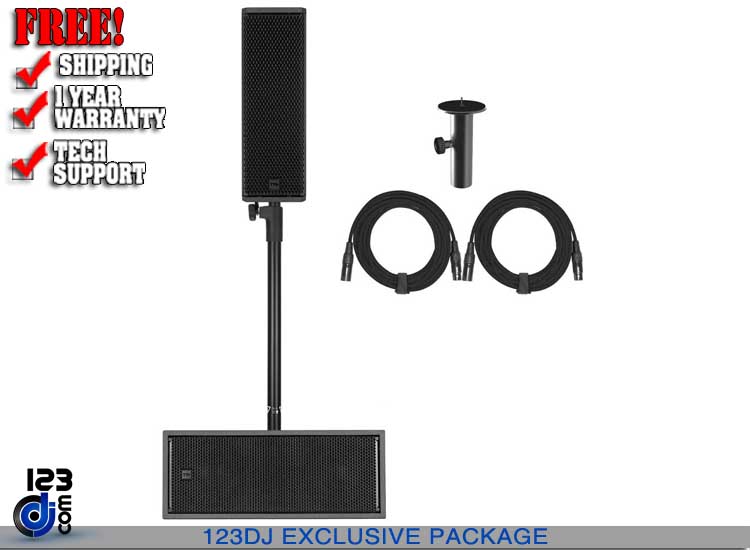

This Package Includes:

• (2) RCF TT 515-A Professional Active Dual 5" Powered Speakers
• (2) RCF TT 808-AS Professional Active Dual 8" Powered Subwoofers
• (2) RCF PM-KIT TT 515 Pole Mount Accessories for Stacking TT 515-A on TT 808-AS
• (2) RCF AC-PM-M20 M20 Pole Mounts
• (4) 20' XLR Female to XLR Male Microphone/Speaker Cables
