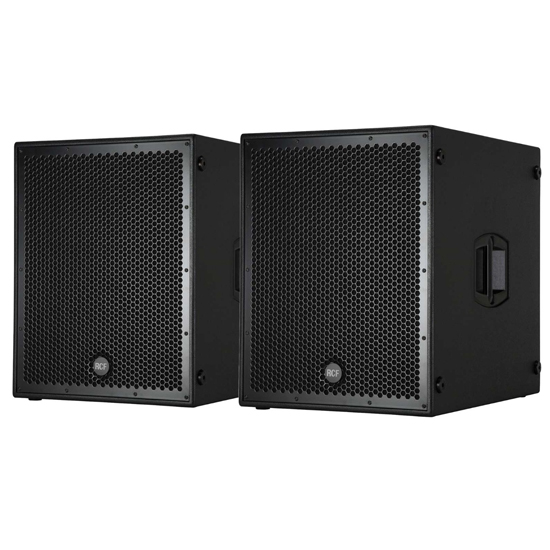

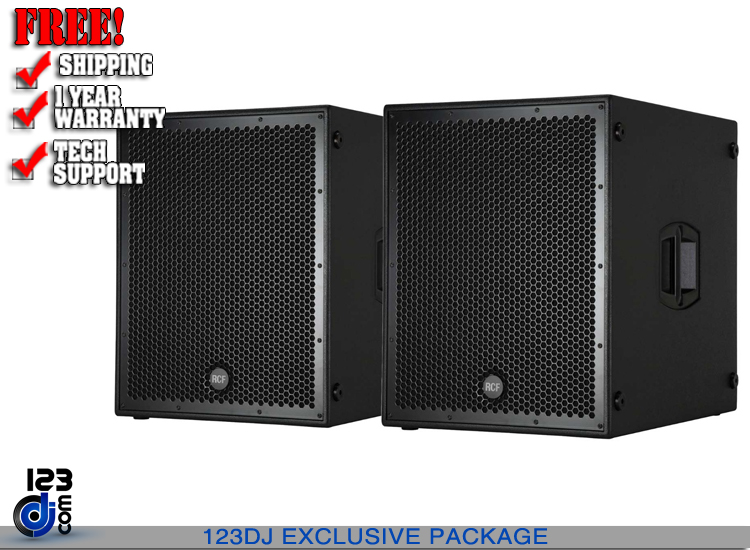

RCF SUB 8004-AS 18" Active High Power Subwoofer 2-Pack

The SUB 8004-AS is one of the most powerful 18" subwoofers in pro-sound category. Featuring a high power, hypervented 18" woofer, with 4" inside/outside voice coils, this cabinet is designed to deliver a serious amount of low frequency. Powered by a 1250W digital amplifier module, the SUB 8004-AS can perform in the most demanding situations. The input board includes volume control, deep/punch switch, high pass switch, phase switch, cardioid, time delay.

Key Features:

FEATURES

• 2500 Watt Peak, 1250 Wat RMS
• 136 dB max SPL
• 30 Hz - 120 Hz frequency response
• 18" Woofer, 4.0" voice coil vented woofer
• DSP controlled Input section with selectable presets
• Delay control
• Baltic birch tour grade cabinet
• Compatible with NXL23-A (stacking)
• Compatible with NXL24-A (stacking)
• Multiple configurations with HDL 10-A and HDL 20-A

ACOUSTICAL SPECIFICATIONS

• Frequency Response -3 dB:30 Hz ÷ 120 Hz
• Max SPL:136 dB
• Woofer:18", 4.0" v.c.

INPUT/OUTPUT SECTION

• Input signal:bal/unbal
• Input connectors:XLR
• Output connectors:XLR
• Input sensitivity:-2 dBu / +4 dBu

PROCESSOR SECTION

• Crossover frequencies:Selectable 90 Hz - 120 Hz Hz
• Protections:Thermal, RMS
• Limiter:Fast limiter
• Controls:Xover, Phase switch, Deep/Punch, Output Delay Settings, Cardioid

AMPLIFIER SPECIFICATIONS

• Total power:2500 W PEAK
• Low frequencies:2500 W PEAK
• Total power:1250 W RMS
• Low frequencies:1250 W RMS
• Cooling:Convection
• Connections:Powercon in-out

CABINET

• Cabinet Material:Baltic Birch
• Hardware:2xM20, 4 x wheels mounting points
• Handles:2 side
• Colour:Black

PHYSICAL SPECIFICATIONS

• Height:700 / 22.56 mm/inch
• Width:557.5 / 21.95 mm/inch
• Depth:700 / 27.56 mm/inch
• Net Weight:51.0 / 112.20 kg/lbs

This Package Includes:

• (2) RCF SUB 8004-AS 18" Active High Power Subwoofers
• (2) Power cords
• (2) User manuals
