RCF SUB 702-AS II 12" Active Subwoofer Go Package

Ultra-compact bass reflex subwoofer with integrated DSP

Housing a 12" woofer, the RCF SUB 702-AS II, is a very compact active sub enclosure and features a 1400 W powerful digital amplifier. It is the ideal complement to 8" or 10" speakers, creating small but powerful satellite systems with outstanding performance. Thanks to its compact size it can easily be carried and is very quick and easy to start using the built-in digital stereo crossover (DSP) with adjustable crossover frequency to connect the satellite.

SPL – high power output

Superior and incredible SPL levels guaranteed also in open air and at long distance.

Integrated DSP

The built-in digital stereo crossover with adjustable crossover frequency allows SUB 702-AS II to be easily and quickly set up as a sub-satellite speaker system.

Compatible with RCF professional speakers

The SUB 702-AS II is designed to integrate seamlessly into RCF professional speakers. The bass reflex design guarantees a deep, linear power response while the 2.5'' voice coil design woofer offers the minimum of power compression. SUB 702-AS II is the perfect match for 8", 10" or 12" satellite speakers. It is also the ideal companion subwoofer for the RCF ART 3, ART 7 or D-Line Series.

Deep bass sound

Two selectable equalizations to experience the extremely deep response and precise low frequency control.

These attributes make it the perfect tool to increase the low-end performance in a raft of situations, including portable and installed audio-visual systems, live sound, small theaters, houses of worship and surround sound presentations.

Features

• 1400 Watt Digital Amplifier
• 12" Woofer, bass reflex housing
• Stereo crossover
• Switchable crossover frequencies
• Phase-reverse switch
• Electronic equalization, soft limiter and protection
• Stereo XLR input, Stereo XLR signal output

Specification

Acoustical Specifications

• Frequency Response -3 dB: 40 Hz ÷ 120 Hz
• Max SPL: 129 dB
• Woofer: 12", 2.5" v.c.

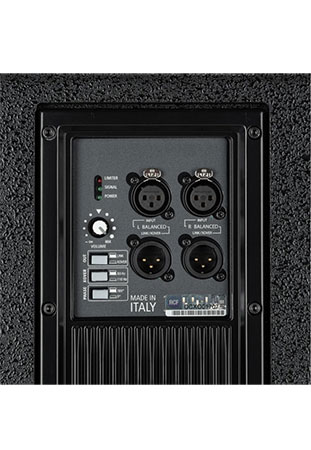

Input/Output Section

• Input connectors: Stereo XLR
• Output connectors: Stereo XLR
• Input sensitivity: -2 dBu / + 4 dBu

Processor Section

• Crossover frequencies: 80-110 Hz Hz
• Protections: thermal, rms
• Limiter: soft limiter
• Controls: Volume, EQ, phase, xover

Amplifier Specifications

• Total power: 1400 W PEAK
• Low frequencies: 1400 W PEAK
• Total power: 700 W RMS
• Low frequencies: 700 W RMS
• Cooling: convection
• Connections: VDE connector

Cabinet

• Cabinet Material: Baltic birch plywood
• Hardware: Pole mount
• Handles: 2 side
• Pole Mount/Cap: yes
• Grille: Steel
• Colour: Black

Physical Specifications

• Height: 487/19.17 mm/inch
• Width: 354/13.94 mm/inch
• Depth: 498/19.61 mm/inch

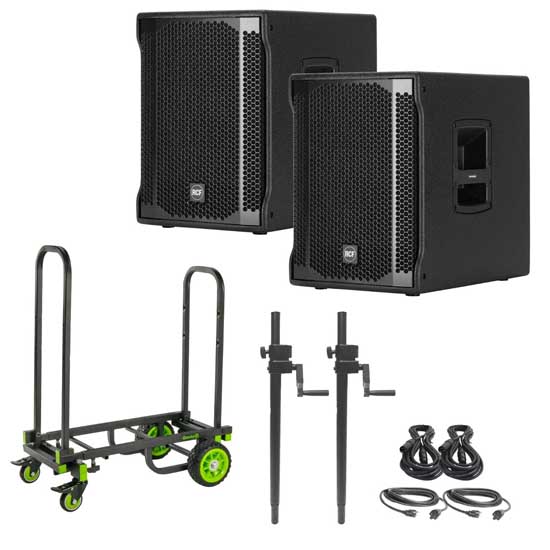

This Package Includes:

• (2) RCF SUB 702-AS MKII 12" Active Subwoofers
• (2) Power Cords
• (2) Black 10FT 16 Gauge AC Extension Cords
• (2) 20FT XLR Connecting Cables
• (2) ProX T-SAA-C Crank System Adjustable Speaker/Subwoofer Poles
• (1) Gravity GCARTM01B Multifunctional Trolley
