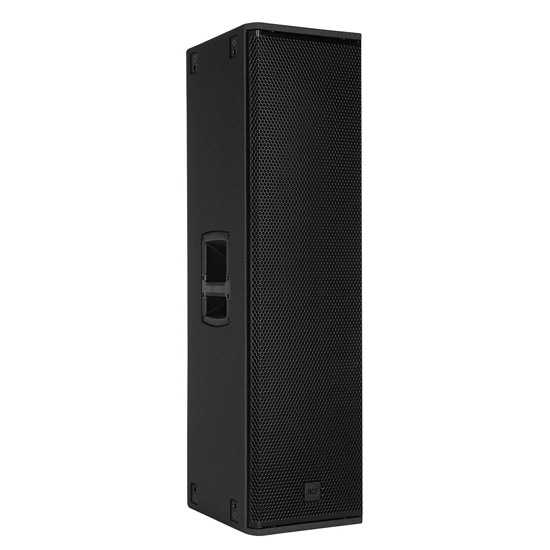

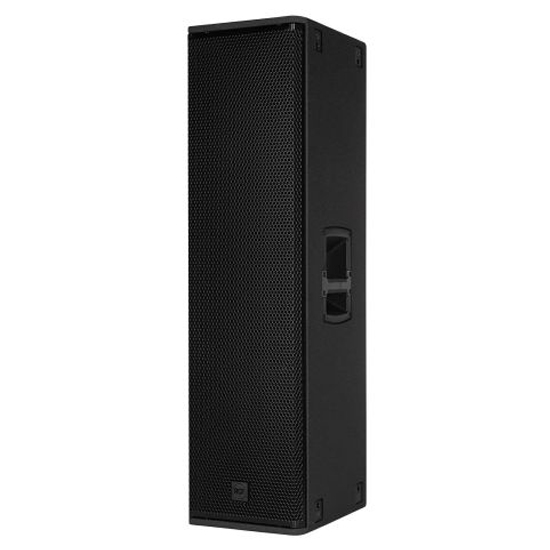

RCF NXL 44-A MK2 Active 2-Way Column Array Powered Speaker Package

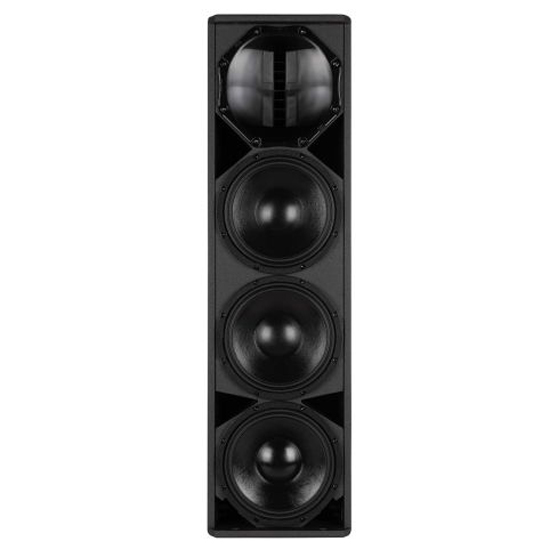

NXL 44-A MK2 is a line array column speaker masterfully engineered from the ground up to deliver stellar audio performance for Bands, DJs, Clubs, and Rental Companies. The bestin- class combination of premium RCF transducers and a 2,100W two-channel amplifier produce coherent 100° x 25° coverage for the listening area with up to 135 dB. The two-way design features three 10" neodymium woofers and a 3" driver on an asymmetrical waveguide. The horn's design delivers accurate sound to the coverage area without tilting the enclosure. The speaker delivers an extended frequency range down to 45 Hz and can be used as a stand-alone speaker, flown, or coupled with another NXL 44-A MK2 for extended coverage. Pairing the speaker with subwoofers delivers full-range power for medium-sized concerts and DJ systems. Blending RCF proprietary FiRPHASE and Bass Motion Control DSP processing, the NXL 44-A MK2 speaker is perfectly tuned for absolute sound clarity and deep, powerful bass response. The rugged, tour-ready, highquality baltic birch plywood cabinet is easy to carry and installed securely using the dedicated rigging points.

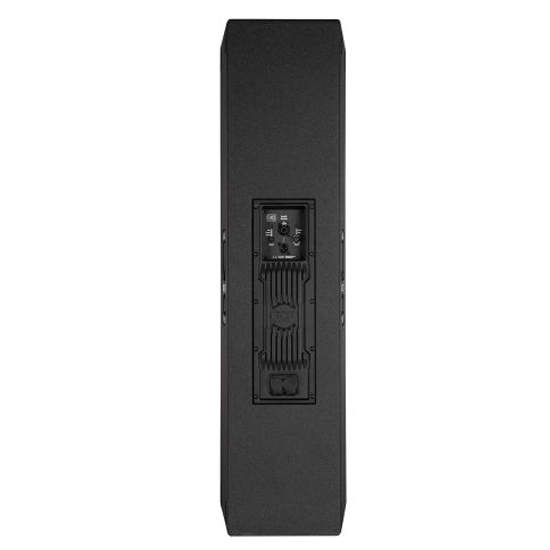

The most powerful amplifier in its class. RCF's improvements in transducer design make them stronger and more powerful. With 2,100W of power, the NXL MK2 2-channel Class-D amplifier is 50% more powerful than previous models. NXL manages extreme sound pressure levels with an ultra-fast attack, realistic transient response, and very low power loss. NXL modules are energy-efficient so there's no need for a cooling fan - the amplifier is attached to a solid aluminum heat exchanger in the rear of the cabinet - with no moving parts. The input circuit features a new low distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. All NXL amplifiers are designed according to EN62368-1 for maximum safety and house a Switch Mode Power Supply section with minimum weight. The vertically asymmetrical horn design accurately projects the sound energy and avoids unwanted reflections when placed on a sub or a speaker stand, without tilting the enclosure. This design also allows configuring two cascading NXL columns for optimal coverage. Intelligibility is significantly increased in challenging acoustic environments. The speaker delivers an extended low-frequency range that is increased when paired with a subwoofer for medium-sized concerts and DJ sets.

Lightweight and powerful, RCF drivers are a reference in high performance. All transducers are designed by RCF engineers in Italy for maximum reliability and perfectly matched components. The extended clarity of the 3" compression driver features a neodymium magnet for improved current handling and reduced weight. The best-in-class titanium dome and the Polyimide/Kapton voice coil handle extreme power levels with very low distortion. Three, high-power 10" low-frequency woofers with a new advanced transducer design gain more stability over higher currents, with less distortion, fast transient response, and better heat dissipation. NXL series consists of full-range column line array speakers ideal for high-powered portable and installed professional applications where size is a critical factor. The sleek column design and flexible rigging options make it a smart choice for a wide range of sound applications. The rugged, high-quality Baltic birch plywood cabinet is easy to carry, with ergonomic handles on each side. It can be used alone, on a pole, or paired with a sub, vertically coupled for improved vertical coverage, and can also be flown or truss-mounted using the included rigging points and special accessories. From the cabinet to the final texture and the rugged protective grille, NXL Series offers maximum strength for intensive use on the road and can be used for fixed installation.

Features:

• Up to 135 dB Sound Pressure Level.
• 2100W Class-D Amplifier.
• 100° x 25° Constant Directivity Coverage Angle.
• 3" Titanium Neodymium Compression Driver.
• 3 x 10" High Power Neodymium Woofers.
• 45-20000 Hz linear Frequency Response.
• Bass Motion Control and FiRPHASE processing.
• 8 x M8 Rigging Points and 8 x Quick Lock.

Acoustical Specifications

• Frequency Response: 45 Hz ÷ 20000 Hz
• Max SPL @ 1M: 135 dB
• Horizontal Coverage Angle: 100°
• Vertical Coverage Angle: 25°

Transducers

• Compression Driver: 1 x 1.4" neo, 3.0" v.c
• Woofer: 3 x 10" neo, 2.5" v.c.

Input/Output Section

• Input Signal: bal/unbal
• Input Connectors: Combo XLR/Jack
• Output Connectors: XLR
• Input Sensitivity: -2 dBu/+4 dBu

Processor Section

• Crossover Frequencies: 800 Hz
• Protections: Thermal, Excurs., RMS
• Limiter: Soft Limiter
• Controls: Linear, 2 Speakers, High-Pass, Volume

Power section

• Total Power: 2100 W Peak
• High Frequencies: 700 W Peak
• Low Frequencies: 1400 W Peak
• Cooling: Convection
• Connections: Powercon IN/OUT

Standard compliance

• CE Marking: Yes

Physical Specifications

• Cabinet/Case Material: Baltic birch plywood
• Hardware: 8 x M8, 8 x quick lock

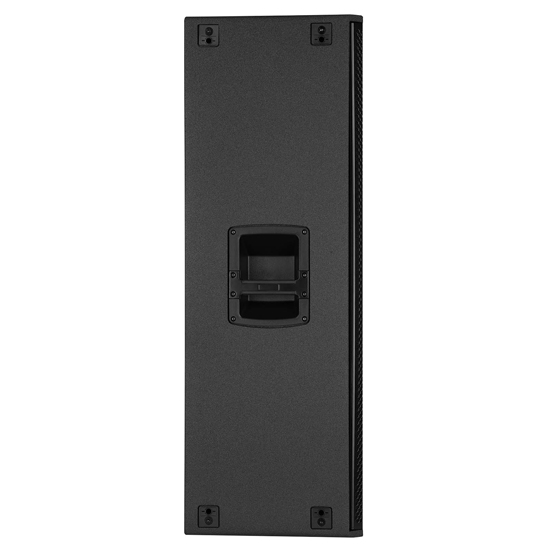

• Handles: 2 side

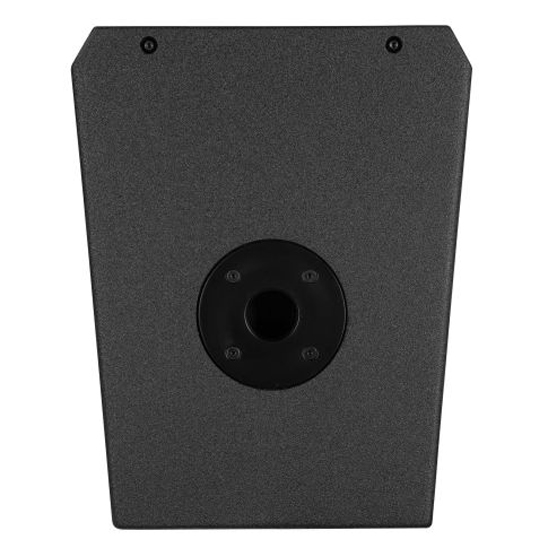

• Pole Mount/Cap: Yes

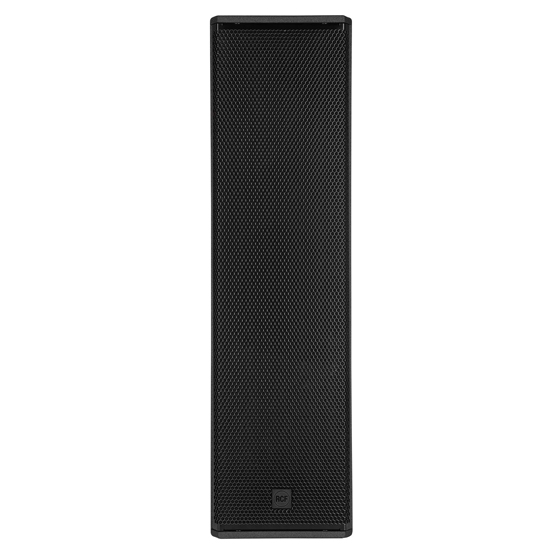

• Grille: Steel
• Color: Black

Size

• Height: 1080 mm / 42.52 inches
• Hardware: 8 x M8, 8 x quick lock
• Width: 297.5 mm / 11.71 inches
• Depth: 373 mm / 14.69 inches
• Weight: 33.4 kg / 73.63 lbs

Shipping information

• Package Height: 400 mm / 15.75 inches
• Package Width: 1115 mm / 43.9 inches
• Package Depth: 327 mm / 12.87 inches
• Package Weight: 35.5 kg / 78.26 lbs

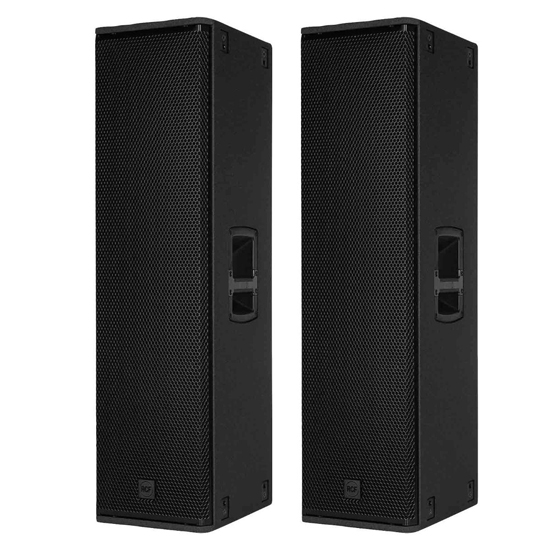

This Package Includes:

• (2) RCF NXL 44-A MK2 Active 2-Way Column Array Powered Speakers
