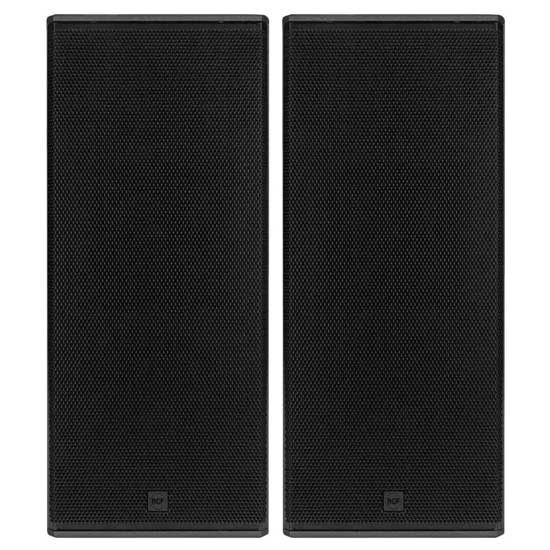

RCF NX985-A 15" 3-Way Powered Speaker 2-Pack

NX 985-A is a three-way active speaker masterfully engineered from the ground up to deliver stellar audio performance for Bands, DJs, Clubs, and Rental Companies. The best-in-class combination of RCF premium transducers and a two-channel 2100W amplifier produce coherent 100° x 60° coverage for the listening area with up to 138 dB SPL of distortion-free sound. The three-way design features a 1.75" neodymium compression driver with a constant directivity waveguide, 8" cone midrange on a phase-coherent waveguide, and a 15" high power woofer. Used as a stand-alone speaker, flown, coupled with another NX 985-A or combined with the RCF SUB 8008-AS subwoofer, the NX 985-A delivers extreme SPL output at all frequencies with high performance and reliability. The rugged, tour-ready, high-quality all-plywood cabinet is easy to carry and secure to install using the dedicated rigging points available.

Power that moves

The most powerful amplifier in its class. RCF's improvements in transducer design make them stronger and more powerful. With 2100W of power, the 2-channel NX 9 Class-D amplifier is 50% more powerful than previous models, able to manage extreme sound pressure levels with an ultra-fast attack, realistic transient response, and very low heat loss. NX 9 is energy-efficient so there's no need for a cooling fan - the amplifier is attached to a solid aluminum heat exchanger in the rear of the cabinet - with no moving parts. The input circuit features a new low distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. All NX 9 amplifiers are designed according to EN62368-1 for maximum safety and present a Switch Mode Power Supply section joining high-efficiency with minimum weight.

Superior transducers

Lightweight and powerful, RCF drivers are a reference in high performance. All transducers are designed by RCF engineers in Italy for maximum reliability and perfectly matched components.

The extended clarity of the 1.75" compression driver features a neodymium magnet for improved current handling and reduced weight. The best-in-class peek dome and the Polyamide/Kapton voice coil handle extreme power levels with very low distortion.

The midrange section adds detail and vocal clarity with a high-power 8" cone midrange on a constant directivity waveguide.

One high-power 15" low-frequency woofer with a new advanced transducer design gains more stability over higher currents, with less distortion, fast transient response, and better heat handling.

Bass Motion Control

When searching for an extended bass with enhanced performance, RCF engineers found a way to remove the high-pass filter, replacing it with a forward-thinking approach. Introducing BMC (Bass Motion Control), the newly advanced woofer excursion management feature. The speaker equipped with BMC can handle the lowest audible frequencies without affecting the woofer stability, with extended linearity and better sound integrity.

The BMC method works by creating a complete map of the dynamic behavior of the woofer, to generate a custom algorithm that only limits over-excursions. This gives total freedom of signal reproduction to the transducer. When high-pass filters normally protect the woofer motion from becoming destructive but change the phase behavior, the new BMC algorithm breaks conventional rules.

New perspective on linearity

RCF speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener.

The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.

Tour-proven workhorse

NX 985-A is a big-sized main system for highly demanding applications. Its flexibility makes it a smart choice for a wide range of live sound applications. The rugged, high-quality all-wood cabinet is easy to carry, with ergonomic handles on each side. It can be coupled for improved coverage and can also be flown or truss-mounted using the included M10 rigging points and special accessories. From the cabinet to the final texture and the rugged protective grille, NX 985-A offers maximum strength for intensive use on the road and can be used for fixed installation.

Ready for heavy-duty applications

The highly innovative entertainment industry is always evolving by increasing demands on interconnection systems. Particular environmentally sealed connectors are highly requested for heavy-duty and harsh environment applications of entertainment equipment. The speaker features True Outdoor Protection (TOP) PowerCON TRUE1 power input connectors. These ruggedized sealed connectors feature IP protection and UV resistance approved according to UL50E.

SUB 8008-AS

Pair one or two NX 985-A with SUB 8008-AS to create a high-power four-way sound system for any application that requires an earth-shaking response and extreme clarity on the entire frequency range.

FEATURES

• Up to 138 dB Sound Pressure Level
• 2100W Class-D Amplifier
• 40-20000 Hz linear frequency response
• 1.75" Neodymium Compression Driver with Peek diaphragm
• 8" Midrange, 2.5" v.c.
• 15" High Power Woofer
• Bass Motion Control and FiRPHASE processing
• M10 Rigging Points
• IP Rated Powercon TRUE1 TOP IN/OUT

SPECIFICATIONS

ACOUSTICAL SPECIFICATIONS

• Frequency Response: 40 Hz ÷ 20000 Hz
• Max SPL @ 1m: 138 dB
• Horizontal coverage angle: 100°
• Vertical coverage angle: 60°

TRANSDUCERS

• Compression Driver: 1 x 1.0'' neo, 1.75'' v.c
• Midrange: 8'' neo, 2.5'' v.c
• Woofer: 15'', 3.0'' v.c

INPUT/OUTPUT SECTION

• Input signal: bal/unbal
• Input connectors: Combo XLR/Jack
• Output connectors: XLR
• Input sensitivity: -2 dBu/+4 dBu

PROCESSOR SECTION

• Crossover Frequencies: Bass/Mid:320Hz, Mid/High:1200Hz
• Protections: Thermal, Excurs., RMS
• Limiter: Soft Limiter
• Controls: Linear, 2 Speakers, High Pass, Volume

POWER SECTION

• Total Power: 2100 W Peak
• High frequencies: 200 W Peak
• Mid frequencies: 500 W Peak
• Low frequencies: 1400 W Peak
• Cooling: Convection
• Connections: Powercon TRUE1 TOP IN/OUT

STANDARD COMPLIANCE

• Safety agency: CE compliant

PHYSICAL SPECIFICATIONS

• Hardware: 3 x M10 Top, 1 x M10 each side, 1 x M10 bottom, 2 x M10 rear
• Handles: 1 x Side
• Color: Black

SIZE

• Height: 1075 mm / 42.32 inches
• Width: 461 mm / 18.15 inches
• Depth: 475 mm / 18.7 inches
• Weight: 45 kg / 99.21 lbs

SHIPPING INFORMATION

• Package Height: 530 mm / 20.87 inches
• Package Width: 1110 mm / 43.7 inches
• Package Depth: 490 mm / 19.29 inches
• Package Weight: 51 kg / 112.44 lbs

This Package Includes:

• (2) RCF NX985-A Professional Active 15" 3-Way Powered Speakers
