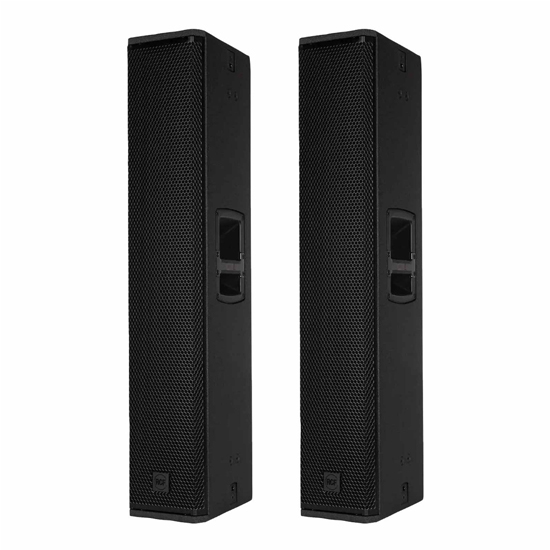

RCF NX-L24A-MK2 Active Two-Way Column Array Powered Speaker 2-Pack

NXL 24-A MK2 is a line array column speaker masterfully engineered from the ground up to deliver stellar audio performance for Bands, DJs, Clubs, and Rental Companies. The best-in-class combination of premium RCF transducers and a 2100W two-channel amplifier produce coherent 100° x 30° coverage for the listening area with up to 132 dB. The two-way design features four 6" neodymium woofers and a 3" driver on an asymmetrical waveguide. The horn's design delivers accurate sound to the coverage area without tilting the enclosure. The speaker delivers an extended frequency range down to 60 Hz and can be used as a stand-alone speaker, flown, or coupled with another NXL 24-A MK2 for extended coverage. Pairing the speaker with subwoofers delivers full-range power for medium-sized concerts and DJ systems. Blending RCF proprietary FiRPHASE and Bass Motion Control DSP processing, the NXL 24-A MK2 speaker is perfectly tuned for absolute sound clarity and deep, powerful bass response. The rugged, tour-ready, high-quality baltic birch plywood cabinet is easy to carry and installed securely using the dedicated rigging points.

The most powerful amplifier in its class. RCF's improvements in transducer design make them stronger and more powerful. With 2,100W of power, the NXL MK2 2-channel Class-D amplifier is 50% more powerful than previous models. NXL manages extreme sound pressure levels with an ultra-fast attack, realistic transient response, and very low power loss. NXL modules are energy-efficient so there's no need for a cooling fan - the amplifier is attached to a solid aluminum heat exchanger in the rear of the cabinet - with no moving parts. The input circuit features a new low distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. All NXL amplifiers are designed according to EN62368-1 for maximum safety and house a Switch Mode Power Supply section with minimum weight. The vertically asymmetrical horn design accurately projects the sound energy and avoids unwanted reflections when placed on a sub or a speaker stand, without tilting the enclosure. This design also allows configuring two cascading NXL columns for optimal coverage. Intelligibility is significantly increased in challenging acoustic environments. The speaker delivers an extended low-frequency range that is increased when paired with a subwoofer for medium-sized concerts and DJ sets.

Features:

• Up to 132 dB Sound Pressure Level.
• 2100W Class-D Amplifier.
• 100° x 30° Constant Directivity Coverage Angle.
• 3" Titanium Neodymium Compression Driver.
• 4 x 6" High Power Neodymium Woofers.
• 60-20000 Hz linear Frequency Response.
• Bass Motion Control and FiRPHASE processing.
• 4 x M8 Rigging Points and 4 x Quick Lock.

RCF NX-L24A-MK2 Product Specifications:

Acoustical Specifications

• Frequency Response: 60 Hz ÷ 20000 Hz
• Max SPL @ 1m: 132 dB
• Horizontal coverage angle: 100°
• Vertical coverage angle: 30°

Transducers

• Compression Driver: 1 x 1.4" neo, 3.0" v.c
• Woofer: 4 x 6.0" neo, 1.5" v.c

Input/Output Section

• Input signal: bal/unbal
• Input connectors: Combo XLR/Jack
• Output connectors: XLR
• Input sensitivity: +4 dBu

Processor Section

• Crossover Frequencies: 800
• Protections: Thermal, Excurs., RMS
• Limiter: Soft Limiter
• Controls: Linear, 2 Speakers, High-Pass, Volume

Power Section

• Total Power: 2100 W Peak
• High frequencies: 700 W Peak
• Low frequencies: 1400 W Peak
• Cooling: Convection
• Connections: Powercon TRUE1 TOP IN/OUT

Standard Compliamce

• Safety agency: CE compliant

Physical Specifications

• Cabinet/Case Material: Baltic birch plywood
• Hardware: 4 x M8, 4 x quick lock
• Handles: 2 side
• Pole mount/Cap: Yes
• Grille: Steel
• Color: Black

Size

• Height: 1056 mm / 41.57 inches
• Width: 201 mm / 7.91 inches
• Depth: 290.4 mm / 11.43 inches
• Weight: 24.4 kg / 53.79 lbs

Shipping Information

• Package Height: 320 mm / 12.6 inches
• Package Width: 1080 mm / 42.52 inches
• Package Depth: 230 mm / 9.06 inches
• Package Weight: 27.5 kg / 60.63 lbs

This Package Includes:

• (2) RCF NX-L24A-MK2 Active Two-Way Column Array Powered Speakers
