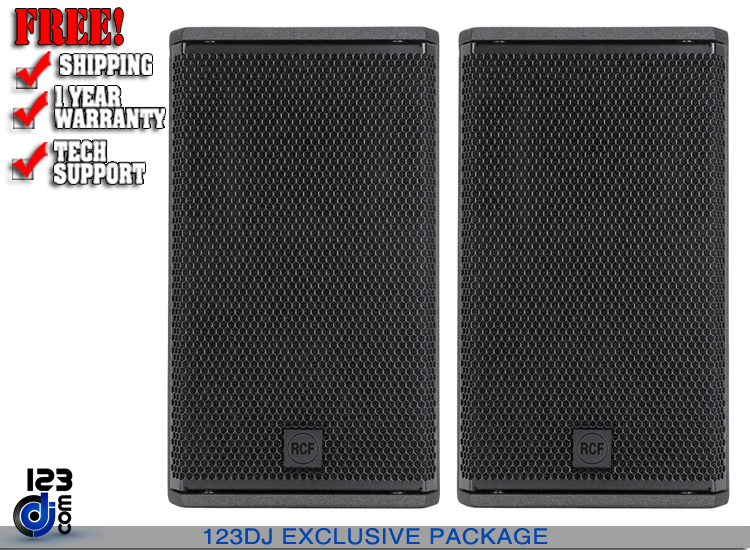

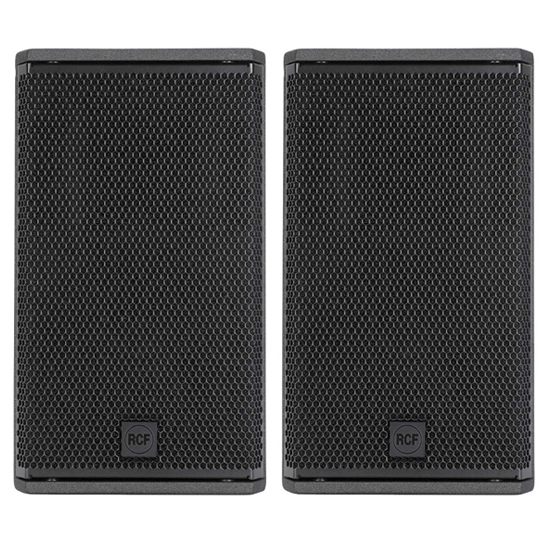

RCF NX-910A Active 10" 2-way Powered Speaker Duo Package

NX 910-A is masterfully engineered from the ground up to deliver stellar audio performance for solo musicians, bands, and DJs. The combination of 1.75" compression driver, 10" woofer, two-channel 2100W amplifier, and a constant directivity waveguide produces coherent 100° x 60° coverage for the listening area with up to 130 dB SPL of distortion-free sound. Used as a stand-alone speaker for a FOH system, satellite (with subwoofer), stage monitor, or flown speaker, the NX 910-A blends high-performance and reliability in a compact package. Built specifically for demanding live sound applications, it also features multiple rigging points for fixed installation. Blending RCF proprietary FiRPHASE and Bass Motion Control DSP processing, NX 9 Series speakers are perfectly tuned for each model, delivering absolute clarity and deep, powerful bass response. The tour-ready, rugged all-wood cabinet is easy to carry and secure to install on a pole-, flown-, wall-, or truss-mounted using the dedicated rigging points available.

The most powerful amplifier in its class. RCF's improvements in transducer design make them stronger and powerful, so the amplifier follows the evolution. With 2100W power, the 2-channel NX 9 Class-D amplifier is 50% more powerful than previous models, able to manage extreme sound pressure levels with an ultra-fast attack, realistic transient response, and very low heat loss. NX 9 is energy-efficient so there's no need for a cooling fan - the amplifier is attached to a solid aluminum heat exchanger in the rear of the cabinet - with no moving parts. The input circuit features a new low distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. All NX 9 amplifiers are designed according to EN62368-1 for maximum safety and present a Switch Mode Power Supply section joining high-efficiency with minimum weight. Lightweight and powerful, RCF drivers are a reference in high performance. All transducers are designed by RCF engineers in Italy for maximum reliability and perfectly matched components. The new 1.75" voice coil design with Polyimide-Kapton dome features a new bonding technology and reinforcement ribs making it 10 times more rigid than previous models, for increased accuracy and durability. The redesigned phase plug increases sound clarity with less distortion. Low-frequency transducer design gains more stability over higher currents, with less distortion and better heat handling. NX 9 can operate as either the main system or as a floor monitor. This flexibility makes it a smart choice for a wide range of live sound applications. The rugged all-wood cabinet is easy to carry, thanks to the one handle on top. The lower side includes a steel pole socket for mounting on a stand or a subwoofer pole. Each model can also be flown, wall- or truss-mounted using the six included M10 rigging points and special accessories. From the wood cabinet to the final texture and the rugged protective grille, NX 9 offers maximum strength for intensive use on the road and can be used for fixed installation.

Features:

• Up to 130 dB Sound Pressure Level.
• 2100W Class-D Bi-Amplification.
• 50-20000 Hz linear frequency response.
• 1.75" Compression Driver.
• 10" Woofer
• FiRPHASE zero degrees phase technology.
• Bass Motion Control woofer excursion management.

Acoustical specifications

• Frequency Response: 50 Hz ÷ 20000 Hz
• Max SPL @ 1m: 130 dB
• Horizontal coverage angle: 100&edg;
• Vertical coverage angle: 60&edg;

Transducers

• Compression Driver: 1 x 1.0", 1.75" v.c
• Woofer: 10", 2.5" v.c

Input/Output section

• Input signal: bal/unbal
• Input connectors: XLR, Jac
k
• Output connectors: XLR
• Input sensitivity: -2 dBu/+4 dBu

Processor section

• Crossover Frequencies: 1600 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Linear, Boost, Stage, Volume

Power section

• Total Power: 2100 W Peak
• High frequencies: 700 W Peak
• Low frequencies: 1400 W Peak
• Cooling: Convection
• Connections: VDE

Standard compliance

• CE marking: Yes

Physical specifications

• Cabinet/Case Material: Plywood
• Hardware: 2 x M10 Top, 1 x M10 each side, 1 x M10 bottom, 1 x M10 rear
• Handles: 1 Top
• Pole mount/Cap: Yes
• Grille: Steel
• Color: Black

Size

• Height: 510 mm / 20.08 inches
• Width: 295 mm / 11.61 inches
• Depth: 333 mm / 13.11 inches
• Weight: 16.4 kg / 36.16 lbs

Shipping information

• Package Height: 556 mm / 21.89 inches
• Package Width: 388 mm / 15.28 inches
• Package Depth: 348 mm / 13.7 inches
• Package Weight: 18.1 kg / 39.9 lbs

This Package Includes:

• (2) RCF NX-910A Active 10" 2-way Powered Speakers
