(2) RCF HDL 10-A Active Line Array Module with Crank Stands & Flybars Package

The very compact size, no compromise transducers and a unique composite cabinet design make the HDL 10-A the perfect tool in many situations. Ideal in live sound reinforcement and reliable installed situations. The HDL 10-A is the ideal choice when line array performance is needed and a fast and easy set up is a must. The system is powered from a 1400 Watt Peak Power 2 way digital amplifier, sound is processed from a powerful DSP.

The HDL 10-A is a two way active line array module designed for live sound reinforcement and installed sound applications. It features: 2 x 8-inch woofers, 1 x 2.5-inch titanium compression driver, digital amplifier with switch mode power supply and DSP controlled Input section with selectable presets. The HDL 10-A delivers: 133dB max SPL; 1400 Watt peak power (700 Watts RMS); 65Hz - 20kHz frequency response. The HDL 10-A is a true active and high power ready to use touring system equipped with a high efficiency digital amplifier that delivers superior SPL reducing energy requirement. The integrated processing and the cabling reduction will make the set-up faster and easier and, thanks to its compact size, the truck space requirement is reduced to the minimum. The integrated processing and the cabling reduction will make the set-up faster and easier. The compactness and lightweight of the system combined with top of class steel on board mechanics helps during rigging operations as well as during transportation.

RCF HDL 10-A Active Line Array Module Features:

• 1400 Watt Peak power - 700 Watt RMS.
• 133 dB max SPL.
• 65 Hz 20 kHz frequency response.
• 2 x 8" Woofers.
• 1 x 2" Compression Driver.
• DSP controlled Input section with selectable presets.
• Tour grade safe and solid variable mechanics.
• Composite PP enclosure structurally wooden reinforced.

HDL 10-A Applications:

• Live sound.
• Rental.
• Portable PA, clubs, ballrooms, live theater.
• House of worship.
• Theme parks.
• Music playback and sound reinforcement in small and mid-size venues.
• Corporate A/V professionals and sound system hire companies.

Acoustical Specifications

• Frequency Response -3 dB: 65 Hz ÷ 20000 Hz
• Max SPL: 133 dB
• Horizontal coverage angle: 100°
• Vertical coverage angle: 15°
• Compression Driver: 2", 2.5" v.c.
• Woofer: 2 x 8", 2.0" v.c.

Input/Output Section

• Input signal: bal/unbal
• Input connectors: XLR
• Output connectors: XLR
• Input sensitivity: -2 dBu / +4 dBu

Processor Section

• Crossover Frequencies: 800
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Cluster, HF, High curving, Indoor

Amplifier Specifications

• Total power: 1400 W PEAK
• High frequencies: 400 W PEAK
• Low frequencies: 1000 W PEAK
• Total power: 700 W RMS
• High frequencies: 200 W RMS
• Low frequencies: 500 W RMS
• Cooling: Convection
• Connections: Powercon in/out

Cabinet

• Cabinet Material: Composite PP, wooden reinforced
• Hardware: Rigging flyware
• Handles: 2 side
• Colour: Black

Physical Specifications

• Height: 294 / 11.5 mm/inch
• Width: 569 / 22.40 mm/inch
• Depth: 434 / 17.09 mm/inch
• Net Weight: 20.4 / 44.97 kg/lbs

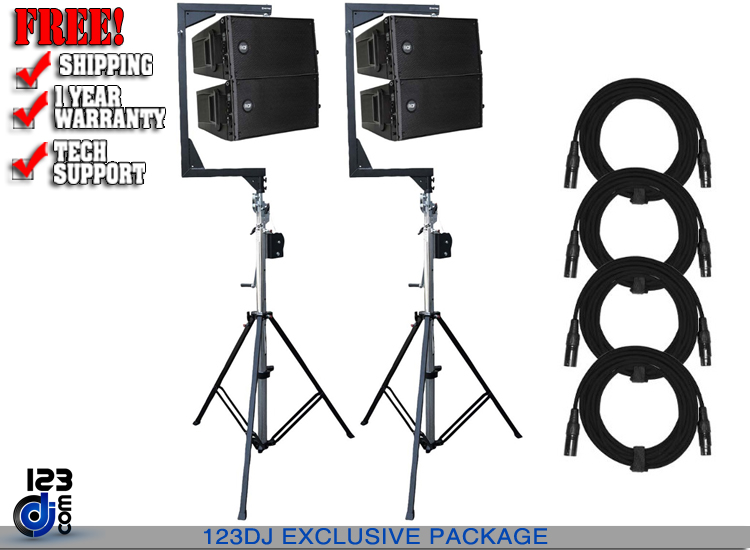

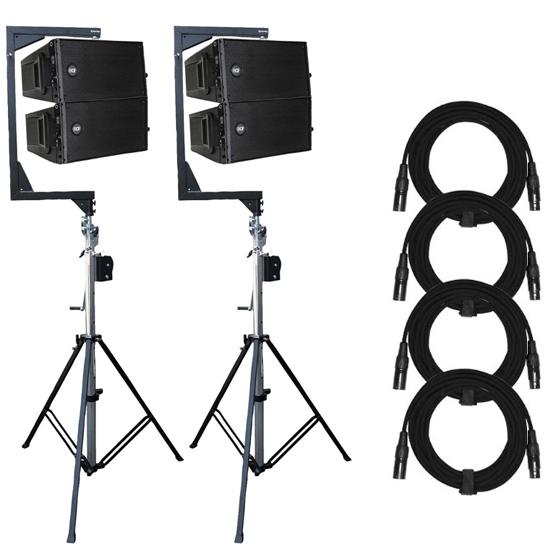

This Package Includes:

• (4) RCF HDL 10-A Active Line Array Modules
• (4) Power cords
• (2) ProX XT-CRANK14FT-220 14 Ft Heavy-duty Lighting Crank Stands for Lifting Truss 220 lbs Capacity Incl 5ft T-Bars
• (2) ProX XT-LA567 Telescopic C-Shape Supports for Small Line Array Speakers Max Load 150 lbs
• (2) RCF FLY BAR HDL 10 Suspending Bars for HDL 10-A
• (6) Pins
• (2) Stack Bars
• (4) 10' XLR Female to XLR Male Microphone / Speaker Cables
