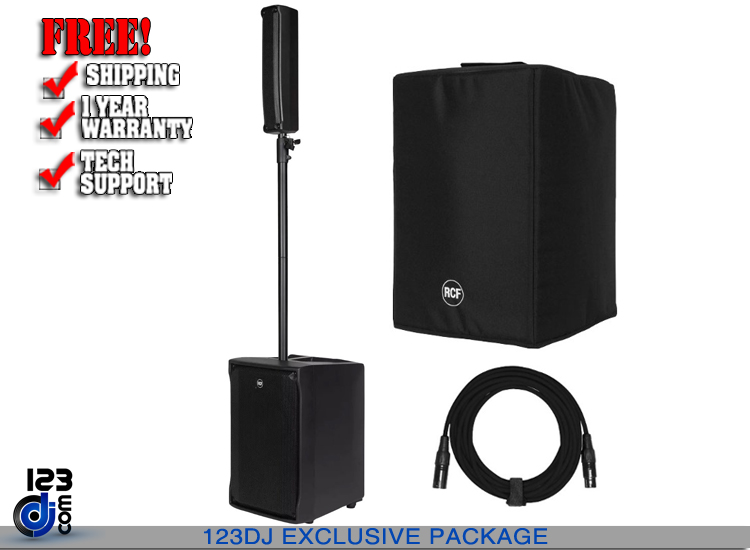

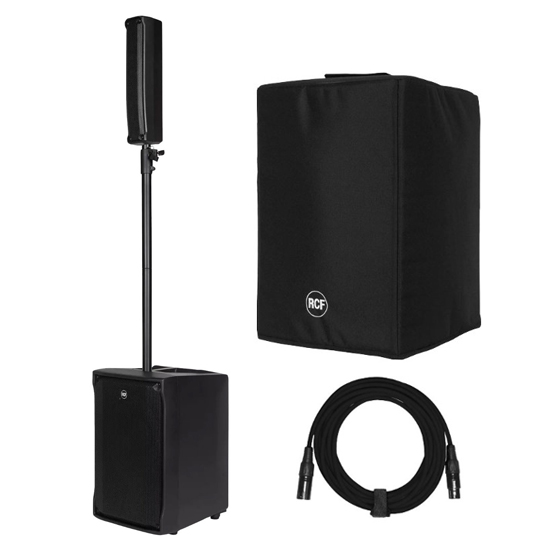

RCF Evox J8 with Cable and Cover Package

RCF EVOX J8 Overview

The RCF J8 features a line source satellite module with eight 2" full-range drivers paired with a high-powered 12" woofer in a bass reflex enclosure. All powered by on-board 1400 W Class D amplification. The EVOX J Series maintains a similar footprint to the original EVOX systems, now in a portable composite enclosure. The system offers stunning sound performance with crystal-clear vocal reproduction and unparalleled musical response.

Features

• 128 dB Max SPL
• 1400 Watt 2-way peak power
• DSP Processing with FiRPHASE
• 12" woofer, high power 2.5" voice coil
• 8 x 2" ultra compact fullrange 1.0" voice coil
• 2350x350x450 mm 92.5x13.77x17.71 in (HxWxD)
• 23,8/52.5 kg/lbs

Specification

Acoustical specifications

• Frequency Response:40 Hz ÷ 20000 Hz
• Horizontal coverage angle:120°
• Max SPL @ 1m:128 dB
• Vertical coverage angle:30°

Transducers

• Fullrange:8 x 2.0'', 1.0'' v.c
• Woofer:12'', 2.5'' v.c

Input/Output section

• Input signal:bal/unbal
• Input connectors:XLR, Jack
• Output connectors:XLR
• Input sensitivity:-2 dBu/+4 dBu

Processor section

• Crossover frequencies:220 Hz
• Protections:Thermal, RMS
• Limiter:Soft Limiter
• Controls:Volume, Boost, Mic/Line

Power section

• Total Power:1400 W Peak, 700 W RMS
• High frequencies:400 W Peak, 200 W RMS
• Low frequencies:1000 W Peak, 500 W RMS
• Cooling:Convection
• Connections:VDE

Standard compliance

• CE marking:Yes

Physical specifications

• Cabinet/Case Material:PP Composite
• Handles:1 Top
• Grille:Steel
• Color:Black

Size

• Height:623 mm / 24.53 inches
• Width:400 mm / 15.75 inches
• Depth:460 mm / 18.11 inches
• Weight:23.8 kg / 52.47 lbs

Shipping informations

• Package Height:676 mm / 26.61 inches
• Package Width:451 mm / 17.76 inches
• Package Depth:581 mm / 22.87 inches
• Package Weight:28 kg / 61.73 lbs

This Package Includes:

• (1) RCF Evox J8 Active Two Way Portable Array
• (1) Power Cord
• (1) Owner's manual
• (1) 20' XLR Female to XLR Male Microphone/Speaker Cable
• (1) RCF Protective Cover for the Evox J8 Subwoofer
