RCF Evox J8-W with Audio Receiver & Protective Cover Package

The incredibly powerful EVOX series alters the landscape of portable PA once again. The system features a line source satellite module with eight 2" full-range drivers paired with a high-powered 12" woofer in a bass reflex enclosure. All powered by on-board 1400-watt Class-D amplification. The EVOX J Series maintains a similar footprint to the original EVOX systems, now in a portable composite enclosure. The system offers stunning sound performance with crystal clear vocal reproduction and unparalleled musical response. This makes the RCF EVOX the smart choice for live entertainment, DJs, parties, club music and corporate events.

Features

• 128 dB Max SPL.
• 1400 Watt 2-way peak power.
• DSP Processing with FiRPHASE.
• 12" woofer, high power 2.5" voice coil.
• 8 x 2" ultra compact fullrange 1.0" voice coil.
• 2350x350x450 mm 92.5x13.77x17.71 in (HxWxD).
• 23,8/52.5 kg/lbs.

Applications:

• Live Sound.
• Clubs and DJs.
• Corporate events.
• AV presentations.

The RCF J8 features a line source satellite module with eight 2" full-range drivers paired with a high-powered 12" woofer in a bass reflex enclosure. All powered by on-board 1400 W Class D amplification. The EVOX J Series maintains a similar footprint to the original EVOX systems, now in a portable composite enclosure. The system offers stunning sound performance with crystal-clear vocal reproduction and unparalleled musical response.

RCF Protective Cover for the Evox J8 Subwoofer

RCF Protective Cover for the Evox J8 Subwoofer.

• Protects the EVOX from scratches and hits.
• Strong construction.
• Features easy access to the top handle to transportation.

Specification

• Frequency Response -3 dB : 40 Hz ÷ 20 Hz
• Max SPL : 128 dB
• Horizontal coverage angle : 120°
• Vertical coverage angle : 30°
• Fullrange : 8 x 2.0'', 1.0'' v.c
• Woofer : 12'', 2.5'' v.c

• Input signal : bal/unbal
• Input connectors : XRL, Jack
• Output connectors : XLR
• Input sensitivity : -2 dBu/+4 dBu

• Crossover frequencies : 220 Hz
• Protections : Thermal, RMS
• Limiter : Soft Limiter
• Controls : Volume, Boost, Mic/Line

• Total power : 1400 W PEAK
• High frequencies : 400 W PEAK
• Low frequencies : 1000 W PEAK
• Total power : 700 W RMS
• High frequencies : 200 W RMS
• Low frequencies : 500 W RMS
• Connections : Convection

• Cabinet Material : PP Composite
• Handles : 1 Top
• Pole Mount/Cap : Yes
• Grille : steel
• Colour : Black (EVOX J8), White (EVOX J8-W)

• Height : 623/24.53 mm/inch
• Width : 400/15.75 mm/inch
• Depth : 460/18.11 mm/inch
• Net Weight : 23.8/52.47 kg/lbs

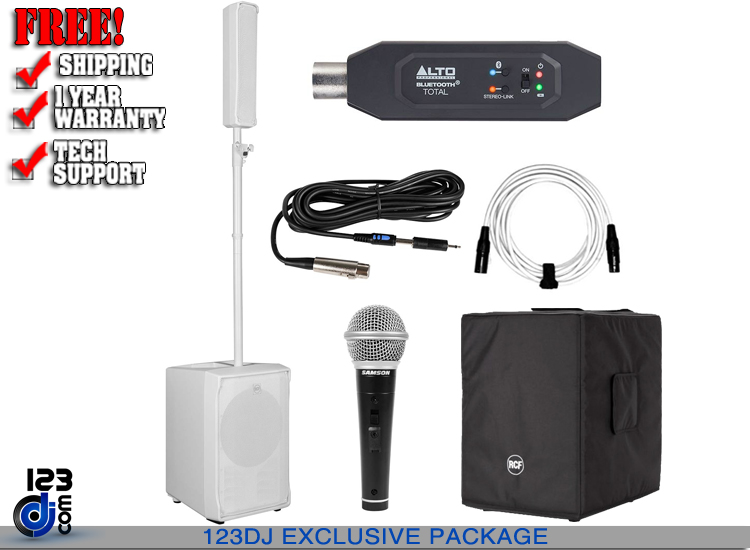

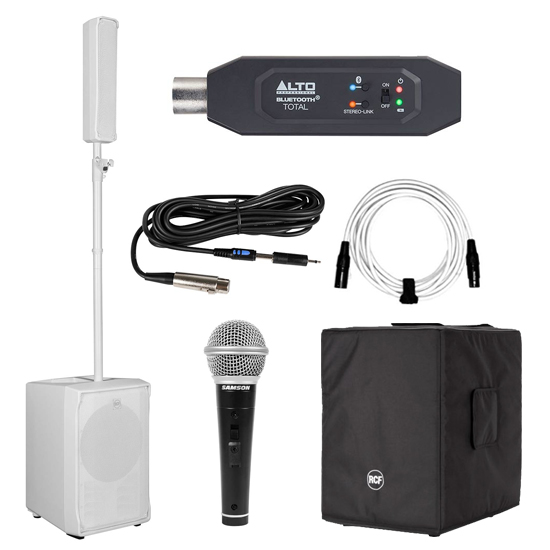

This Package Includes:

• (1) RCF Evox J8 Active Two Way Portable Array (white)
• (1) Power Cord
• (1) RCF Protective Cover for the Evox J8 Subwoofer
• (1) Alto Professional Bluetooth Total MKII XLR-Equipped Rechargeable Bluetooth Audio Adapter
• (1) Micro-USB Charging Cable
• (1) Generic Multi-Purpose Dynamic Vocal Microphone
• (1) 20' White XLR Female to XLR Male Microphone/Speaker Cable
