RCF 2x RCF HD 10-A MK4 + 2x RCF Sub 702-AS II

Overview

Product Description for the 2x RCF HD 10-A MK4 + 2x RCF Sub 702-AS II

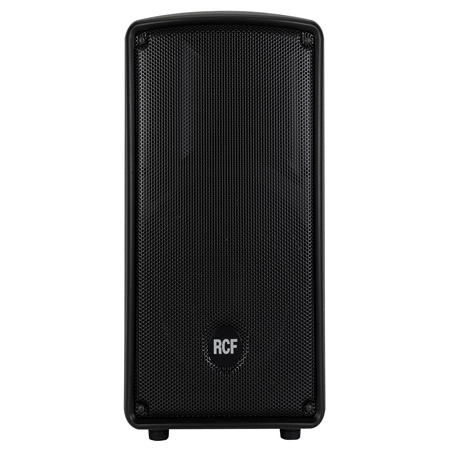

RCF HD 10-A MK4

RCF cares about your sound. The new D-Line MK4 speakers boosts the performance with a series of brand new transducers, improves the sound quality with the revolutionary FiRPHASE processing and renew the grille design to exalt the professional look. The vocals are natural, the sound is clear at long distances, the SPL power is stable at very high levels. The concept of the HD-Line derives from the touring industry, bringing in an elegant and compact cabinet all the experience of RCF professional sound with the maximum reliability and strength for the intensive use on the road. Connect your microphone, your device or your mixer to the speaker and turn up the volume: real plug&play. Perfect as a main front of house in small PA systems, high powered floor monitoring and unobtrusive fixed installation.

Tour sound

The latest evolution in the active loudspeaker technology

The concept of this unique speakers derives from the touring industry, bringing in a compact cabinet all the experience of RCF professional sound.

The RCF Team always has the performer’s needs at the forefront of the design in order to create new lines of speakers with renewed features, improved sound clarity, and definition and even lighter weight systems.

D-LINE represents the latest evolution in the active loudspeaker technology with a revolutionary design and sound. Every detail has been carefully studied in order to offer musicians and professionals the perfect tool to amplify their performance, night after night.

High-quality materials, precise manufacturing, careful assembly and extensive quality control procedures complete the groundbreaking design work of the RCF R&D team.

The vocals are natural, the sound is clear at longer distances, the spl power is stable at very high levels.

Rental Proof

D-LINE cabinets are molded on a special polypropylene composite material designed to dampen down vibrations even at maximum volume settings.

From molding to the final texture, D LINE offers the maximum reliability and strength for the intensive use on the road.

The reflex porting has been resized to offer a better efficiency. The HD 10-A is equipped with a top handle and a side handle with rubber handgrip for greater portability; the HD 12-A features 3 ergonomically designed forged handles with rubber handgrip, 2 on the sides and one at the top. At the bottom, a rugged steel pole mount has been installed in all models.

The new cabinet shape will allow every D-LINE model to be used in the standard configuration as well as in stage monitor model. Two M10 and 3 M6 threaded inserts are provided for optional mounting hardware in Installed Sound Applications.

Digital processing for digital power

State of art digital amplifiers

RCF Class-D power amplifiers technology packs huge performance operating with high efficiency into a lightweight solution. D-Line amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance.

The amplifier features a solid mechanical aluminum structure which not only stabilizes the amplifier during transportation but also assists in the heat dissipation.

All the D-LINE amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.

Integrated Dsp

The integrated DSP manages crossover, equalization, soft limiter, compressor and dynamic bass boost.

In/Out Connectors

Each amplifier presents both XLR In/Out connectors and a Jack input for the maximum connection versatility.

Eq Switch

A switchable EQ Mode makes it easier to select among two different equalizations presets:

• Extended response switch, which slightly emphasizes the bass response for playback music and low volume applications;
• Linear response switch, for using the speaker to amplify a live mix

Mic/Line Switch

A useful Mic/Line switch to adjust the input sensitivity is provided. When used just for speech, the Mic setting allows using a microphone directly with the speaker. Set the selector to Line when using the speaker for live music or playback.

Volume Knob

An easy to reach volume knob on the back allows setting the overall volume of the speaker according to its application.

Status LEDs

3 status LEDs – Power / Signal / Status are provided for monitoring the system.

Legendary Rcf Transducers

The Latest Evolution In The Active Loudspeaker Technology

Woofers and Compression Drivers are precision built in our factory in Reggio Emilia, Italy, taking advantage of RCF’s superior molding, assembly technologies and a wealth of professional knowledge and experience dedicated to achieving extremely high standards.

The RCF Precision transducers equipping D-LINE  have been representing for decades the ultimate performance, the highest power handling, and the most advanced technology in the professional and touring industry.

High Power Woofers

The high power woofer delivers extremely accurate punchy bass, the custom made compression driver offers a transparent midrange and extreme fidelity.

Superior Compression Drivers

All Compression drivers and Transducers are precision built taking advantage of RCF’s superior molding, assembly technologies and a wealth of professional knowledge and experience dedicated to achieving extremely high standards.

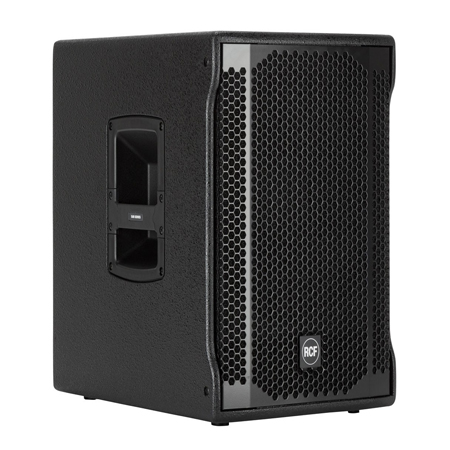

RCF Sub 702-AS II

Housing a 12” woofer, the SUB 702-AS II, is a very compact active sub enclosure and features a 1400 W powerful digital amplifier. It is the ideal complement to 8” or 10” speakers, creating small but powerful satellite systems with outstanding performance. Thanks to its compact size it can easily be carried and is very quick and easy to start using the built-in digital stereo crossover (DSP) with adjustable crossover frequency to connect the satellite.

Spl – High Power Output

Superior and incredible SPL levels guaranteed also in open air and at long distance.

Integrated Dsp

The built-in digital stereo crossover with adjustable crossover frequency allows SUB 702-AS II to be easily and quickly set up as a sub-satellite speaker system.

Compatible With Rcf Professional Speakers

The SUB 702-AS II is designed to integrate seamlessly into RCF professional speakers. The bass reflex design guarantees a deep, linear power response while the 2.5’’ voice coil design woofer offers the minimum of power compression. SUB 702-AS II is the perfect match for 8”, 10” or 12” satellite speakers. It is also the ideal companion subwoofer for the RCF ART 3, ART 7 or D-Line Series.

Deep Bass Sound

Two selectable equalizations to experience the extremely deep response and precise low-frequency control.

Features

RCF HD 10-A MK4

• Digital Bi-amp
• DSP Sound Processing
• RCF Precision Transducers
• SPL max. 129 dB

Acoustical

• Frequency Response -3 dB : 50 Hz ÷ 20000 Hz
• Max SPL : 129 dB
• Horizontal coverage angle : 90°
• Vertical coverage angle : 60°
• Compression Driver : 1", 1.7" voice coil
• Woofer : 10", 2.5" voice coil

Input/Output Section

• Input signal : bal/unbal
• Input connectors : Jack-XLR male
• Output connectors : XLR female
• Input sensitivity : -2 dBu / + 4 dBu

Processor Section

• Crossover frequencies : 1700 Hz
• Protections : thermal, RMS
• Limiter : Fast limiter
• Controls : Volume, EQ shape, Mic/line

Amplifier Specifications

• Total power : 1200 W PEAK
• High frequencies : 300 W PEAK
• Low frequencies : 900 W PEAK
• Total power : 600 W RMS
• High frequencies : 150 W RMS
• Low frequencies : 450 W RMS
• Connections : VDE AC socket

Cabinet

• Cabinet Material : Composite PP
• Hardware : 1 x M10 top, 1 x M10 bottom, 3 x M6 bottom
• Handles : 1 top, 1 side
• Pole Mount/Cap : Yes
• Grille : Steel
• Colour : Black
• Height : 527/20.74 mm/inch
• Width : 303/11.92 mm/inch
• Depth : 302.5/11.90 mm/inch

RCF Sub 702-AS II

• 1400 Watt Digital Amplifier
• 12" Woofer, bass reflex housing
• Stereo crossover
• Switchable crossover frequencies
• Phase-reverse switch
• Electronic equalization, soft limiter and protection
• Stereo XLR input, Stereo XLR signal output

APPLICATIONS

• Club sound, DJs
• Portable PA
• Rental
• Small theatre

PART NUMBER

• 13000453 (230V)
• 13000454 (115V)

ACOUSTICAL SPECIFICATIONS

• Frequency Response -3 dB : 40 Hz ÷ 120 Hz
• Max SPL : 129 dB
• Woofer : 12", 2.5" v.c.

INPUT/OUTPUT SECTION

• Input connectors : Stereo XLR
• Output connectors : Stereo XLR
• Input sensitivity : -2 dBu / + 4 dBu

PROCESSOR SECTION

• Crossover frequencies : 80-110 Hz Hz
• Protections : thermal, rms
• Limiter : soft limiter
• Controls : Volume, EQ, phase, xover

AMPLIFIER SPECIFICATIONS

• Total power : 1400 W PEAK
• Low frequencies : 1400 W PEAK
• Total power : 700 W RMS
• Low frequencies : 700 W RMS
• Cooling : convection
• Connections : VDE connector

CABINET

• Cabinet Material : Baltic birch plywood
• Hardware : Pole mount
• Handles : 2 side
• Pole Mount/Cap : yes
• Grille : Steel
• Colour : Black

PHYSICAL SPECIFICATIONS

• Height : 487/19.17 mm/inch
• Width : 354/13.94 mm/inch
• Depth : 498/19.61 mm/inch
• SKU: RCF-HD10AMK4-BUN7
• Brand: RCF
• Weight: 66.0000
• Dimensions (WxHxD): No

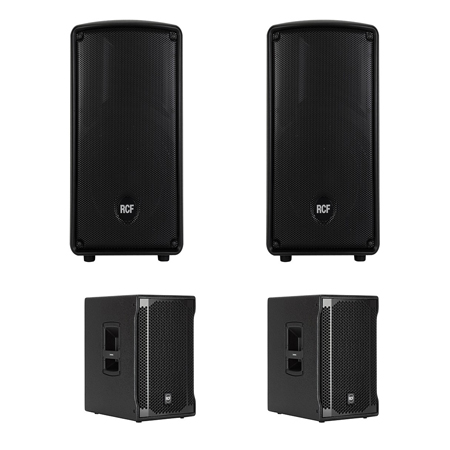

Package Includes :

2 x RCF HD 10-A MK4

2 x RCF Sub 702-AS II
