QSC TouchMix 16 Digital Mixer With K12 Powered Loudspeaker Pair Pack

Overview

For your live sound needs, AMS has created a QSC package that will delight your audience night after night.

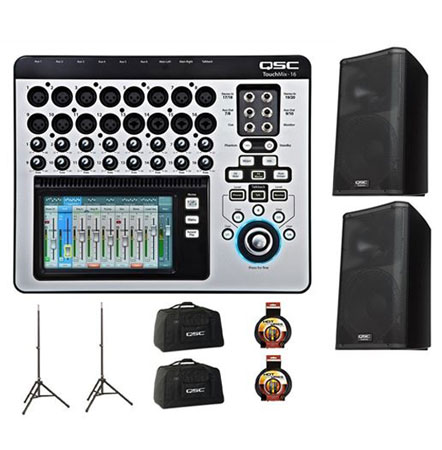

QSC Touchmix 16 and K12 Speaker Package Includes

• 1 - QSC Touchmix 16 Digital Mixer
• 2 - QSC K12 Powered Loudspeaker
• 2 - QSC K12 Tote Speaker Bag
• 2 - Ultimate Support TS80 Speaker Stand
• 2 - Hot Wires Microphone Cable

The QSC TouchMix-16 compact digital mixers are designed for musicians, production professionals and live performance venues that need the power and capability of a large concert mixing console in a compact, affordable and easy to use form. The TouchMix-16 mixer has the functionality to satisfy demanding professionals combined with a range of features and functions that help the less experienced user achieve quality results.

The TouchMix DAW Utility is available for free download from the QSC website!
The TouchMix DAW Utility is a software application for TouchMix owners who also use DAW (Digital Audio Workstation) software for music recording and production. It enables and simplifies two-way migration of digital audio wave files between TouchMix and DAW software. The TouchMix DAW Utility runs on Windows and Apple computers.

Features:

QSC TouchMix-16 Compact Digital Mixer Features

• 20 Full Function Inputs: 12 Mic,4 Mic/Line (XLR/TRS Combo), 2 Stereo Line (TRS), Talkback (XLR), USB 2-track
• Outputs: 6 Aux (XLR), 2 Stereo (TRS), Main R/L (XLR), Cue (TRS), Monitor (TRS)
• TRS Aux outs drive wired In Ear Monitors (IEM) directly
• 4-band full parametric EQ, variable high-pass and low-pass filters on all input channels
• Gate and compressor on all input channels
• 4 professional quality stereo DSP effects plus a pitch corrector
• 1/3 octave graphic equalization, limiters, delay and notch filters on main and aux. outputs
• 8 DCA and 8 Mute groups
• Color, capacitive touch screen graphical user interface combined with hardware controls for fast and intuitive operation
• Wizards, info and preset libraries assist the user with channel setup, effects selection and more
• Direct to hard-drive recording and playback of multi-track wave files. Capable of recording all input channels plus a user-selected stereo output pair
• Remote Control via iOS and Android. Wi-Fi interface included

The QSC TouchMix Series represents a breakthrough in innovation and digital mixer design - the result of a remarkable collaboration between QSC and industry icons Greg Mackie and Peter Watts (M&W Pro Audio Ltd.) TouchMix not only resets the bar for performance and value, but also redefines the user experience for both professionals and novices alike.

Specification

QSC TouchMix-16 Compact Digital Mixer Specifications

• Display: 6.1 x 3.5 inches (156x90mm) color TFT, touch sensing
• Inputs: 20 Total
• 4, XLR/TRS combination
• 12, XLR
• 2 Stereo, 1/4 inch TRS
• Input (Talkback): 1, XLR
• Outputs:
• 2 Main, XLR, Line
• 6 Aux, XLR, Line
• 2 Stereo TRS (Line or In Ear Monitor)
• 1 Stereo Monitor, TRS, (Line or headphone)
• 1 Stereo Cue TRS (Line or headphones)
• Mic/Line Input Channel Processing: 4-band, parametric EQ with Hi/Low shelving option, variable 24db/octave HPF and LPF, Gate, Compressor
• 2-Track (USB) and FX Return Processing: 2-band shelving EQ, variable 24db/octave HPF, Gate, Compressor
• Output Channel Processing:
• Main Outputs and Auxes: 1/3 octave GEQ, Variable HPF and LPF, 4-band variable notch filters, Limiter
• Auxes 7/8 and 9/10: 4-band PEQ, Limiter
• Recording: 20 tracks, requires USB 3.0 HD, minimum 7800 RPM
• Groups: 8 DCA groups (with mutes), 8 Mute groups
• Cue: Input cue priority, AFL, PFL, Solo In Place
• Effects:
• 4 professional effects engines including reverb, echo, delay, chorus. 50 factory, 50 user presets
• 1 Pitch Correct (assignable to any mono input channel)
• Preset Memory:
• Mixer Preset: Factory and User mixer presets including all mixer parameters may be stored internally or loaded to / from USB
• Channel Preset: User channel presets may be stored internally or loaded to / from USB
• External Control: iOS mixer app for iPad, control via Wi-Fi provides access to all mixer functions
• Wi-Fi: USB Wi-Fi adapter included
• Line Voltage Requirements: 100 VAC - 240 VAC, 50 - 60 Hz
• Sampling Frequency: Selectable 44.1kHz or 48kHz
• Internal Processing: 32-bit floating point
• Frequency Response: 20 Hz - 20 kHz +/-0.5 dB, any input to any output
• Dynamic Range: 105dB
• Equivalent Input Noise: -128dBu
• Residual Output Noise: -86dBu
• Crosstalk: -80dB
• S/N Ratio: -94dB
• Maximum Input Level: +16dB (Mic inputs), +22dB (Line inputs)
• Phantom Power: 48V, individually switchable per channel
• Dimensions (HxWxD): 3.5 x 14.2 x 11.7 inches (89x360x297mm)
• Weight: 5.9 lb (2.98 kg)
• Included Accessories: USB WiFI adapter, Soft Carrying Case, Power Supply
