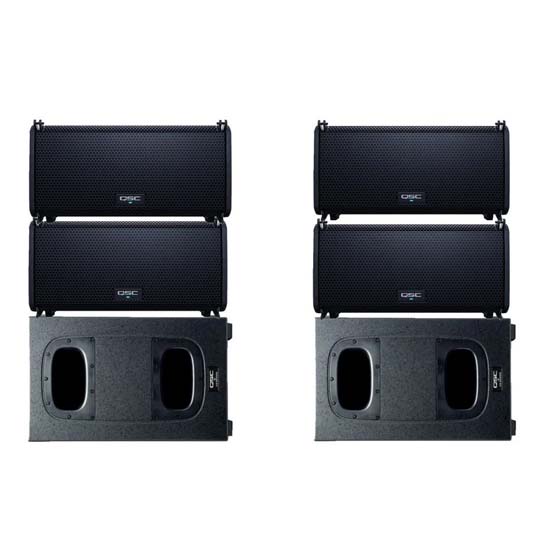

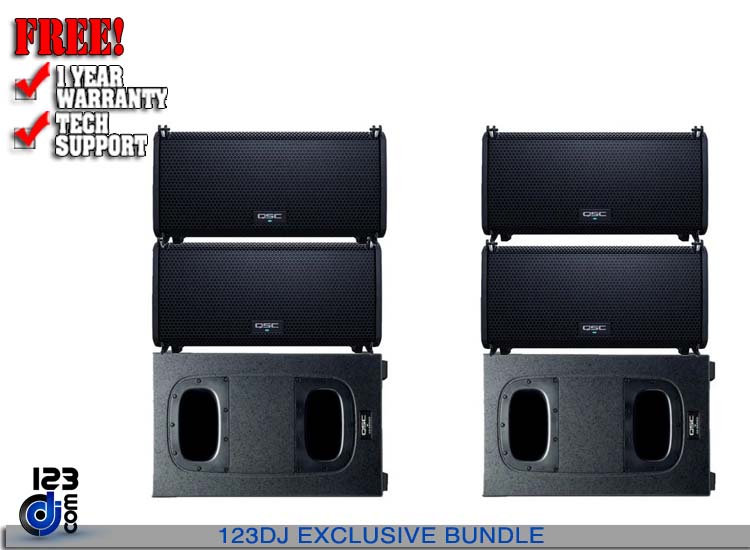

QSC LA108 (4) KS212C (2) Ground Bundle

4x 8" L-Class Ground Stack Bundle with 2x KS212C Subs

QSC LA108 Powered Line Array Loudspeaker 8-inch 2-way

The LA108 is a next-generation, intelligent, active line array loudspeaker featuring a brilliant combination of leading-edge innovation, refined engineering and unparalleled ease of use in an easy-to-deploy package.

Delivering extraordinary audio experiences and exceptional performance via system intelligence and premium components, the LA108 is the result of a deep understanding of customer needs and application requirements. The LA108 is easy to configure and deploy for applications ranging from simple, portable, plug-and-play setups, to demanding, networked, high-tech AV productions and fixed installations. Solo entertainers, installers and production companies will value its intuitive splay angle adjustment and array optimization, as well as its flexible interoperability with networked audio systems (Dante®).

Deployed using dedicated array frame, ground-stacked (array frame combined with optional sub-stack adapters), or mounted using loudspeaker stand/pole, the LA108 loudspeaker also features daisy-chain connections for analog, digital audio and AC power (PowerCON TRUE1).

Features

• Purpose-designed, lightweight neodymium 8-inch (203 mm) woofer and 1.75-inch (44 mm) HF compression driver, delivering high, undistorted 134 dB max. peak SPL.
• Energy efficient, 1300 W peak power Class D amplifier module with Power Factor Correction and extremely low AC consumption.
• Innovative QSC LEAF™ (Length-Equalized Acoustic Flare) waveguide provides defined, uniform coverage (100° H x 15° V) and exceptional throw.
• Intuitive, single operator QSC RapidDeploy™ rigging technology with short, medium and long-throw options, guarantees fast deployment without tools or additional hardware.
• Onboard QSC AWARE™ (Automatic Wireless Array Recognition) system intelligence communicates essential setup information to the user via any loudspeaker's Rear User Interface (RUI) or QSC System Navigator™ App.
• QSC SysNav™ (System Navigator) App allows the user to easily design, configure, control, monitor and apply signal processing to individual loudspeakers, full arrays or groupings of both. The AIM (Array Installation Modeling) prediction tool lets the user visualize array coverage by positioning virtual loudspeakers and arrays in a scaled, graphical model of a venue or installation space.
• Acoustic Linear Phase (ALP) design provides complementary coherence between QSC loudspeakers deployed in the same audio system delivering a uniform listening experience across the entire venue.
• Network solution includes digital audio-over-IP (Dante®) for interoperability with other audio equipment and seamless control and monitoring integration into the Q-SYS Ecosystem via Q-SYS Inventory Extensions.
• Flown (up to six units with array frame), ground-stacked (up to four LA108 over a single LS118 subwoofer) or loudspeaker stand/pole mounting (up to three LA108) deployment options.
• Industry-best global 6-Year Extended Warranty with product registration.

Specifications

• Configuration Two-way active line array loudspeaker
• LF Transducer 203 mm (8-inch), cone
• HF Transducer 44 mm (1.75-inch), compression driver with Polyimide diaphragm
• Frequency Response (-6 dB) 62 Hz - 20 kHz
• Frequency Range (-10 dB) 57 Hz - 20 kHz
• Nominal Coverage Angle 100° H x 15° V
• Maximum Rated SPL1 (peak) 134 dB @1 m
• Amplifier (peak) Class D, LF 1000 W / HF 300 W
• Cooling Convection cooling
• Controls Rotary push encoder
• 2 x Push buttons (Menu, ID)
• Display Screen 61 mm (2.4-inch) Full color display area (240 x 320 pixels)
• Indicators Power LED
• Limiter active LED
• Standby active LED
• 2 x Signal LED
• Connectors XLR Female (Analog In)
• XLR Male (Analog Thru)
• 2 x RJ45 EtherCON (Dante® and QSC SysNav™ In/Thru)
• 2 x PowerCON TRUE1 (AC Power Inlet/Outlet)
• AC Power Input Universal power supply 100 - 240 VAC, 50 - 60 Hz
• AC Power Consumption2 100 VAC, 0.8 A / 120 VAC, 0.75 A / 230 VAC, 0.5 A
• Enclosure Material Impact Resistant ABS
• Attachment Points QSC RapidDeploy™ rigging system
• 1x M10 (on rear panel for pull-back)
• Color Black (RAL 9011)
• Grille 18 GA Powder coated steel
• Dimensions (H x W x D) 272 x 519 x 374 mm
• 10.7 x 20.4 x 14.7 inches
• Net Weight 13.7 kg (30.1 lb)
• Shipping Weight 17.1 kg (37.6 lb)
• Supplied Accessories 1 x PowerCON TRUE1 power cable
• Regulatory UL, CE, FCC Class B

QSC KS212C Description

The KS212C subwoofer represents the world's first-in-class single-box powered cardioid subwoofer solution for highly portable entertainment and installation applications.

A breakthrough in innovation and design, the 3,600 Watt KS212C subwoofer uniquely provides all the benefits of cardioid deployment in a single, compact enclosure. "Keeping bass in its place" for mobile entertainers, AV production and rental professionals, as well as modestly-sized performance venues, the KS212C subwoofer is unparalleled in its ability to manage low frequencies on the stage, or any application where undesirable low frequency energy needs to be minimized.

Features

• 3600 Watt Class D power module
• Dual 12-inch long excursion drivers; Dual 6th order band-pass design
• 15 dB SPL attenuation front-to-rear
• Two M20 threaded sockets (one on top, one on side) accept 35 mm speaker pole
• Four low-noise, heavy-duty casters
• HxWxD = 24.5" x 15.5" x 33.5" (622 x 394 x 851 mm)
• 88.5 lbs (40.1 kg)

Powered by a 3,600 Watt Class D amplifier, processed with the latest DSP technology, and featuring dual 12-inch long excursion drivers each arranged in a 6th order bandpass chamber, these components all combine seamlessly to produce a staggering 15 dB more output at the front of the cabinet than at the rear. Highly portable, the cabinet features comfortable, aluminum handles and four, rear-mounted casters. Two M20 sockets accept a 35mm speaker pole in other horizontal or vertical orientation.

Specification

• Configuration Dual 6th-order bandpass cardioid subwoofer
• LF Transducer 2 x 12" (305 mm), cone
• Frequency Response (-6 dB) 44 Hz - 104 Hz
• Frequency Range (-10 dB) 39 Hz - 118 Hz
• Nominal Coverage Angle 180° Cardioid (15dB rear rejection @ 70Hz)
• Maximum Rated SPL1 132dB @1m, peak
• Amplifier Class D
• 2 x 1800W (peak)
• Cooling Low-noise, variable speed fan
• Controls: Power
  Gain
  Rotary encoder
  2 x selection buttons
• Indicators 2 x Power LED (front and rear)
  Input Signal LED
  Limiter active LED
• Connectors 2 x locking XLR/F 1/4" combo
  2 x XLR/M (Loop-thru Output)
  1 x locking IEC power connector
• AC Power Input Universal power supply 100 - 240 VAC, 50 - 60 Hz
• AC Power Consumption 1/8th power

Enclosure Details

• Enclosure 18mm birch plywood
• Color Black (RAL 9011)
• Grille Internal woofer cover
• Dimensions (HWD) inches 24.5" x 15.5" x 33.5"
• Dimensions (HWD) mm 622 mm x 394 mm x 851 mm
• Net Weight 40.1 kg (88.5 lbs)
• Shipping Weight TBD
• Regulatory CE, WEEE, UL, CHina RoHS, RoHS II, FCC Class B
• Optional Accessories KS212C Cover, KS-LOC Lock-Out Cover
• SP-16X Extension Pole

This Package Includes:

• (4) QSC LA108
• (2) QSC KS212C
