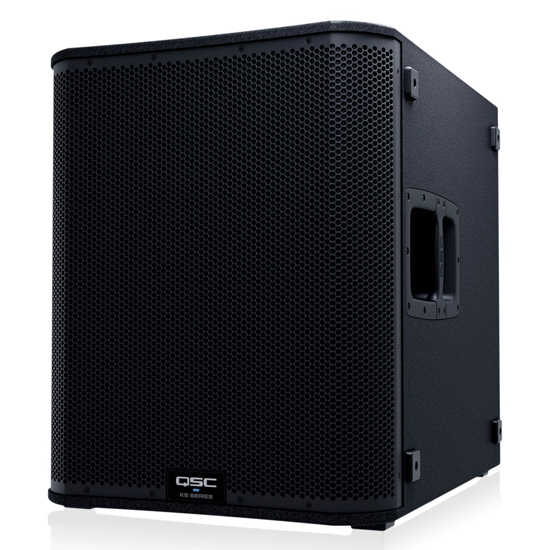

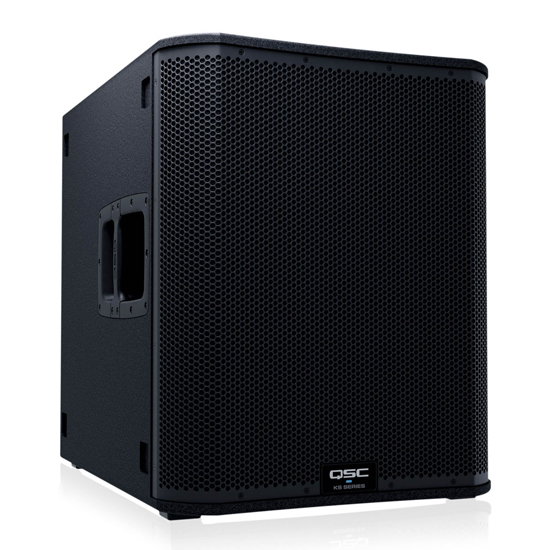

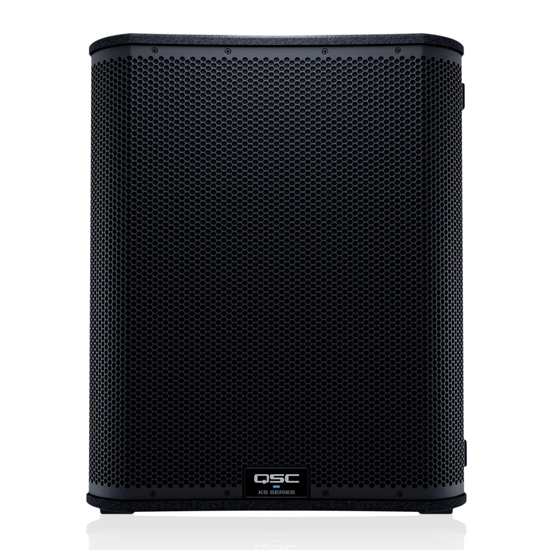

QSC KS118 Powered Subwoofer Stage Package

About This Product

The KS118 is a very high output active subwoofer producing impressive low frequencies for mobile entertainment, AV production, clubs and performance venues. Featuring an 18-inch direct radiating driver powered by a 3600 Watt Class D amplifier, the KS118 delivers high sound pressure levels with dynamic and musical sound reproduction of very low frequencies.

On-board DSP optimizes and protects system performance as well as offers advanced capabilities such as the ability to array two units in a cardioid arrangement. Highly transportable, the rugged enclosure features comfortable handles and four low noise casters. An M20 threaded pole receptacle accepts a 35 mm pole for easy vertical deployment with full-range loudspeakers.

• 3600 Watt Class D amplifier module
• 18 inch (460 mm) long excursion direct
• Omni-directional or cardioid radiation modes (cardioid setup requires min. 2 units)
• Selectable DEEP™ mode for extremely low frequency extension
• Adjustable crossover and delay
• Scenes for commonly-used applications that can be saved/recalled
• Refined, professional and elegant appearance in any application
• Rugged painted wood enclosure for lasting durability
• Vertical or horizontal deployment (M20 threaded pole receiver for vertical setup)

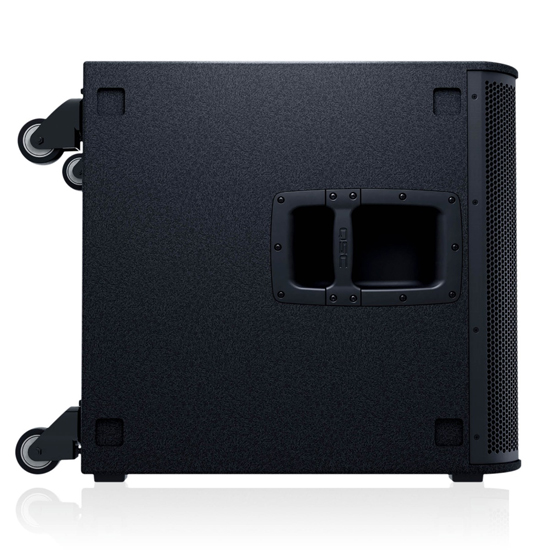

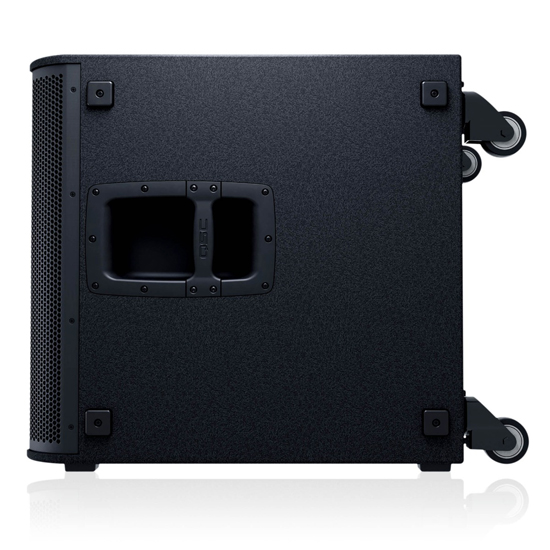

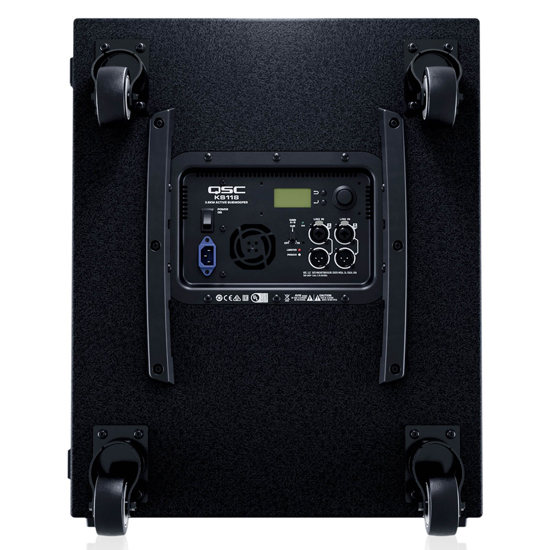

• Four low-noise, heavy-duty casters
• Optional transport cover, temporary weather cover, KS-LOC security cover and 35 mm loudspeaker pole accessories available
• 6-Year Warranty with product registration

Specifications

• Active/passive: Active
• Type: Direct-radiating subwoofer
• LF driver: 18"
• MF driver: Not applicable
• HF driver: Not applicable

• Amplifier class: Class-D
• Wattage: 3,600W peak
• Mixer/preamp: Not applicable

• Frequency response: 35Hz?111kHz
• Coverage pattern: Omnidirectional
• Max SPL: 136dB

• XLR: 2

• XLR: 2

• Cabinet material: 18 mm birch plywood
• Width: 20.5"
• Height: 25.2"
• Depth: 30.9"
• Weight: 104 lb.

QSC KS118-CVR Cover

A cover for the QSC KS118 Powered Subwoofer. This cover will keep your sub free from scratches and dings during transport to and from gigs. The handles remain accessible for easy lifting and an storage pocket is provided to hold your cables.

More and more pole mount subwoofers are hitting the market with M20 threaded pole mounts instead of the older 1 3/8" socket design. The advantage is obvious: no tilt and wobble! The SS7746 is designed for this new breed of subwoofers. Its all-steel shafts telescope from 30"-54", held tight with a friction locking knob backed up by a captive steel security pin. The lower shaft features 41 mm diameter steel tubing terminated with a zinc plated threaded lug. The upper shaft is sized to fit satellite speakers with standard 1 3/8" pole mounts.

Subwoofer Pole

• M20 threading eliminated wobble at subwoofer
• All-steel shaft telescopes from 30"-54"
• Captive steel security pin
• Zinc plated threaded lug
• Upper shaft is sized to fit satellite speakers with standard 1 3/8" pole mounts
• Shaft Length Adj.: 30"-54"
• Weight Capacity: 80lbs

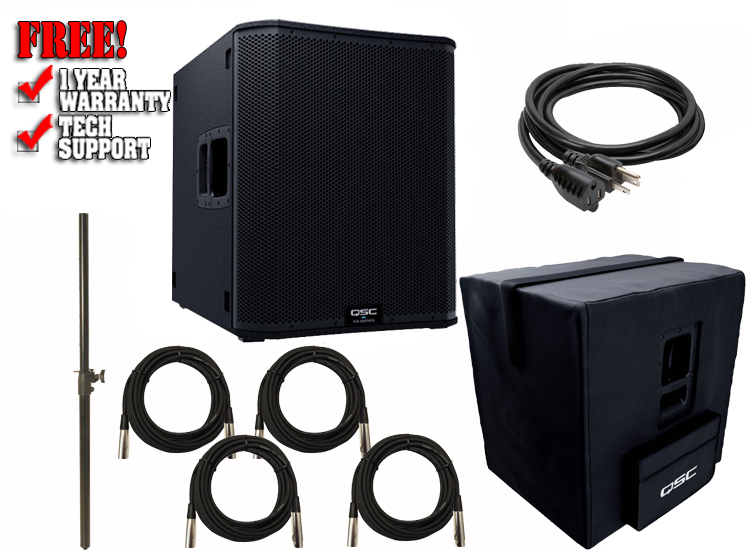

What's in the Box:

• (1) QSC KS118 Powered Subwoofer
• (1) QSC KS118-CVR Cover
• (1) Subwoofer Pole
• (4) XLR Connecting Cables
• (1) 15ft Power Extension Cable
