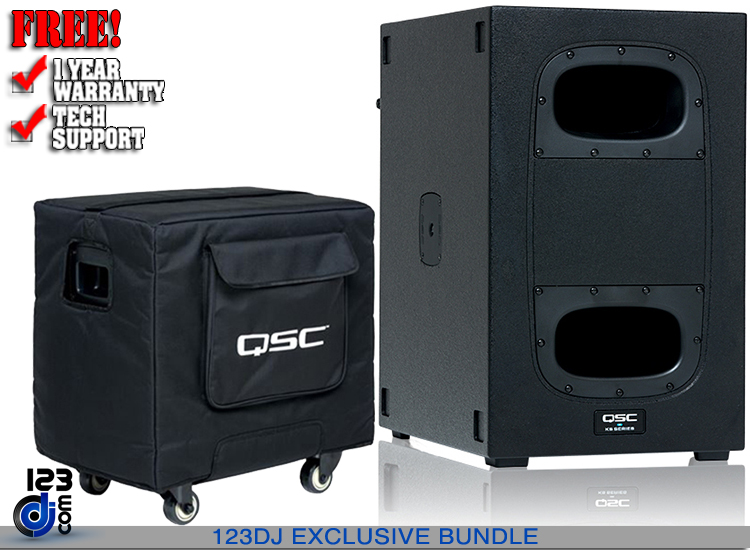

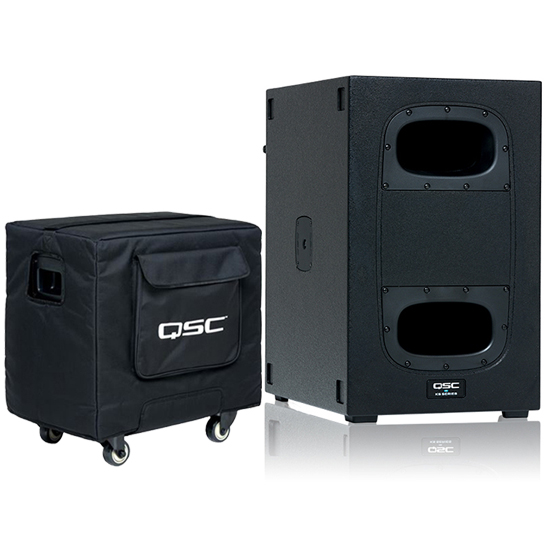

QSC KS112 and KS112-CVR Cover Bundle

QSC KS112 Description

The QSC KS112 is an ultra-compact powered subwoofer for installation and highly portable entertainment applications. The QSC KS112 is a highly portable, single 12-inch bandpass design subwoofer, powered by a 2000 watt peak power class D amplifier module. The cabinet is constructed of premium birch and includes high-quality, low noise casters.

Two M20 threaded pole receptacles are available for a positive, wobble-free connection to a threaded speaker pole in either vertical or horizontal deployment (pole not included).

Features

• High Output in an ultra-compact form factor
• 2000 Watt class D amplifier module
• 12-inch, long-excursion driver; 6th order bandpass design
• Variable crossover and savable/recallable scenes for commonly-used applications
• Intrinsic Correction^™ tuning and loudspeaker management
• Refined, professional appearance looks great in any application
• Rugged painted wood enclosure for long life and lasting durability
• Deployment in either vertical or horizontal positions with dual M20 speaker pole fittings
• Optional KS-LOC security cover prevents unauthorized tampering of controls
• Complete EASE & CAD information available online
• 6-Year Warranty*

Specifications

• Configuration : 6th-Order Bandpass Subwoofer
• LF Transducer : 12-inch (305 mm), Cone
• Frequency Response (-6 dB) : 41 Hz - 108 Hz
• Frequency Range (-10 dB) : 38 Hz - 121 Hz
• Maximum Rated SPL¹ : 128 dB @ 1 m (peak)
• Amplifier : Class D
  2000W (peak)
• Cooling : Low-noise, variable speed fan
• Controls : Power On/Off
  Gain Control
  Rotary encoder
  2 x selection buttons
• Indicators : 2 x Power LED (front and rear)
  Input Signal LED
  Limiter Active LED
• Connectors : 2 x locking XLR/F 1/4" combo
  2 x XLR/M (Loop-thru Output)
  1 x locking IEC power connector
• AC Power Input : Universal power supply 100 - 240 VAC, 50 - 60 Hz
• AC Power Consumption : 100 VAC, 2.4 A / 120 VAC, 2.0 A / 240 VAC, 1.3 A
• Enclosure Details
• Enclosure : 15 mm Birch Plywood
• Color : Black (RAL 9011)
• Grille : Internal woofer cover
• Dimensions (HWD) inches : 24.5 x 15.5 x 24.25
• Dimensions (HWD) mm : 622 x 394 x 616
• Net Weight : 28.4 kg (62.6 lbs)
• Shipping Weight 34.5 kg (76 lbs)
• Regulatory : CE, WEEE, UL, China RoHS, RoHS II, FCC Class B
• Included Accessories : 4 x Low-Noise, Heavy Duty Casters
• Optional Accessories : QSC KS112 CVR Transport Cover, KS-LOC Lock-Out Cover
  SP-16X Extension Pole, SP-36 Extension Pole

QSC KS112-CVR Weather Resistant Soft Padded Nylon / Cordura Cover

The KS112 cover protects your KS112 subwoofer from the elements and dings from transporting it. The KS112-CVR is a soft, padded cover made with weather resistant, heavy-duty Nylon/Cordura® material for your KS112 Sub with grille guard.

This Package Includes:

• (1) QSC KS112
• (1) QSC KS112-CVR
