QSC CP12 Package

With over 2000 Watts of Power, the CP12 Package offers Quality Sound at an incredible price tag. Includes all you need to rock your next event.

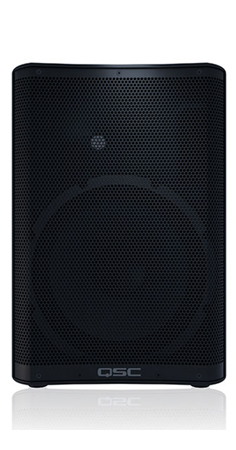

QSC CP12 Compact Powered Speaker

The QSC CP12 is a multipurpose loudspeaker suitable for portable or installed live-sound applications. Whether carting the speaker to gigs or installing it on stage as a vocal monitor, you'll find the monitor exhibits a powerful sound.

The monitor gives you the ability to mix up a mic/line input, a line input, and a music playback device, supplying a total of three inputs. Thus, the CP12 can function as your sole PA if you're an acoustic singer/songwriter playing anything from intimate clubs to menu-venue gigs. However, put the monitor on a speaker pole or yoke it to the ceiling, and you'll have secured a dependable element in your club's permanent PA system.

The QSC CP12 is capable of handling up to 1000W peak thanks to its Class-D amplifier, doing so through its 12" cone LF transducer and 1.4" HF compression driver. You can reach SPL values of up to 126 dB, and the construction of the monitors ensures an even frequency response from 49 Hz to 20 kHz.

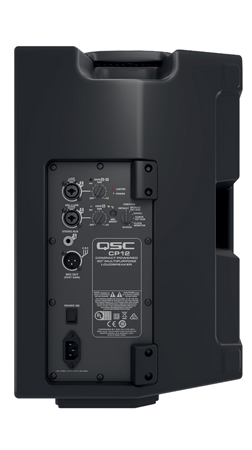

The rear panel offers controls sure to be useful to your practice, whether it's the one-touch 25 dB Mic Boost switch on input B, or the contour selector switch; the latter tailors the speaker's response to better suit common scenarios such as dance floor, speech address system, and floor monitor. These contours are made possible by the DSP system programmed into the device.

Finally, the unit is relatively compact and portable. It measures 20.3 x 13.8 x 12.7", and weighs 30.3 lb, making it easier to handle than many conventional live-sound monitors or instrument amplifiers.

Features

QSC CP12

• Compact and powerful performance
• 1000 Watt peak power Class-D amplifier module
• Easily selected contours for commonly-used applications
• Advanced DSP with Intrinsic Correction™ for superior sound quality and speaker protection
• Directivity Matched Transition™ (DMT) for consistent frequency response across the entire coverage area
• Light weight and highly portable
• Professional appearance looks great in any application
• Use for main PA, stage monitor, or instrument amplifier
• 35 mm pole socket
• Optional yoke, tote, and outdoor cover accessories
• Complete EASE and CAD information available online
• Lightweight and portable at 30.3 lb
• 3-Year Warranty*

Specification

QSC CP12

• Configuration 2-way active loudspeaker
• Transducers LF Driver: 12.0" / 305.0 mm, cone
• HF Driver: 1.4" / 35.6 mm, compression driver
• Frequency Response 49 Hz to 20 kHz at -6 dB
• 47 Hz to 20 kHz at -10 dB
• Nominal Coverage Angle 75°, axisymetric
• Max SPL 126 dB measured at 3.3" / 1.0 m with dynamic pink noise
• Amplifier Class Class-D
• Peak Power Output LF Driver: 800 W
• HF Driver: 200 W
• Controls Power, gain, mic boost, 6-way contour selector
• Indicators Power, input signal, input B microphone, limiter
• Connectors 2 x XLR-1/4" combination input (line input and mic/line input, locking)
• 1 x 3.5 mm TRS input
• 1 x XLR output (mix output)
• Enclosure Material Polypropylene
• Attachment M10 threaded insert
• Grille 18 Gauge powered coated steel
• AC Power Universal power supply, 100 to 240 VAC, 50 to 60 Hz
• AC Power Consumption 100 VAC, 0.75 A / 120 VAC, 1.0 A / 240 VAC 0.31 A (at 1/8 power)
• Dimensions (H x W x D) 20.3 x 13.8 x 12.7" / 516 x 350 x 323 mm
• Weight 30.3 lb / 13.7 kg

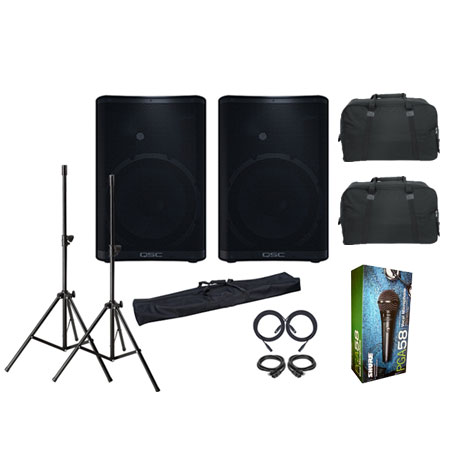

What's Included:

• (2) QSC CP12
• (2) Heavy Duty Speaker Stands
• Speaker Stand Bag
• (2) XLR to XLR 25ft
• Shure PGA58 Mic
