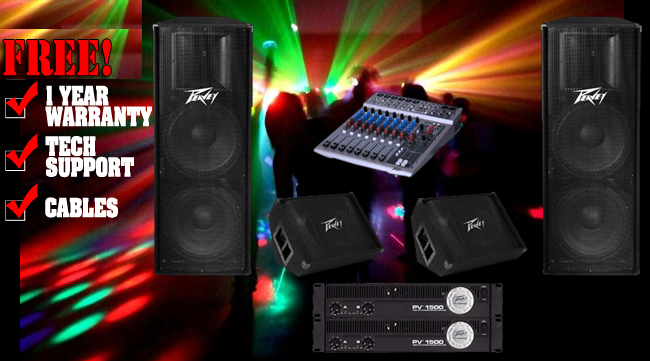

PV Band

Overview

• Two Peavey PV215 Speakers
  • 2-way trapezoidal sound reinforcement enclosures
  • 15 in. premium, 2-3/8 in. voice coil woofer
  • RX14 compression driver with a 1.4 in. titanium diaphragm 1 in. exit
  • 90 degrees x 40 degrees constant directivity horn
  • Tweeter protection
  • Heavy-duty crossover
  • Heavy-duty metal grille
  • Power: 700 watts program, 1400 watts peak
• Two Peavey PV12M Speakers
  • Two-way floor monitor
  • 500 W program power handling
  • 68 Hz to 17 kHz
  • 12" Sheffield Pro 1200+ woofer w/ 2.5" voice coil
  • 14XT compression driver w/ titanium diaphragm, 1" exit
  • 90 x 40 CD horn
  • Sound Guard IV tweeter protection
  • carpet covering
  • steel handle
  • Heavy duty metal grille
  • die-cast aluminum pole mount
  • 22.187" W x 16.25" H x 12.5" D     44 lbs
• Peavey PV10 Console Mixer
  • Built-in DSP effects processor
  • 6 RQ(TM) (reference-quality) low noise microphone inputs with insert points
  • Channels 7/8 and 9/10 w/ dual switchable stereo line inputs
  • 3-band EQ on all channels
  • LED clip, signal, mute indication
  • 1 pre-fader monitor send
  • 1 post-fader effects send
  • Precision 60 mm faders on input channels and stereo master outputs
  • Control room output
  • Global 48 volt phantom power, tape to control room and tape to mix assignments
  • Stereo outputs with 1/4" unbalanced and XLR balanced connectors
  • Rugged console design
  • Universal switching power supply
  • Weight Unpacked: 9.3
  • Width Unpacked: 12.125
  • Depth Unpacked: 14.75
  • Height Unpacked: 3.5
• Two Peavey PV1500 Amplifiers
  • Stereo mode: 4 ohms, 500 watts RMS x 2

  • Stereo mode: 8 ohms, 300 watts RMS x 2

  • Bridge mono mode: 4 ohms, 1500 watts RMS

  • Inputs: XLR, 1/4 inch and barrier strip

  • Detented input gain control

  • Binding post and Speakon output connectors

  • Seperate Speakon mono bridge output

  • Mode switch for stereo or bridge operation

  • Low-cut filter switch for 40Hz low cut filter

  • Built-in crossover with 150Hz switch

  • Thru/low output jacks and high output jacks

  • LED indicators for input signal, DDT and power

  • Peavey's famous DDT compression system

  • Total harmonic distortion: less than 0.03% 20Hz to 20kHz, 10dB below rated power in stereo mode, both channels driven

  • Frequency response: 20Hz to 20kHz

  • Damping factor: greater than 300

  • Hum and noise: 100dB

  • Rack spaces: 2
• ALL CABLES INCLUDED!!
