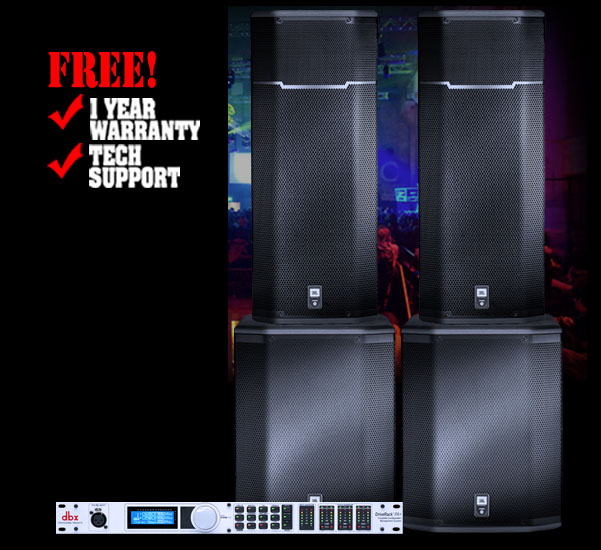

PRX Power Pack

Overview

• Two JBL PRX625 Active Speakers
  • System Type : Self-powered dual 15", two - way, bass - reflex
  • Maximum SPL Output : 139 dB peak
  • Frequency Range (-10 dB) : Flat: 40 Hz – 19.5 kHz
  • Boost: 39 Hz – 19.5 kHz
  • Frequency Response (±3 dB): : Flat: 55 Hz – 17.5 kHz
  • Boost: 50 Hz – 18 kHz
  • Coverage Pattern : 90° x 50° nominal
  • Amp Design : Crown® Class D
  • Power Rating : 1500 W ( 3 x 500 )
  • Dimension (H x W x D) : 41.47 in x 16.71 in x 16.27 in
  • Net Weight : 27.2 kg (60 lb)
  • Maximum SPL Output 135db peak
  • 2 x 380 mm (15 in) Differential Drive® dual voice-coil and magnetic gap, neodymium woofers
  • 37.5mm (1.5 in) annular polymer diaphragm, neodymium compression driver
  • 1500 Watt (3 x 500 watt) Class-D, Crown® digital amplifier
  • DSP input section with dbx® Type IV™ limiter circuit, crossover, dynamic limiting, component optimization, selectable system EQ
  • Professional XLR line and ¼" Mic/Instrument inputs, with loop through
  • Obsidian DuraFlex™ coated plywood construction
  • Large die-cast aluminum handle bar with a fine tuned ergonomic rubber grip for maximum comfort
  • 8 M10 Suspension points and 1 pullback point
  • If a simple set-up is required and full bandwidth output at high levels is a must, then the PRX625 is most likely the optimum solution. With the same foot print as the PRX515M, the dual 15" woofer design creates enough low frequency content to serve most live music or music playback situations. When coupled with a PRX subwoofer (or multiple subwoofers) the system becomes a high volume sound reinforcement solution, perfect for regional tour companies and AV Rental companies looking for a scalable, easy to employ audio solution. We recommend using the PRX618S-XLF in conjunction with the PRX625 as the extended low frequency capabilities of the subwoofer compliment the frequency response of the PRX625.
  • For live music, recorded music playback and speech the user has the option of tailoring the EQ, 'flat' for speech intelligibility and 'boost' for enhanced bass and crisp highs in recorded music playback. A microphone can be directly connected to the speaker input for quick on-the-fly PA applications.
  • The PRX625 is a self-powered, lightweight two-way loudspeaker system capable of delivering a very high level of performance over a broad bandwidth. The PRX625 is comprised of two 380 mm (15 in) 265F Differential Drive® woofers, a 2408H-1, 37.5mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 90° by 50° horn, all driven by a multi-channel Crown® Class-D power amplifier. A propriety DSP chip is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.
  • The amplifier input panel offers XLR or ¼ inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and overload lights indicate the system status and assist in setting the optimum level, via the level control knob.
  • All PRX600 cabinets are built from a combination of 25mm (on the top and bottom for added rigidity) and 18mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX600 Series cabinets are protected by JBL's tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of 1000 lbs. each.
• Two JBL PRX618s-XLF Active Subwoofers
  • System Type : Self-Powered 18", bass - reflex
  • Maximum SPL Output : 133 dB peak
  • Frequency Range (-10 dB) : 30 Hz – 105 Hz
  • Frequency Response (±3 dB) : 39 Hz – 93 Hz
  • Polarity : Normal or reverse polarity
  • Crossover Frequency : 90 Hz
  • Amp Design : Crown® Class D
  • Power Rating : 1000 W ( 2 x 500 )
  • Dimension (H x W x D) : 685.8 mm x 530.9 mm x 716.3 mm ( 27.0 in x 20.9 in x 28.2 in )
  • Net Weight : 37 kg ( 81.5 lb )
  • Maximum SPL 133 db peak
  • 460mm (18 in) Differential Drive® dual voice-coil and magnetic gap, neodymium woofer
  • 1000 Watt (2 x 500 watt) Class-D, Crown® digital amplifier
  • DSP input section with dbx® Type IV™ limiter circuit, crossover, dynamic limiting, component optimization, selectable system EQ
  • Professional XLR line and ¼" Mic/Instrument inputs, with loop through
  • Obsidian DuraFlex™ coated plywood construction
  • Top panel M20 pole mount socket for sub/satellite configuration
  • Large die-cast aluminum handle bar with a fine tuned ergonomic rubber grip for maximum comfort
  • The PRX618S-XLF, extended low frequency subwoofer was designed and engineered to provide sub bass frequencies with accuracy and power. Used as a single sub in a sub/sat system or in multiples as part of a scalable, large format sound reinforcement system, the PRX618S-XLF performs with extreme efficiency and control. The subs are stackable and light-weight ensuring quick set-ups and tear-downs. And due to their rugged construction are perfect for AV rental inventories. With a pole receptacle (that accepts a SS4-BK or SS4-BK24) on the top panel and integrated stereo pass-thru this is the most powerful low-frequency complement to the PRX full-range systems. The addition of a polarity reverse option further enables system optimization.
  • The PRX618S-XLF is a high performance self-powered subwoofer system. The PRX618S-XLF is comprised of a powerful 2268FF Differential Drive® dual voice-coil and magnetic gap, neodymium woofer driven by a 1000 Watt (dual 500 watt) Crown Class-D power amplifier. Dual-Bridge Technology™ directly links discrete amplifier channel outputs to each voice coil in the Differential Drive woofer. Electrical power transfer to the transducer is optimized for more power performance. A proprietary DSP chip is at the core of a fully featured input section, providing user selectable cross-over functionality, polarity optimization, protection, dynamic limiting and discrete component optimization.
  • The amplifier input panel offers stereo inputs with XLR or ¼ inch jack compatibility. A user selectable crossover ensures a smooth transition to full-range system connected to the stereo outputs. Signal present and limiter lights indicate the system status and assist in setting the optimum level, via the level control knob.
  • All PRX600 cabinets are built from a combination of 25mm (on the top and bottom for added rigidity) and 18mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX600 Series cabinets are protected by JBL's tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability.
• dbx DriveRack PA+
  • Setup Wizard Steps Through Speaker and amp Selection and Levels

  • Auto-EQ Wizard with 28-Band RTA Tunes Your System For The Venue
  • Auto-Level Wizard Balances Your System
  • AFS Wizard Helps Eliminate Feedback
  • Stereo Feedback Elimination with 12 feedback notch filters

  • dbx 120A Sub-harmonic Synthesizer

  • Classic dbx Input Compression

  • JBL Speaker and Crown Power Amp Tunings within The Setup Wizard

  • USB Firmware and Speaker Tunings Field Updatable with Harman HiQnet System Architect

  • Front-Panel Output Mutes

  • Pink Noise Generator (used with Auto-EQ and Auto-Level Wizards

  • Linked Stereo DSP Processing for ease of use

  • 24-Bit ADC/24-Bit DAC, >113 dB Dynamic Range

  • 2-Channel XLR Input and 6-Channel XLR Output

  • 2x3, 2x4, 2x5, 2x6 Crossover Configurations

  • Dual 28-band Graphic EQ-Linked or Dual Mono

  • Stereo Multi-band Parametric EQ

  • Stereo Output Limiters

  • Output Alignment Delay

  • Power on/off Mute Circuitry

  • Front-panel RTA-M XLR input with phantom power
  • 25 User Programs/25 Factory Programs

  • Full Graphic LCD Display

  • Front Panel Input and Output Meters
• All Cables Included
