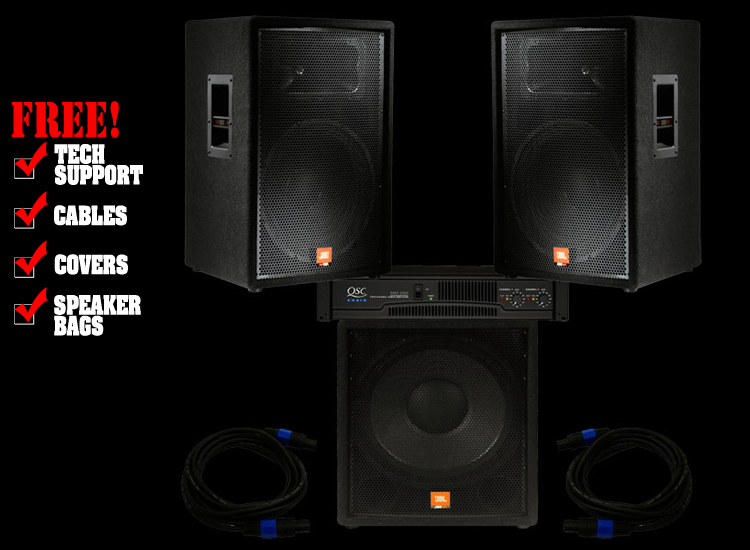

JRX2450

Overview

• Two JBL JRX115 Speakers
  • System Type: 15" 2-way, sound reinforcement speaker.
  • Sensitivity (1w/1m): 98 dB SPL
  • Nominal Impedance: 8
  • Peak Power Capacity:1 1000 watts
  • Maximum SPL: 128 dB
  • Nominal Dispersion: 90° x 50°
  • Crossover Frequency: 1.6 kHz
  • Dimensions (H x W x D):3 699 mm x 460 mm x 432 mm (27.5 in x 18.1 in x 17 in)
  • High Frequency Driver: JBL 2412, 1" exit compression driver mounted on Progressive
  • Transition™ Waveguide
  • Low Frequency Driver: JBL M115-8A
  • Input Connectors: Parallel Neutrik® Speakon® NL-4 (x1); ¼" TS phone jack (x1)
  • Enclosure Construction: 19 mm (¾ in) MDF (Medium Density Fiberboard); with glued and mechanically fastened joint detail; covered in black carpet.
  • Grille: 18-gauge, powder-coated steel
  • Mounting & Suspension: 35 mm, cast aluminum pole-mount socket
• One JRX118SP Subwoofer
  • The JBL JRX118SP powered subwoofer incorporates a specially designed amplifier with 500 watts peak and 300 watts continuous power output into the same driver as the non-powered version. It offers a built-in stereo crossover network and peak limiter to protect the amplifier and speaker from clipping. The JRX118SP is designed with a JBL 18" woofer with a cast frame and 3" voice-coil. It incorporates a sophisticated, advanced network topology design to ensure quality performance. To minimize distortion due to coil saturation, heavy gauge wire is used for inductors and SonicGuard high-frequency driver protection guards against damage caused by inadvertent overpowering of the system. It features 1/4" and speakon connectors. THe JRX118S is constructed of carpet-covered 3/4" MDF - a material that is structurally and acoustically superior to the particle board that is used by many competitive products. To ensure durability, JBL constructs these enclosures with advanced adhesives and closely mechanically spaced fasteners, while competitive systems typically rely on glue. Non-resonant, all metal handles are used and an 18 gauge, full metal grill protects the drivers. And of course, it's passed JBL's 100-hour full rated-power torture test.

  • 18" portable subwoofer system with cast frame
  • 3" voice-coil woofer
  • Built-in amp with 500 watts peak
  • Stereo crossover network and peak limiter
  • 1/4" phone and dual Neutrik speakon inputs
  • Carpet-covered enclosure
  • 3/4" MDF construction
  • 18 gauge steel grill
  • 35mm pole mount socket
  • Steel handles
  • Size: 23" x 20" x 22"
• QSC RMX2450 Amplifier
  • 4 Ohms: 750 W
  • 2 Ohms: 1200 W
  • 8 Ohms Bridged Mono: 1500 W
  • 4 Ohms Bridged Mono: 2400 W
  • Current Consumption: 10 Amps
  • Distortion (Typical):
    20 Hz-20 kHz: 10 dB below rated power Less than 0.03% THD 4 and 8 ohms
    1.0 kHz and below: full rated power Less than 0.03% THD 4 and 8 ohms
  • Frequency Response: 20 Hz-20 kHz, +/- 1 dB, -3 dB points: 5 Hz-50 kHz
  • Damping Factor, 1 kHz and below: Greater than 300 at 8 ohms
  • Input Impedance: 10 k ohms unbalanced, 20 k ohms balanced
  • Input Clipping: 10 Vrms (+22 dB)
  • Cooling: Continuously variable-speed fan, rear-to-front air flow
  • Connectors, each channel
    Input: Active balanced; barrier strip, XLR and 1/4 in. (6.3mm) TRS tip and XLR pin 2 positive
    Output: touch-proof binding posts and Neutrik Speakon
  • Controls
    Front: AC switch, Ch. 1 and Ch. 2 gain knobs
    Rear: 10-position DIP switch
  • Indicators
    Power On: Green LED
    Signal: Yellow LED, 1 per channel
    Clip: Red LED, 1 per channel
  • Amplifier Protection:
    Full short circuit, open circuit, thermal, ultrasonic, and RF protection
    Stable into reactive or mismatched loads
    Load Protection: On/off muting, AC coupling (850, 1450), triac crowbar (2450, on each channel)
• FREE Speaker Stands
• All cables included
